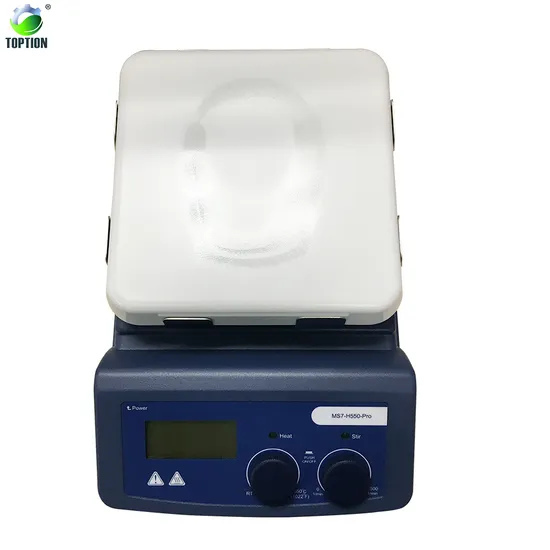

Laboratory Hot Plate Magnetic Stirrer for Pharmaceutical, Magnetic Mixer of High Speed
| US$450.00-498.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MS7-H550-Pro mini magnetic stirrer
Application Area
Chemical, Pharmaceutical
Certification
CE, ISO, GOST, SONCAP, CCC, API, CE, ISO
Condition
New
Mixing Drum Shape
Disc
Speed Range
100-1500rpm
Stirring Type
Diving
Type
Magnetic Stirrer, Hot Plate
Warranty
One-Year
Working
High Speed Mixer
Customized
Customized
Structure
Desktop
Material
Stainless Steel
Work Plate Dimension
184X184mm (7 Inch)
Work Plate Material
Glass Ceramic
Motor Type
Brushless DC Motor
Motor Rating Input
18W
Motor Rating Output
10W
Power
1050W
Heating Output
1000W
Max. Stirring Quantity[H2O]
20L
Stirring Positions
1
Max. Magnetic Bar[Length]
80mm
Heating Temperature Range
Room Temp.-550degree
Over Temperature Protection
580degree
External Temperature Sensor
PT1000
Mixer Type
Agitator
Layout Type
Horizontal
Operating type
Continuous Operating
Transport Package
Hard Carton Packing
Specification
20L
Trademark
TOPTION
Origin
China
HS Code
8479820090
Production Capacity
30000PCS/Year
Product Description
Product Description20L Magnetic Stirrer With Heating 550 Degree Centigrade
• LCD display for precise monitoring of speed and temperature
• Built-in PID controller ensures safe heating of the medium with overheating protection
• Max. heating plate temperature 550°C
• Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
• External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.2°C
• Digital speed controlling, max. speed at 1500rpm
• Outstanding brushless DC motor enables more stirring power
• Two rotating knobs enable easy adjustment of speed and temperatureL
• The "HOT" warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
• Remote function provides PC control and data transmission
| Specifications | MS7-H550-Pro |
| Work plate Dimension [W x D] | 184x184mm (7 inch) |
| Work plate material | Glass ceramic |
| Motor type | Brushless DC motor |
| Motor rating input | 18W |
| Motor rating output | 10W |
| Power | 1050W |
| Heating output | 1000W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity, [H2O] | 20L |
| Max. magnetic bar[length] | 80mm |
| Speed range | 100-1500rpm resolution ±1rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room Temp.-550°C,increment 1°C |
| Temperature control accuracy | ±1 °C (<100°C) ±1%(>100°C) |
| Overheating protection | 580°C |
| Temperature display accuracy | ±0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2) |
| "Hot" warning | 50°C |
| Data connector | RS232 |
| Protection class | IP21 |
| Dimension [WxDxH] | 215x360x112mm |
| Weight | 5.3kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
