CE Approved Automatic Drivable Boom Lift Hydraulic Boom Lift for Aerial Work

Product Description

Diesel/Battery High End Self Propelled Boom Lift
Introduction:
SAGA FIRST Articulating Boom Lifts are divided into two types:electric drive and diesel drive ,with maximum working height from 12m to 41m. Our main components are from international well-known brand. Our electric powered boom lifts have the DC battery power, which can be worked quietly suitable for indoor use. Manual emergency descending system which can let the machine work normally when the power is cut off. Our diesel powered boom lifts have the weighting device with patented technology which can accomplish the exact weighing for the platform load, safety and reliability, anti mal-operation function to avoid the engine restart in starting status and suitable for outdoor use.
Product Features and Advantange:
1. Complete Safety Devices: Standard four-link weighing devices; measures such as overload protection, automated detection device for detecting platform amplitude and height, automatic control of the movement speed and traveling speed of the boom, and high-precision weighing devices, to ensure the safety and stability of operation in all directions.
2. Control box:Full proportional control handle and CAN bus as well as PLC control system with high positioning accuracy are easy to be controlled and can be operated by the users at will.
3.Traveling System:The closed running system consisting of electro-proportional variable pump, hydraulic control variable motor and flow distribution valve can gain relatively high movement speed and relatively low and stable running speed. The system works efficiently and generates less heat.
4. Hydraulic System: Closed running system, speed easily to be adjusted, wide speed range; the boom's hydraulic system adopts double valve core circuit, which enhances the safety. The hydraulic components adopt European and American pure brands.
5. 360° wide working range
Specifications:

Model Type	SPABL-14D	SPABL-16D	SPABL-18D	SPABL-20D
Working Height Maximum	16.2m	18m	20m	21.7m
Platform Height Maximum	14.2m	16m	18m	20m
Working radius maximum	8m	9.5m	10.8m	11.7m
Lift capacity	230kg
Length( stowed)	6.2m	7.7m	8.25m	9.23m
Width (stowed)	2.29m	2.29m	2.35m	2.35m
Height(stowed)	2.38m	2.38m	2.38m	2.39m
Wheel base	2.2m	2.4m	2.6m	2.6m
Ground clearance	430mm	430mm	430mm	430mm
Platform measurement	1.83*0.76*1.13m	1.83*0.76*1.13m	1.83*0.76*1.13m	1.83*0.76*1.13m
Tuning radius (inside)	3.0m	3.0m	3.0m	3.0m
Tuning radius (outside)	5.2m	5.2m	5.2m	5.2m
Travel speed(stowed)	4.2km/h
Travel speed(raised or extended)	1.1km/h
Grade ability	45%	45%	45%	40%
Solid tire	33*12-20
Swing speed	0~0.8rpm
Turntable swing	360° Continuous
Platform leveling	Automatic leveling
Platform rotation	±80°
Hydraulic tank volume	100L
Total weight	7757kg	7877kg	8800kg	9200kg
Control voltage	12V
Drive type	4*4 (All-Wheel-Drive)
Engine	DEUTZ D2011L03i Y(36.3kw/2600rpm)/Yamar(35.5kw/2200rpm)

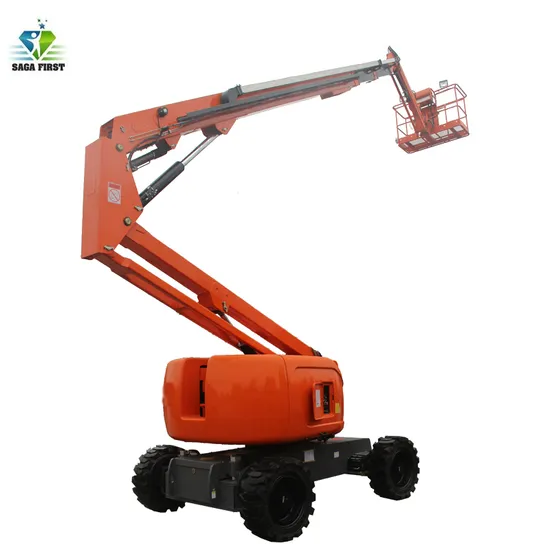

Articulated Boom Lift Pictures:
Our Service: 1.We can design the customerized Articulated boom lift as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the Articulated boom lift break down to help you repair.
6.Parts of Articulated boom lift can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The Articulated boom lift adopt most of the common parts of hardware.You can buy the parts in your local hardware market.
2.How can customer repair the Articulated boom lift.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breask down within one year,we can send the parts free of charge to you.
