Plastic Granule Vertical Mixer Machine

Product Description

Plastic Pellet Lift Dryer Product Description
When ordinary dryers dry, the raw material is static, the hot air does not penetrate sufficiently, in the local heat, the raw material is easy to clump, causing blockage, can not achieve the effect of comprehensive drying. The design of this machine is a two-stage spiral fast conveying, the first stage will quickly pass the raw materials into the barrel, the second stage and then the raw materials will be quickly lifted to the upper end of the barrel in the form of umbrella flying scattered, while the hot air is blown out from the lower centre of the barrel to the surrounding, smoothly from the gap in the moving raw materials from the bottom up to penetrate the raw materials for a comprehensive heat exchange dynamic drying process.
As the raw material keeps tumbling in the barrel, the hot air keeps being transported from the centre to achieve simultaneous mixing and drying, saving time and energy. If no drying is required, the drying switch is switched off and the mixer function is used. The machine is also suitable for mixing granules with crushed materials and masterbatches.
Main Features

Vertical design, easy to control, easy to maintain. Vertical mixer capacity can be selected, always 1-2 tons models for customers to choose, easy to clean, stainless steel manufacturing, easy to clean not rust, uniform mixing, mixing speed, can ensure that each batch of material *, save costs, with small investment, quick results, occupy less space, save labor, high efficiency advantages. Can be customized, can be customized according to customer workshop height requirements, materials can be selected, can also use carbon steel village material production, reduce costs.
Product Parameters

MODEL			TR-LHG500	TR-LHG 1000	TR-LHG2000	TR-LHG3000	TR-LHG5000
1	Effective Volume	T	0.5T	1T	2T	3T	5T
2	Power of Motor	KW	2.2	4	5.5	7.5	11
3	Motor rotary	R/m	300-350	300-350	300-350	300-350	300-350
4	Heating Power	kw	24	36	42	48	60
5	Fan	kw	0.75	1,5	2.2	3	4
6	Overall Size	mm	1150*2350	1400*2350	2000*2800	2100*3700	2500*4350
7	Weight	kg	500	800	1200	1500	1800

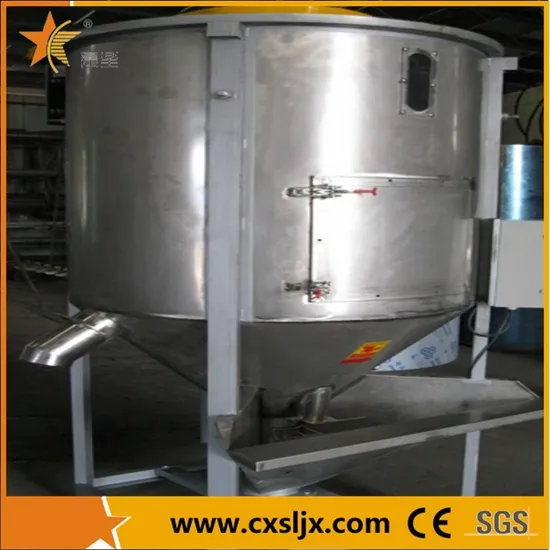

Detailed Photos

Company Profile
Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company. Chenxing is willing to work with you to create a future together.
