Agriculture Machine 7m 64 Disc Harrow
| US$8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1BZ
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Arable Machinery, Continuous Running Operation
Traction Type
Tractor
Drive Type
Tractor
Arbor Configuration
Vertical Shaft
Color
Custom-Made
Warranty
1 Year
Transport Package
Metal Frame
Trademark
LEYUAN
Origin
Shandong China
HS Code
84321000
Production Capacity
5000set /Year
Product Description

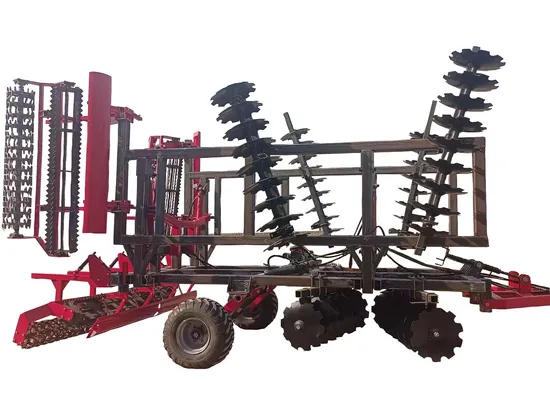

Product DescriptionThe traction type hydraulic offset heavy disc harrow is mainly suitable for smashing the stubble before ploughing, breaking the surface knot, cutting the straw into the field, breaking up the clods after ploughing, leveling and protecting the hoe, etc., and can also replace the plough on the mature land to carry out the soil ploughing operation. The work efficiency is high, the power utilization is reasonable, and the ability to break up the soil is strong. After the working, the surface is smooth and the soil is loose. It has strong adaptability to the filed with heavy soil, wasteland and weeds.
Product Parameters
| Model | Number of disc | Size of disc | Working width (mm) | Working depth (mm) | Weight (kg) | Matched tractor (hp) | Note (Bearing Assembly) |
| 1BZY-1.8 | 16 | 610x6 | 1800 | 150-200 | 1420 | 70-85 | Grease or oil bath |
| 1BZY-2.0 | 18 | 660x6 | 2000 | 180-220 | 1580 | 85-100 | Grease or oil bath |
| 1BZY-2.2 | 20 | 660x6 | 2200 | 180-220 | 1660 | 100-120 | Grease or oil bath |
| 1BZY-2.5 | 24 | 660x6 | 2500 | 180-220 | 2100 | 125-150 | Grease or oil bath |
| 1BZY-3.0 | 28 | 660x6 | 3000 | 180-220 | 2300 | 150-180 | Grease or oil bath |
| 1BZY-3.5 | 32 | 660x6 | 3500 | 180-220 | 2850 | 150-180 | Grease or oil bath |
| 1BZY-4.0 | 36 | 660x6 | 4000 | 180-220 | 3100 | 180-200 | Grease or oil bath |
