Metal Strip Cutting Machine Slitting Line

Product Description

Introduction

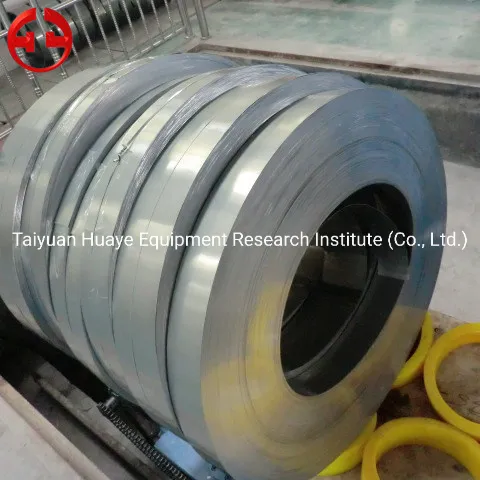

A slitting line is a series of machines used to slit broad steel coils into narrower coils with specific width. The full width coil was first uncoiled and flattened into flat strip. The strip is then siltted into narrower strips of narrower required width. The strips are then be recoiled into smaller coils.
The equipment is controlled by PLC control system which ensures high precisely slitting and easy operation.
High Speed Precision Steel coil Slitting Line is auto line with operate easily and high productivity, raw material is cold steel, stainless steel, aluminum, pickle steel etc. It is mainly composed of un-coiler, feeder, slitter and re-coiler. Its function is to slit a wide coil to stated width strips coil along with the length direction which can be used for construction product like wall and roof, some door & window frame etc., at same time, changing different material blade can slit various metal coils.
Processing Flow
Coil cart--uncoiling--straightening--pinching and leveling--vertical roll centering --hydraulic shear --vertical roll centering--rotary shear--scrap rewinding--transit table--tension device with separator--recoiler & separator--unloading
Machine parts in the working line
1) Coil Loading car
2) Uncoiling machine
3) Leveling machine
4) Hydraulic shear
5) Rotary shear
6) Scrap winder
7) Loop accumulater
8) Tension stand
9) Recoiler
10) Coil stripper car
11) Hydraulic system
12) Electric system
13) Related Accessories
