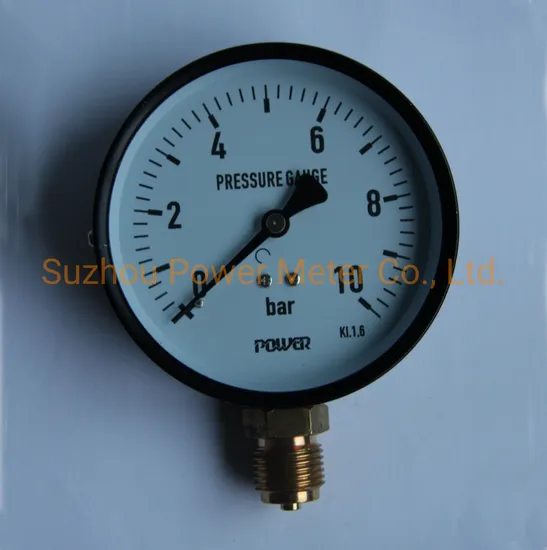

100mm 10bar General Pressure Gauge G1/2

Product Description

1. Product series: pressure gauge manufacturer exported to Germany CE 100mm 4inch pressure gauge 10bar G1/2 Bottom connection 2. Dial size: 1.5''(40mm), 2''(50mm), 2.5''(63mm), 3''(75mm), 4''(100mm), 6''(160mm)
3. Standard: EN837-1, ASME40.1
4. Qualified Certification: ISO9001, CE, KS

Dial size	1.5''(40mm), 2''(50mm), 2.5''(63mm), 3''(75mm), 4''(100mm), 6''(160mm)
Case	steel
Lens	PC / Acrylic/ common glass
Dial plate	aluminum
Bourdon tube	brass
Connection	brass
Mounting type	bottom connection back type, bottom type, panel mount(back with bracket / clamp) (as request)
Thread size	1/2G.
Scale range	0 - 10bar from -1 to 1000bar as request or psi, kg/cm2, Mpa, Kpa, mmH2O, mbar etc.
Case filling	dry
IP	IP45
Brand/LOGO	POWER or customized
Certificates	CE, ISO9001, KS
Accuracy	2.5% for dial size 40mm, 50mm, 63mm; 1.6% for dial size 75mm, 100mm, 160mm

Products Show
steel case serials
(dial size from 40mm, 50mm, 63mm, 75mm, 100mm, 160mm, 200mm)
Our Advantages a) About Suzhou Power Meter Co., Ltd.
Located in Suzhou, China, Suzhou Power Meter Co., Ltd. is a professional manufacturer founded in 1995. We specialize in designing, manufacturing and exporting all kinds of dry pressure gauges and liquid pressure gauges, CNG pressure gauges and manometers and pressure meter.
b) Our Capacity & Qualifications
Our annual output of pressure gauges is 1,000,000 pcs. Our products are widely used in oil & gas refinery, textile & chemical industry, and machinery process. Owing to a scientific and ISO9001 certified QC management system, together with undefiled and healthy working environment, we can produce CE certified products. Our excellent quality, reasonable pricing and good service are warmly welcomed by worldwide customers, such like SUKU, HYDAC in Germany, SAMSUNG, MS in Korea, SGV in Argentina, METCO in Finland...
c) Why Choose Us
Based on the corporate principle of "Top Quality, Perfect Service", we are providing our customers with top-grade products and strong technical support, as well as considerate service. We are always aiming to serve our clients by the best raw materials and well-trained staff.
d) Contact Us Today
We welcome you to contact us freely when you are interested in any of our items. We are ready to offer best quality and competitive cost for your kind evaluation. We will much appreciate if you can provide an opportunity for us to display our service and products, as we hope to establish long-term and stable friendships and business relationships with you.
How to order
FAQ Q: Are you trading company or manufacturer ? A: We are factory for nearly twelve years.
Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ? A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
