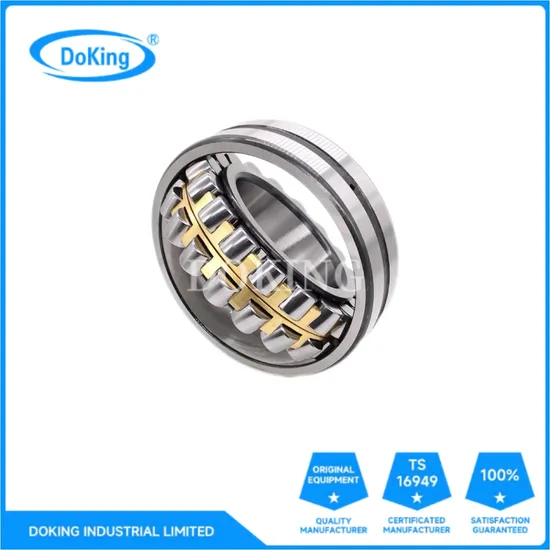

Self - Aligning Spherical Roller Bearing for Complex Working Conditions 24040 24044

Self - Aligning Spherical Roller Bearing for Complex Working Conditions 24040 24044

US$35.00-70.00 10 Pieces (MOQ)

Basic Info.

Model NO.
24040 24044
Vibration
V1 V2 V3 V4
Clearance
C2 C0 C3 C4 C5
Material
Chrome Steel Gcr15
Hardness
59-63 HRC
Seals Type
Open, 2RS, Zz
Transport Package
Industrial or Single Box as Request
Specification
Standard
Trademark
Doking
Origin
China
HS Code
84823000
Production Capacity
2200000/Year

Product Description

Detailed Photos
Spherical roller bearings are designed with a unique spherical raceway. This feature gives them excellent self - aligning capabilities, allowing for smooth operation even when the shaft is misaligned. They can withstand heavy radial and axial loads, making them suitable for various industrial applications. Additionally, their robust structure ensures high reliability and long - term performance, reducing maintenance costs and enhancing overall efficiency

CATALOGUE
Bearing No. Boundary dimensions Basic load ratings(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B rs min Cr Cor Grease Oil ≈
22308 40 90 33 1.5 121 128 3,800 5,900 0.974
22308K 40 90 33 1.5 121 128 3,800 5,900 0.951
22308KW33C3 40 90 33 1.5 121 128 3,800 5,900 0.951
22308W33C3 40 90 33 1.5 121 128 3,800 5,900 0.974
22309 45 100 36 1.5 148 167 3,400 5,300 1.33
22309K 45 100 36 1.5 148 167 3,400 5,300 1.3
22309KW33C3 45 100 36 1.5 148 167 3,400 5,300 1.3
22309W33C3 45 100 36 1.5 148 167 3,400 5,300 1.33
22310 50 110 40 2 186 212 3,100 4,800 1.79
22310K 50 110 40 2 186 212 3,100 4,800 1.75
22310KW33C3 50 110 40 2 186 212 3,100 4,800 1.75
22310W33C3 50 110 40 2 186 212 3,100 4,800 1.79
22311 55 120 43 2 204 234 2,800 4,400 2.3
22311K 55 120 43 2 204 234 2,800 4,400 2.25
22311KW33C3 55 120 43 2 204 234 2,800 4,400 2.25
22311W33C3 55 120 43 2 204 234 2,800 4,400 2.3
22312 60 130 46 2.1 238 273 2,600 4,000 2.9
22312K 60 130 46 2.1 238 273 2,600 4,000 2.83
22312KW33C3 60 130 46 2.1 238 273 2,600 4,000 2.83
22312W33C3 60 130 46 2.1 238 273 2,600 4,000 2.9
22313 65 140 48 2.1 265 320 2,400 3,700 3.45
22313K 65 140 48 2.1 265 320 2,400 3,700 3.37
22313KW33C3 65 140 48 2.1 265 320 2,400 3,700 3.37
22313W33C3 65 140 48 2.1 265 320 2,400 3,700 3.45
22314 70 150 51 2.1 325 380 2,300 3,500 4.22
22314K 70 150 51 2.1 325 380 2,300 3,500 4.12
22314KW33C3 70 150 51 2.1 325 380 2,300 3,500 4.12
22314W33C3 70 150 51 2.1 325 380 2,300 3,500 4.22
22315 75 160 55 2.1 330 410 2,100 3,200 5.25
22315K 75 160 55 2.1 330 410 2,100 3,200 5.13
22315KW33C3 75 160 55 2.1 330 410 2,100 3,200 5.13
22315W33C3 75 160 55 2.1 330 410 2,100 3,200 5.25
22316 80 170 58 2.1 385 470 2,000 3,000 6.05
22316K 80 170 58 2.1 385 470 2,000 3,000 5.91
22316KW33C3 80 170 58 2.1 385 470 2,000 3,000 5.91
22316W33C3 80 170 58 2.1 385 470 2,000 3,000 6.05
22317 85 180 60 3 415 510 1,900 2,900 7.1
22317K 85 180 60 3 415 510 1,900 2,900 6.94
22317KW33C3 85 180 60 3 415 510 1,900 2,900 6.94
22317W33C3 85 180 60 3 415 510 1,900 2,900 7.1
22318 90 190 64 3 480 590 1,800 2,700 8.35
22318K 90 190 64 3 480 590 1,800 2,700 8.16
22318KW33C3 90 190 64 3 480 590 1,800 2,700 8.16
22318W33C3 90 190 64 3 480 590 1,800 2,700 8.35
22319 95 200 67 3 500 615 1,600 2,500 9.76
22319K 95 200 67 3 500 615 1,600 2,500 9.54
22319KW33C3 95 200 67 3 500 615 1,600 2,500 9.54
22319W33C3 95 200 67 3 500 615 1,600 2,500 9.76
22320 100 215 73 3 605 755 1,600 2,400 12.4
22320K 100 215 73 3 605 755 1,600 2,400 12.1
22320KW33C3 100 215 73 3 605 755 1,600 2,400 12.1
22320W33C3 100 215 73 3 605 755 1,600 2,400 12.4
22322 110 240 80 3 745 930 1,400 2,200 17.1
22322K 110 240 80 3 745 930 1,400 2,200 16.7
22322KW33C3 110 240 80 3 745 930 1,400 2,200 16.7
22322W33C3 110 240 80 3 745 930 1,400 2,200 17.1
22324 120 260 86 3 880 1,120 1,300 2,000 21.5
22324K 120 260 86 3 880 1,120 1,300 2,000 21
22324KW33C3 120 260 86 3 880 1,120 1,300 2,000 21
22324W33C3 120 260 86 3 880 1,120 1,300 2,000 21.5
22326 130 280 93 4 1,000 1,290 1,200 1,800 26.8
22326K 130 280 93 4 1,000 1,290 1,200 1,800 26.2
22326KW33C3 130 280 93 4 1,000 1,290 1,200 1,800 26.2
22326W33C3 130 280 93 4 1,000 1,290 1,200 1,800 26.8
22328 140 300 102 4 1,130 1,460 1,100 1,700 33.8
22328K 140 300 102 4 1,130 1,460 1,100 1,700 33
22328KW33C3 140 300 102 4 1,130 1,460 1,100 1,700 33
22328W33C3 140 300 102 4 1,130 1,460 1,100 1,700 33.8
22330 150 320 108 4 1,270 1,750 1,000 1,600 42.7
22330K 150 320 108 4 1,270 1,750 1,000 1,600 41.8
22330KW33C3 150 320 108 4 1,270 1,750 1,000 1,600 41.8
22330W33C3 150 320 108 4 1,270 1,750 1,000 1,600 42.7
22332 160 340 114 4 1,410 1,990 940 1,500 50.8
22332K 160 340 114 4 1,410 1,990 940 1,500 49.7
22332KW33C3 160 340 114 4 1,410 1,990 940 1,500 49.7
22332W33C3 160 340 114 4 1,410 1,990 940 1,500 50.8
22334 170 360 120 4 1,540 2,180 880 1,400 59.8
22334K 170 360 120 4 1,540 2,180 880 1,400 58.5
22334KW33C3 170 360 120 4 1,540 2,180 880 1,400 58.5
22334W33C3 170 360 120 4 1,540 2,180 880 1,400 59.8
22336 180 380 126 4 1,740 2,560 830 1,300 70
22336K 180 380 126 4 1,740 2,560 830 1,300 68.5
22336KW33C3 180 380 126 4 1,740 2,560 830 1,300 68.5
22336W33C3 180 380 126 4 1,740 2,560 830 1,300 70
22338 190 400 132 5 1,870 2,790 780 1,200 81
22338K 190 400 132 5 1,870 2,790 780 1,200 79.3
22338KW33C3 190 400 132 5 1,870 2,790 780 1,200 79.3
22338W33C3 190 400 132 5 1,870 2,790 780 1,200 81
22340 200 420 138 5 2,040 3,050 740 1,100 93.2
22340K 200 420 138 5 2,040 3,050 740 1,100 91.2
22340KW33C3 200 420 138 5 2,040 3,050 740 1,100 91.2
22340W33C3 200 420 138 5 2,040 3,050 740 1,100 93.2
22344 220 460 145 5 2,350 3,500 660 1,000 117
22344K 220 460 145 5 2,350 3,500 660 1,000 115
22344KW33C3 220 460 145 5 2,350 3,500 660 1,000 115
22344W33C3 220 460 145 5 2,350 3,500 660 1,000 117
22348 240 500 155 5 2,720 4,100 600 930 148
22348K 240 500 155 5 2,720 4,100 600 930 145
22348KW33C3 240 500 155 5 2,720 4,100 600 930 145
22348W33C3 240 500 155 5 2,720 4,100 600 930 148
22352 260 540 165 6 3,100 4,750 550 850 183
22352K 260 540 165 6 3,100 4,750 550 850 179
22352KW33C3 260 540 165 6 3,100 4,750 550 850 179
22352W33C3 260 540 165 6 3,100 4,750 550 850 183
22356 280 580 175 6 3,500 5,350 500 780 224
22356K 280 580 175 6 3,500 5,350 500 780 220
22356KW33C3 280 580 175 6 3,500 5,350 500 780 220
22356W33C3 280 580 175 6 3,500 5,350 500 780 224
22360 300 620 185 7.5 3,600 5,400 470 720 270
22360K 300 620 185 7.5 3,600 5,400 470 720 265
22360KW33C3 300 620 185 7.5 3,600 5,400 470 720 265
22360W33C3 300 620 185 7.5 3,600 5,400 470 720 270

Bearing No. Boundary dimensions Basic load ratings(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B rs min Cr Cor Grease Oil ≈
23022 110 170 45 2 282 455 1,800 2,800 3.71
23022K 110 170 45 2 282 455 1,800 2,800 3.58
23022KW33C3 110 170 45 2 282 455 1,800 2,800 3.58
23022W33C3 110 170 45 2 282 455 1,800 2,800 3.71
23024 120 180 46 2 296 495 1,700 2,600 4.05
23024K 120 180 46 2 296 495 1,700 2,600 3.9
23024KW33C3 120 180 46 2 296 495 1,700 2,600 3.9
23024W33C3 120 180 46 2 296 495 1,700 2,600 4.05
23026 130 200 52 2 375 620 1,500 2,300 5.9
23026K 130 200 52 2 375 620 1,500 2,300 5.69
23026KW33C3 130 200 52 2 375 620 1,500 2,300 5.69
23026W33C3 130 200 52 2 375 620 1,500 2,300 5.9
23028 140 210 53 2 405 690 1,400 2,200 6.35
23028K 140 210 53 2 405 690 1,400 2,200 6.12
23028KW33C3 140 210 53 2 405 690 1,400 2,200 6.12
23028W33C3 140 210 53 2 405 690 1,400 2,200 6.35
23030 150 225 56 2.1 445 775 1,300 2,000 7.73
23030K 150 225 56 2.1 445 775 1,300 2,000 7.45
23030KW33C3 150 225 56 2.1 445 775 1,300 2,000 7.45
23030W33C3 150 225 56 2.1 445 775 1,300 2,000 7.73
23032 160 240 60 2.1 505 885 1,200 1,900 9.42
23032K 160 240 60 2.1 505 885 1,200 1,900 9.09
23032KW33C3 160 240 60 2.1 505 885 1,200 1,900 9.09
23032W33C3 160 240 60 2.1 505 885 1,200 1,900 9.42
23034 170 260 67 2.1 630 1,080 1,100 1,800 12.7
23034K 170 260 67 2.1 630 1,080 1,100 1,800 12.3
23034KW33C3 170 260 67 2.1 630 1,080 1,100 1,800 12.3
23034W33C3 170 260 67 2.1 630 1,080 1,100 1,800 12.7
23036 180 280 74 2.1 740 1,290 1,100 1,700 16.7
23036K 180 280 74 2.1 740 1,290 1,100 1,700 16.1
23036KW33C3 180 280 74 2.1 740 1,290 1,100 1,700 16.1
23036W33C3 180 280 74 2.1 740 1,290 1,100 1,700 16.7
23038 190 290 75 2.1 755 1,350 1,000 1,600 17.7
23038K 190 290 75 2.1 755 1,350 1,000 1,600 17.1
23038KW33C3 190 290 75 2.1 755 1,350 1,000 1,600 17.1
23038W33C3 190 290 75 2.1 755 1,350 1,000 1,600 17.7
23040 200 310 82 2.1 915 1,620 960 1,500 22.7
23040K 200 310 82 2.1 915 1,620 960 1,500 21.9
23040KW33C3 200 310 82 2.1 915 1,620 960 1,500 21.9
23040W33C3 200 310 82 2.1 915 1,620 960 1,500 22.7
23044 220 340 90 3 1,060 1,920 870 1,300 29.9
23044K 220 340 90 3 1,060 1,920 870 1,300 28.8
23044KW33C3 220 340 90 3 1,060 1,920 870 1,300 28.8
23044W33C3 220 340 90 3 1,060 1,920 870 1,300 29.9
23048 240 360 92 3 1,130 2,140 790 1,200 33.4
23048K 240 360 92 3 1,130 2,140 790 1,200 32.2
23048KW33C3 240 360 92 3 1,130 2,140 790 1,200 32.2
23048W33C3 240 360 92 3 1,130 2,140 790 1,200 33.4
23052 260 400 104 4 1,420 2,620 720 1,100 48.5
23052K 260 400 104 4 1,420 2,620 720 1,100 46.8
23052KW33C3 260 400 104 4 1,420 2,620 720 1,100 46.8
23052W33C3 260 400 104 4 1,420 2,620 720 1,100 48.5
23056 280 420 106 4 1,510 2,920 660 1,000 52.4
23056K 280 420 106 4 1,510 2,920 660 1,000 50.6
23056KW33C3 280 420 106 4 1,510 2,920 660 1,000 50.6
23056W33C3 280 420 106 4 1,510 2,920 660 1,000 52.4
23060 300 460 118 4 1,890 3,550 610 940 72.4
23060K 300 460 118 4 1,890 3,550 610 940 70.2
23060KW33C3 300 460 118 4 1,890 3,550 610 940 70.2
23060W33C3 300 460 118 4 1,890 3,550 610 940 72.4

Bearing No. Boundary dimensions Basic load ratings(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B rs min Cr Cor Grease Oil ≈
23120 100 165 52 2 310 470 1,700 2,600 4.3
23120K 100 165 52 2 310 470 1,700 2,600 4.16
23120KW33C3 100 165 52 2 310 470 1,700 2,600 4.16
23120W33C3 100 165 52 2 310 470 1,700 2,600 4.3
23122 110 180 56 2 370 580 1,500 2,400 5.4
23122K 110 180 56 2 370 580 1,500 2,400 5.22
23122KW33C3 110 180 56 2 370 580 1,500 2,400 5.22
23122W33C3 110 180 56 2 370 580 1,500 2,400 5.4
23124 120 200 62 2 455 705 1,400 2,100 7.7
23124K 120 200 62 2 455 705 1,400 2,100 7.46
23124KW33C3 120 200 62 2 455 705 1,400 2,100 7.46
23124W33C3 120 200 62 2 455 705 1,400 2,100 7.7
23126 130 210 64 2 495 795 1,300 2,000 8.47
23126K 130 210 64 2 495 795 1,300 2,000 8.2
23126KW33C3 130 210 64 2 495 795 1,300 2,000 8.2
23126W33C3 130 210 64 2 495 795 1,300 2,000 8.47
23128 140 225 68 2.1 540 895 1,200 1,800 10.2
23128K 140 225 68 2.1 540 895 1,200 1,800 9.86
23128KW33C3 140 225 68 2.1 540 895 1,200 1,800 9.86
23128W33C3 140 225 68 2.1 540 895 1,200 1,800 10.2
23130 150 250 80 2.1 730 1,190 1,100 1,700 15.6
23130K 150 250 80 2.1 730 1,190 1,100 1,700 15.1
23130KW33C3 150 250 80 2.1 730 1,190 1,100 1,700 15.1
23130W33C3 150 250 80 2.1 730 1,190 1,100 1,700 15.6
23132 160 270 86 2.1 840 1,370 1,000 1,600 19.8
23132K 160 270 86 2.1 840 1,370 1,000 1,600 19.2
23132KW33C3 160 270 86 2.1 840 1,370 1,000 1,600 19.2
23132W33C3 160 270 86 2.1 840 1,370 1,000 1,600 19.8
23134 170 280 88 2.1 885 1,490 960 1,500 21.5
23134K 170 280 88 2.1 885 1,490 960 1,500 20.8
23134KW33C3 170 280 88 2.1 885 1,490 960 1,500 20.8
23134W33C3 170 280 88 2.1 885 1,490 960 1,500 21.5
23136 180 300 96 3 1,030 1,730 900 1,400 25.1
23136K 180 300 96 3 1,030 1,730 900 1,400 24.2
23136KW33C3 180 300 96 3 1,030 1,730 900 1,400 24.2
23136W33C3 180 300 96 3 1,030 1,730 900 1,400 25.1
23138 190 320 104 3 1,190 2,020 850 1,300 35.3
23138K 190 320 104 3 1,190 2,020 850 1,300 34.2
23138KW33C3 190 320 104 3 1,190 2,020 850 1,300 34.2
23138W33C3 190 320 104 3 1,190 2,020 850 1,300 35.3
23140 200 340 112 3 1,350 2,270 800 1,200 43.3
23140K 200 340 112 3 1,350 2,270 800 1,200 42
23140KW33C3 200 340 112 3 1,350 2,270 800 1,200 42
23140W33C3 200 340 112 3 1,350 2,270 800 1,200 43.3
23144 220 370 120 4 1,540 2,670 720 1,100 53.3
23144K 220 370 120 4 1,540 2,670 720 1,100 51.6
23144KW33C3 220 370 120 4 1,540 2,670 720 1,100 51.6
23144W33C3 220 370 120 4 1,540 2,670 720 1,100 53.3
23148 240 400 128 4 1,730 3,050 650 1,000 65.8
23148K 240 400 128 4 1,730 3,050 650 1,000 63.8
23148KW33C3 240 400 128 4 1,730 3,050 650 1,000 63.8
23148W33C3 240 400 128 4 1,730 3,050 650 1,000 65.8
23152 260 440 144 4 2,140 3,850 600 920 91.4
23152K 260 440 144 4 2,140 3,850 600 920 88.6
23152KW33C3 260 440 144 4 2,140 3,850 600 920 88.6
23152W33C3 260 440 144 4 2,140 3,850 600 920 91.4
23156 280 460 146 5 2,300 4,250 550 850 97.7
23156K 280 460 146 5 2,300 4,250 550 850 94.6
23156KW33C3 280 460 146 5 2,300 4,250 550 850 94.6
23156W33C3 280 460 146 5 2,300 4,250 550 850 97.7
23160 300 500 160 5 2,750 5,000 510 780 131
23160K 300 500 160 5 2,750 5,000 510 780 127
23160KW33C3 300 500 160 5 2,750 5,000 510 780 127
23160W33C3 300 500 160 5 2,750 5,000 510 780 131
Bearing No. Boundary dimensions Basic load ratings(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B rs min Cr Cor Grease Oil ≈
23218 90 160 52.4 2 315 455 1,800 2,800 4.45
23218K 90 160 52.4 2 315 455 1,800 2,800 4.32
23218KW33C3 90 160 52.4 2 315 455 1,800 2,800 4.32
23218W33C3 90 160 52.4 2 315 455 1,800 2,800 4.45
23220 100 180 60.3 2.1 405 580 1,600 2,500 6.47
23220K 100 180 60.3 2.1 405 580 1,600 2,500 6.28
23220KW33C3 100 180 60.3 2.1 405 580 1,600 2,500 6.28
23220W33C3 100 180 60.3 2.1 405 580 1,600 2,500 6.47
23222 110 200 69.8 2.1 515 760 1,400 2,200 9.71
23222K 110 200 69.8 2.1 515 760 1,400 2,200 9.43
23222KW33C3 110 200 69.8 2.1 515 760 1,400 2,200 9.43
23222W33C3 110 200 69.8 2.1 515 760 1,400 2,200 9.71
23224 120 215 76 2.1 585 880 1,300 2,000 12.1
23224K 120 215 76 2.1 585 880 1,300 2,000 11.7
23224KW33C3 120 215 76 2.1 585 880 1,300 2,000 11.7
23224W33C3 120 215 76 2.1 585 880 1,300 2,000 12.1
23226 130 230 80 3 685 1,060 1,200 1,900 14.3
23226K 130 230 80 3 685 1,060 1,200 1,900 13.9
23226KW33C3 130 230 80 3 685 1,060 1,200 1,900 13.9
23226W33C3 130 230 80 3 685 1,060 1,200 1,900 14.3
23228 140 250 88 3 805 1,270 1,100 1,700 18.8
23228K 140 250 88 3 805 1,270 1,100 1,700 18.2
23228KW33C3 140 250 88 3 805 1,270 1,100 1,700 18.2
23228W33C3 140 250 88 3 805 1,270 1,100 1,700 18.8
23230 150 270 96 3 935 1,460 1,000 1,600 24.1
23230K 150 270 96 3 935 1,460 1,000 1,600 23.4
23230KW33C3 150 270 96 3 935 1,460 1,000 1,600 23.4
23230W33C3 150 270 96 3 935 1,460 1,000 1,600 24.1
23232 160 290 104 3 1,050 1,660 960 1,500 30
23232K 160 290 104 3 1,050 1,660 960 1,500 29.1
23232KW33C3 160 290 104 3 1,050 1,660 960 1,500 29.1
23232W33C3 160 290 104 3 1,050 1,660 960 1,500 30
23234 170 310 110 4 1,180 1,960 910 1,400 36.8
23234K 170 310 110 4 1,180 1,960 910 1,400 35.7
23234KW33C3 170 310 110 4 1,180 1,960 910 1,400 35.7
23234W33C3 170 310 110 4 1,180 1,960 910 1,400 36.8
23236 180 320 112 4 1,230 2,000 850 1,300 39
23236K 180 320 112 4 1,230 2,000 850 1,300 37.8
23236KW33C3 180 320 112 4 1,230 2,000 850 1,300 37.8
23236W33C3 180 320 112 4 1,230 2,000 850 1,300 39
23238 190 340 120 4 1,400 2,330 790 1,200 47.6
23238K 190 340 120 4 1,400 2,330 790 1,200 46.2
23238KW33C3 190 340 120 4 1,400 2,330 790 1,200 46.2
23238W33C3 190 340 120 4 1,400 2,330 790 1,200 47.6
23240 200 360 128 4 1,610 2,640 750 1,200 57.2
23240K 200 360 128 4 1,610 2,640 750 1,200 55.5
23240KW33C3 200 360 128 4 1,610 2,640 750 1,200 55.5
23240W33C3 200 360 128 4 1,610 2,640 750 1,200 57.2
23244 220 400 144 4 2,010 3,350 670 1,000 80
23244K 220 400 144 4 2,010 3,350 670 1,000 77.6
23244KW33C3 220 400 144 4 2,010 3,350 670 1,000 77.6
23244W33C3 220 400 144 4 2,010 3,350 670 1,000 80
23248 240 440 160 4 2,430 4,100 610 940 108
23248K 240 440 160 4 2,430 4,100 610 940 105
23248KW33C3 240 440 160 4 2,430 4,100 610 940 105
23248W33C3 240 440 160 4 2,430 4,100 610 940 108
23252 260 480 174 5 2,760 4,700 560 860 141
23252K 260 480 174 5 2,760 4,700 560 860 137
23252KW33C3 260 480 174 5 2,760 4,700 560 860 137
23252W33C3 260 480 174 5 2,760 4,700 560 860 141
23256 280 500 176 5 2,930 5,150 510 790 150
23256K 280 500 176 5 2,930 5,150 510 790 145
23256KW33C3 280 500 176 5 2,930 5,150 510 790 145
23256W33C3 280 500 176 5 2,930 5,150 510 790 150
23260 300 540 192 5 3,450 6,000 470 730 193
23260K 300 540 192 5 3,450 6,000 470 730 187
23260KW33C3 300 540 192 5 3,450 6,000 470 730 187
23260W33C3 300 540 192 5 3,450 6,000 470 730 193
Bearing No. Boundary dimensions Basic load ratings(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B rs min Cr Cor Grease Oil ≈
23936 180 250 52 2 440 835 1,200 1,800 8.21
23936K 180 250 52 2 440 835 1,200 1,800 7.95
23936KW33C3 180 250 52 2 440 835 1,200 1,800 7.95
23936W33C3 180 250 52 2 440 835 1,200 1,800 8.21
23938 190 260 52 2 460 890 1,100 1,700 8.6
23938K 190 260 52 2 460 890 1,100 1,700 8.34
23938KW33C3 190 260 52 2 460 890 1,100 1,700 8.34
23938W33C3 190 260 52 2 460 890 1,100 1,700 8.6
23940 200 280 60 2.1 545 1,100 1,000 1,600 12.1
23940K 200 280 60 2.1 545 1,100 1,000 1,600 11.7
23940KW33C3 200 280 60 2.1 545 1,100 1,000 1,600 11.7
23940W33C3 200 280 60 2.1 545 1,100 1,000 1,600 12.1
23944 220 300 60 2.1 565 1,170 930 1,400 13.1
23944K 220 300 60 2.1 565 1,170 930 1,400 12.7
23944KW33C3 220 300 60 2.1 565 1,170 930 1,400 12.7
23944W33C3 220 300 60 2.1 565 1,170 930 1,400 13.1
23948 240 320 60 2.1 565 1,190 840 1,300 14
23948K 240 320 60 2.1 565 1,190 840 1,300 13.6
23948KW33C3 240 320 60 2.1 565 1,190 840 1,300 13.6
23948W33C3 240 320 60 2.1 565 1,190 840 1,300 14
23952 260 360 75 2.1 760 1,580 770 1,200 24
23952K 260 360 75 2.1 760 1,580 770 1,200 23.3
23952KW33C3 260 360 75 2.1 760 1,580 770 1,200 23.3
23952W33C3 260 360 75 2.1 760 1,580 770 1,200 24
23956 280 380 75 2.1 830 1,750 710 1,100 26.4
23956K 280 380 75 2.1 830 1,750 710 1,100 25.6
23956KW33C3 280 380 75 2.1 830 1,750 710 1,100 25.6
23956W33C3 280 380 75 2.1 830 1,750 710 1,100 26.4
23960 300 420 90 3 1,110 2,320 650 1,000 40
23960K 300 420 90 3 1,110 2,320 650 1,000 38.7
23960KW33C3 300 420 90 3 1,110 2,320 650 1,000 38.7
23960W33C3 300 420 90 3 1,110 2,320 650 1,000 40
Bearing No. Boundary dimensions Basic load ratings(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B rs min Cr Cor Grease Oil ≈
24024 120 180 60 2 390 670 1,500 2,300 5.48
24024K30 120 180 60 2 390 670 1,500 2,300 5.39
24024K30W33C3 120 180 60 2 390 670 1,500 2,300 5.39
24024W33C3 120 180 60 2 390 670 1,500 2,300 5.48
24026 130 200 69 2 505 895 1,300 2,100 8.08
24026K30 130 200 69 2 505 895 1,300 2,100 7.95
24026K30W33C3 130 200 69 2 505 895 1,300 2,100 7.95
24026W33C3 130 200 69 2 505 895 1,300 2,100 8.08
24028 140 210 69 2 510 945 1,200 1,900 8.57
24028K30 140 210 69 2 510 945 1,200 1,900 8.43
24028K30W33C3 140 210 69 2 510 945 1,200 1,900 8.43
24028W33C3 140 210 69 2 510 945 1,200 1,900 8.57
24030 150 225 75 2.1 585 1,060 1,200 1,800 10.7
24030K30 150 225 75 2.1 585 1,060 1,200 1,800 10.5
24030K30W33C3 150 225 75 2.1 585 1,060 1,200 1,800 10.5
24030W33C3 150 225 75 2.1 585 1,060 1,200 1,800 10.7
24032 160 240 80 2.1 650 1,200 1,100 1,700 13
24032K30 160 240 80 2.1 650 1,200 1,100 1,700 12.8
24032K30W33C3 160 240 80 2.1 650 1,200 1,100 1,700 12.8
24032W33C3 160 240 80 2.1 650 1,200 1,100 1,700 13
24034 170 260 90 2.1 800 1,470 1,000 1,600 17.7
24034K30 170 260 90 2.1 800 1,470 1,000 1,600 17.4
24034K30W33C3 170 260 90 2.1 800 1,470 1,000 1,600 17.4
24034W33C3 170 260 90 2.1 800 1,470 1,000 1,600 17.7
24036 180 280 100 2.1 965 1,770 950 1,500 23.3
24036K30 180 280 100 2.1 965 1,770 950 1,500 22.9
24036K30W33C3 180 280 100 2.1 965 1,770 950 1,500 22.9
24036W33C3 180 280 100 2.1 965 1,770 950 1,500 23.3
24038 190 290 100 2.1 995 1,850 900 1,400 24.3
24038K30 190 290 100 2.1 995 1,850 900 1,400 23.9
24038K30W33C3 190 290 100 2.1 995 1,850 900 1,400 23.9
24038W33C3 190 290 100 2.1 995 1,850 900 1,400 24.3
24040 200 310 109 2.1 1,160 2,140 850 1,300 31
24040K30 200 310 109 2.1 1,160 2,140 850 1,300 30.5
24040K30W33C3 200 310 109 2.1 1,160 2,140 850 1,300 30.5
24040W33C3 200 310 109 2.1 1,160 2,140 850 1,300 31
24044 220 340 118 3 1,350 2,570 770 1,200 40.2
24044K30 220 340 118 3 1,350 2,570 770 1,200 39.6
24044K30W33C3 220 340 118 3 1,350 2,570 770 1,200 39.6
24044W33C3 220 340 118 3 1,350 2,570 770 1,200 40.2
24048 240 360 118 3 1,410 2,770 700 1,100 43
24048K30 240 360 118 3 1,410 2,770 700 1,100 42.3
24048K30W33C3 240 360 118 3 1,410 2,770 700 1,100 42.3
24048W33C3 240 360 118 3 1,410 2,770 700 1,100 43
24052 260 400 140 4 1,830 3,550 640 980 65.2
24052K30 260 400 140 4 1,830 3,550 640 980 64.1
24052K30W33C3 260 400 140 4 1,830 3,550 640 980 64.1
24052W33C3 260 400 140 4 1,830 3,550 640 980 65.2
24056 280 420 140 4 1,950 3,950 590 900 69
24056K30 280 420 140 4 1,950 3,950 590 900 67.9
24056K30W33C3 280 420 140 4 1,950 3,950 590 900 67.9
24056W33C3 280 420 140 4 1,950 3,950 590 900 69
24060 300 460 160 4 2,450 4,950 540 840 98
24060K30 300 460 160 4 2,450 4,950 540 840 96.4
24060K30W33C3 300 460 160 4 2,450 4,950 540 840 96.4
24060W33C3 300 460 160 4 2,450 4,950 540 840 98
Bearing No. Boundary dimensions Basic load ratings(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B rs min Cr Cor Grease Oil ≈
24122 110 180 69 2 450 755 1,500 2,400 7.07
24122K30 110 180 69 2 450 755 1,500 2,400 6.96
24122K30W33C3 110 180 69 2 450 755 1,500 2,400 6.96
24122W33C3 110 180 69 2 450 755 1,500 2,400 7.07
24124 120 200 80 2 575 945 1,400 2,100 10.3
24124K30 120 200 80 2 575 945 1,400 2,100 10.1
24124K30W33C3 120 200 80 2 575 945 1,400 2,100 10.1
24124W33C3 120 200 80 2 575 945 1,400 2,100 10.3
24126 130 210 80 2 585 995 1,300 2,000 11
24126K30 130 210 80 2 585 995 1,300 2,000 10.8
24126K30W33C3 130 210 80 2 585 995 1,300 2,000 10.8
24126W33C3 130 210 80 2 585 995 1,300 2,000 11
24128 140 225 85 2.1 670 1,150 1,200 1,800 13.3
24128K30 140 225 85 2.1 670 1,150 1,200 1,800 13.1
24128K30W33C3 140 225 85 2.1 670 1,150 1,200 1,800 13.1
24128W33C3 140 225 85 2.1 670 1,150 1,200 1,800 13.3
24130 150 250 100 2.1 885 1,520 1,100 1,700 20.2
24130K30 150 250 100 2.1 885 1,520 1,100 1,700 20
24130K30W33C3 150 250 100 2.1 885 1,520 1,100 1,700 20
24130W33C3 150 250 100 2.1 885 1,520 1,100 1,700 20.2
24132 160 270 109 2.1 1,040 1,780 1,000 1,600 26
24132K30 160 270 109 2.1 1,040 1,780 1,000 1,600 25.6
24132K30W33C3 160 270 109 2.1 1,040 1,780 1,000 1,600 25.6
24132W33C3 160 270 109 2.1 1,040 1,780 1,000 1,600 26
24134 170 280 109 2.1 1,080 1,880 960 1,500 27.2
24134K30 170 280 109 2.1 1,080 1,880 960 1,500 26.8
24134K30W33C3 170 280 109 2.1 1,080 1,880 960 1,500 26.8
24134W33C3 170 280 109 2.1 1,080 1,880 960 1,500 27.2
24136 180 300 118 3 1,250 2,210 900 1,400 34.3
24136K30 180 300 118 3 1,250 2,210 900 1,400 33.8
24136K30W33C3 180 300 118 3 1,250 2,210 900 1,400 33.8
24136W33C3 180 300 118 3 1,250 2,210 900 1,400 34.3
24138 190 320 128 3 1,420 2,480 850 1,300 42.8
24138K30 190 320 128 3 1,420 2,480 850 1,300 42.2
24138K30W33C3 190 320 128 3 1,420 2,480 850 1,300 42.2
24138W33C3 190 320 128 3 1,420 2,480 850 1,300 42.8
24140 200 340 140 3 1,630 2,900 800 1,200 53.4
24140K30 200 340 140 3 1,630 2,900 800 1,200 52.6
24140K30W33C3 200 340 140 3 1,630 2,900 800 1,200 52.6
24140W33C3 200 340 140 3 1,630 2,900 800 1,200 53.4
24144 220 370 150 4 1,880 3,400 720 1,100 67
24144K30 220 370 150 4 1,880 3,400 720 1,100 66
24144K30W33C3 220 370 150 4 1,880 3,400 720 1,100 66
24144W33C3 220 370 150 4 1,880 3,400 720 1,100 67
24148 240 400 160 4 2,110 3,800 650 1,000 82.2
24148K30 240 400 160 4 2,110 3,800 650 1,000 80.9
24148K30W33C3 240 400 160 4 2,110 3,800 650 1,000 80.9
24148W33C3 240 400 160 4 2,110 3,800 650 1,000 82.2
24152 260 440 180 4 2,510 4,600 600 920 114
24152K30 260 440 180 4 2,510 4,600 600 920 112
24152K30W33C3 260 440 180 4 2,510 4,600 600 920 112
24152W33C3 260 440 180 4 2,510 4,600 600 920 114
24156 280 460 180 5 2,730 5,200 550 850 120
24156K30 280 460 180 5 2,730 5,200 550 850 118
24156K30W33C3 280 460 180 5 2,730 5,200 550 850 118
24156W33C3 280 460 180 5 2,730 5,200 550 850 120
24160 300 500 200 5 3,300 6,400 510 780 161
24160K30 300 500 200 5 3,300 6,400 510 780 159
24160K30W33C3 300 500 200 5 3,300 6,400 510 780 159
24160W33C3 300 500 200 5 3,300 6,400 510 780 161
COMPANY INTRODUCTION
PRODUCTION PROCEDURE

RELATED PRODUCTS
FUNCTION

Our Advantages

FEEDBACK


>> High Precision Linear Guideway Vmc Machine Center
>> RBM50HV round bending machine with CE with China low price
>> Manguo Easy Cleaning Chemical and Food Industrial Mixer
>> A194-8/8m Stainless Steel 30408 Heavy-Duty Nut 316L Large Hexagon Thickened Cap6175/Hg20634
>> Professional Manufacturer of Automatic Hard Candy Equipments
>> Factory Price Pn16 Steel Wire Skeleton Reinforced Composite HDPE Pipe for Mining Tailing System
>> Cw61160 6114 61125 61110 Conventional Machine Tool Lathe Weight of Workpiece 8000kg Factory Price
>> New Technology 65 75 86 98 Inch Touch Screen Digital Classroom LCD Interactive Video Teaching Conference Whiteboard
>> Factory Manufacture 304 Stainless Steel Round BBQ Grill Mesh Home Roast Nets
>> 304316 Stainless Steel Slot Pipe
>> Coffee machine 600 ml drip type tea automatic heat preservation
>> High Speed Condiment Powder Horizontal Double Shafts Paddle Mixer
>> Versatile 17-Inch Laptop 4-in-1 Large-Capacity Business Travel Backpack with Multiple Compartments for Ultimate Organization
>> hot sale custom logo polo t shirt for men wholesale price men polo shirts
>> Hygienic Stainless Steel Kscp Series Sanitary Close Impeller Centrifugal Pump
>> XT8980A XTIOT China 4G 64G Android 10.0 13.56 RFID NFC Portable Data Terminal Handheld Barcode Scanner With Printer
>> LDPE PE Plastic Ball Making Machine Different Children Toy Supplier Blow Molding Machinery
>> Yokohama Type Floating Marine Rubber Pneumatic Fenders
>> 12L HDPE Jerry Can Full Automatic Blow Molding Machine
>> VDE Approved Schuko Power Plug (AL-153)
>> 9HP/13.5HP/15HP Gasoline Engine Mini Excavator Loader Tractor Mounted Pto ATV Small Towable Digger Backhoe with Best Price
>> 15KW Plastic High Frequency PVC Tarpaulin Welding Machine For Tent
>> China Supplying Huayee 2ton New Design Different Colors Engine Hydraulic Crawler Mini Excavator for Sale with CE ISO Certificates
>> Single Shaft Feed Mixer for High-Quality Animal Feed Production
>> HS3311 Engine Part Wg9925430100 A7/Vgd71/Vgd9.5 Tie Rod Joint
>> Environmental Stone Crusher Production Line with Capacity 100-450t/H
>> Precision Single Side Polishing and Lapping Machine for Ceramic Substrates
>> Customized PCD Series CNC Three-Side Punching, Marking & Shearing Machine for Channels
>> Cheap Price ABS Emergency Ambulance Movable Moving Mobile Medicine Instrument Treatment Dressing Nursing Crash Stainless Steel Optional Hospital Medical Trolley
>> Factory Outlet Canteen Furniture Metal Dining Table and Chairs for People
Product
