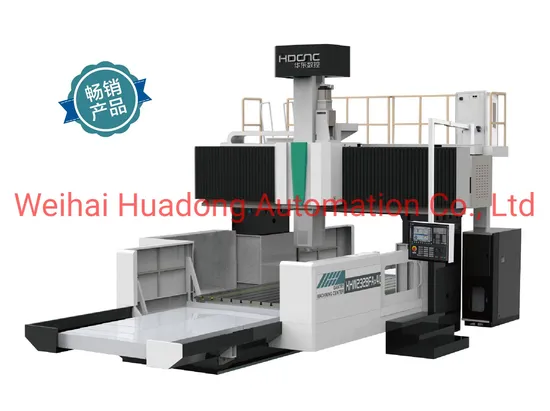

Good Quality Large CNC Gantry Milling Machine

Product Description

1. Machine features

1. ZF gear box is standard for direct spindle, automatic constant temperature cooling circulation system. The spindle has two gears, with torque up to 770/910nm;
2, The machine foundation parts after optimization design, bed, column, saddle, spindle box, worktable and other key components, using high quality high strength casting, the machine has good rigidity and Vibration resistance
3, Adopt 8 Sided Quenched Fully Surrounded Square Ram, to ensure Z feed rigidity, suitable for strong cutting
4, Z axis standard with 1000mm/1250mm ultra long travel, wide processing range
5. X and Y axis adopt imported 55 specification heavy-duty roller guide, and cross beam linear guide is vertically orthogonal arrangement, with strong loading capacity.
6,Three axis adopts imported large diameter precision ball screw, with strong feed rigidity ;
7, Z-axis adopts an independent lubricating oil recovery system, without manual oil discharge
8, Ram with balance cylinder, Make higher Z axis speed
Unique spindle insulation structure ensures stable accuracy
2.Features
3.Parameters
4..Company honors
5.International exhibition
