Vibration Machine Vibrating Sieve Mining Machine Gyratory Vibrating Sieve Vibrating Screen

Vibration Machine Vibrating Sieve Mining Machine Gyratory Vibrating Sieve Vibrating Screen

US$39,600.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PXZS
Type
Separating Plant
Object
Salt,Rice,Starch,Cereals,etc.
Separation Mode
Filter Type
Operating Type
Continuous Type
Installation
Hanging
Centrifuge Type
Disc Centrifuge
Condition
New
Model
Pxzs1224/1230/1236/1524/1530/1536/1830/1836/1840/2
Power
3/4/5.5/7.5/11/15kw
Frequency
750rpm-1000rpm
Amplitude
75mm~90mm
Usage
Industrial
Feeding Size
<75mm
Layer No.
1-5
Product Type
Chemicals or Food
Width
1200mm-2000mm
Length
2400mm-5000mm
Transport Package
Standard Export Package, It Will Subject to The AC
Specification
ISO9001: 2000/ CE
Trademark
PK
Origin
Henan, China(Mainland)
HS Code
8474100000
Production Capacity
400 PCS/Year

Product Description

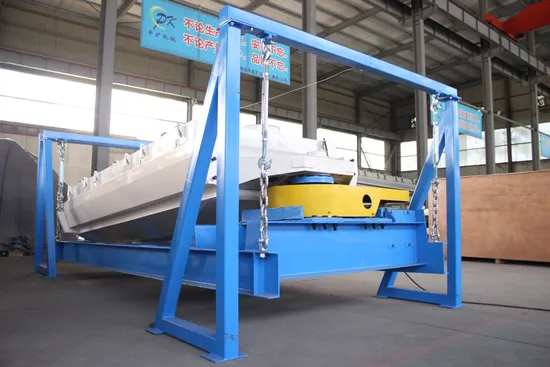

Product Description of PK rotex screener machines
History of PK rotex screener machines
As one manufacturer of gyratory screener in China, PK Machinery Co., Ltd start to design and produce PK gyratory screener from the year of 1998, and PK Machinery Co., Ltd has supplied hundreds sets of rotary screener (gyratory screener) in China market in the last 15 years. PK Machinery also export PK gyratory screener to oversea successfully.
PK Machinery Co., Ltd accumulate plenty experience on PK gyratory screener in the last 15 years, we improve and develope this screen continuously during equipment operation and according the advice of the customer of PK rotary screener (gyratory screen).
Following is the brief introduction of PK gyratory screener, if you interested in PK gyratory screener, please feel free to leave me your message and we will you reply you back soon.
Brief introduction of PK rotex screener machines
We call this type screen gyratory screener because it do a circle movement on a almost horizontal plane. We mainly use it for screening urea granulation and other fertilizer, but it also could handle other bulk and fine material such as grain, sand and salt.
We had supplied hundreds sets of type screen own plenty experience on this equipment.
1. Features of PK rotex screener machines
PK Gyratory Screener is a new kind of screen machine especially for urea, ferlizer, grain, cereal such as granular material. There are following advantages: Reasonable design, stable running, full-sealed construction, no dust pollution, plugged hole proof, sticking proof etc. It is more obvious to carbamide screening with strong hygroscopicity, big viscosity, easy plugged hole and sticking. Reduce validly base dynamic load for adopting rotary principle.
2. Advantages
1).Automatic cleaning- Bouncing balls keep screen openings clean and maintain efficiency and capacity.
2).Screen long service life- No vertical component avoid the impact and damage of material to screen.
3).Full utilization of screen surface- Gyratory reciprocating motion ensures material constantly contact with screen surface.
4).Environmentally Friendly- Fully enclosed structure,no dust pollution,improve working conditions for operators as well.
5).Top-class design -Mature technology, easy installation and maintenance, convenient and quick screen replacement.
6).Customized order- multi- layer,different capacity and mesh size can be customized according to customer's demand.
7).Quick Screen Changes-Quick release device is provided to take down the net rack and replace the screen rapidly.
8).Various sieving solution- Gyratory screen allows separations with openings from 12mm to 325mm.
9).Gyratory-reciprocating motion provides efficient distribution, stratification, and separation resulting in higher yields and less rejection of good material.
10). Stable operation, high performance, reduce the screening costs,only need single operator to inspect and maintain.
11). High quality and wearable structure featuring abrasion and corrosion resistant stainless steel.
12).Motor brand can be domestic or imported: Yutong, Shuangyu, ABB, Siemens, WEG etc;
3. Application of PK rotex screener machines
PK Gyratory Screener is a new screening device which is developed mainly aiming at screening of bulky urea and fertilizer, also used widely for screening sugar, salt, activated carbon, sand, stone powder, grain etc.
Want more information of PK gyratory screener, please leave your message, we will contact your soon.
No. of Deck Model Screen Surface Size (W*L) Screen Box Motion Stroke Motor
Power Rotate Speed
(mm) (mm) (kw) (rpm)
1-5 PXZS 1224 1200*2400 75-90 5.5 1450
PXZS 1230 1200*3000 5.5 1450
PXZS 1236 1200*3600 5.5 1450
PXZS 1524 1500*2400 5.5 1450
PXZS 1530 1500*3000 5.5 1450
PXZS 1536 1500*3600 5.5 1450
PXZS 1824 1800*2400 7.5 750
PXZS 1830 1800*3000 7.5 750
PXZS 1836 1800*3600 7.5 750
PXZS 1842 1800*4200 7.5 750
PXZS 2036 2000*3600 7.5 750
