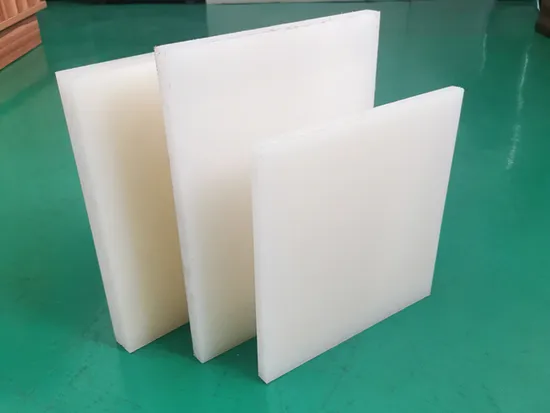

PVDF Sheet 2.0mm 3.0mm 4.0mm 5.0mm Plastic Composite Sheet

PVDF Sheet 2.0mm 3.0mm 4.0mm 5.0mm Plastic Composite Sheet

US$27.00 1 Piece (MOQ)

Basic Info.

Water Absorption
0.2%~0.3%
Contraction Percentage
<0.4%
Tensile Strength
30~40MPa
Elongation at Break
300-450%
Package
Pallet, Plywood Case
Productivity
100 Tons/Month
Key Feature
UV Resistant, Creep Resistant, Chemical Resistant
Density
1.78g/cm3
Shore D
80
Tempreature Range
-30-150ºC
Tensile at Break
42-55 MPa
Modulus of Elasticity
1.9-2.2gpa
Specification
A4
Trademark
Yuntian
Origin
Wuhan China
Production Capacity
30000t/Year

Product Description


Product Description
PVDF sheet combines good mechanical, thermal and electrical properties with excellent chemical resistance. It has good resistance to UV, corrosion and radiation and can be used in food contact applications. It also has good wear resistance and sliding properties making it a versatile engineering material.
PVDF characteristic & Apllication Temperature: -30°C up to +150°C. Excellent resistance to UV and weathering. Very good electrical insulation properties. High purity and good resistance to chemicals. Good resistance to wear. Excellent weldability. FDA approved for contact with food. PVDF is widely used in chemical tank linings,semiconductor,pipe fittings,electric plating,sealing,pump valve fluid,photovoltaic(PV),water treatment etc.
Unit: mm
Thickness 1000×2000 1220×2440 1500×3000
Weight Per Piece
Extruded Sheet 2.0 7.20 10.75 16.30
3.0 10.80 16.10 24.25
4.0 14.50 21.50 32.38
5.0 18.00 27.00 40.46
Extruded/Mold Pressed 6.0 21.75 33.00 48.70
8.0 28.92 44.00 64.68
10.0 36.30 55.00 80.75
12.0 43.40 66.50 96.82
15.0 54.50 82.80 121.00
20.0 54.50 82.80 121.00
Mold Pressed 25.0 90.48 138.50 209.00
30.0 107.95 166.50
35.0 126.40
40.0 144.30
50.0 181.26

Wuhan Feitengya Chemical New Material Co., Ltd. was established in 2008 in Wuhan.It is an expert in the supply of fluororesin in the whole industry chain integrating scientific research, development, production and sales. Feitengya takes high-end materials PVDF, FEP, PFA, ETFE, PTFE, PCTFE, as the core and extends to the entire industrial chain such as lithium battery new energy, photovoltaic new energy, environmental protection, 5G industry, coating field, wire and cable, pharmaceutical fine chemicals, aerospace, and automobile fields. Established a good long-term strategic cooperative relationship with many well-known brands, college laboratories, research and development institutions, and production bases around the world, and built a huge production capacity system. The company adheres to the customer-centric and is committed to the development concept of continuously creating value for customers , perceived responsibility, high-quality return, win-win cooperation!
FAQ: •Q: Are you trading company or manufacturer ?•A: We are factory.•Q:May I visit your factory?•A:Sure,sincerely welcome to visit our factory, and we can also pick you up at airport or train station.•Q:What is your main products?•A:We have all kinds of rubber compounds for different field as well as related additives.•Q: Do you provide samples ? is it free or extra ?•A: Yes, we could offer the sample for free charge and you only pay the freight of express.•Q: How much the courier freight will be charged for the samples?•A: Courier freight depends on the quantity, weight, carton size and your area. DHL, FedEx, TNT, UPS, Aramex are available.•Q: How long is your delivery time ?•A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.•Q:Could I use my own logo or design on goods?•A:Yes.Customized logo and design on mass production are available.•Q: What is your terms of payment ?•A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
