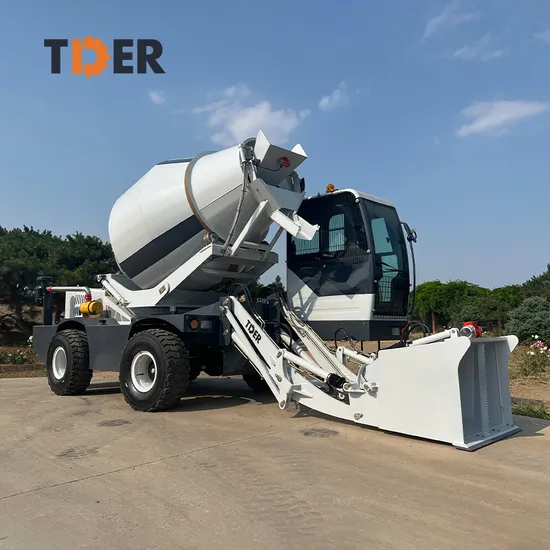

Tder Construction Equipment Diesel Integrated 3-6 Cbm 3.5m3 Small Self Loading Concrete Mixer Truck with Pump Machine

Product Description

Detailed Photos
1.All series of vehicles with standard rear trailer hook, strong traction can drag the walking type of ground pump, tug bucket, etc., to adapt to various conditions of walking. Save the ground pump tractor. If muddy road conditions cause the car to get stuck, the rear tow can also achieve traction escape.
2.TCM40 standard with high pressure car wash pump, sufficient water pressure, can completely wash off the concrete residue on the car. And the service life of the high-pressure car wash pump is far greater than that of the electric car wash pump, and the failure rate is lower.
3.The hydraulic external suction pump is placed before and after to prevent accidental damage and damage, and has a protective cover.
4.High quality slewing bearing, built-in motor with cushioning effect. The screw has a tighter bite to the gear and can carry 80 tons of impact force. When fully loaded, the emergency brake will not appear the phenomenon of tank shaking, the inner ring and the outer ring are all high-strength self-locking fastening bolts, and the turntable will not be loose and there is a gap in the service life of the concrete mixer.
5.The connection point of the steering cylinder is replaced by a thickened sheet formed by laser cutting, which is beautiful, safe and firm.
6.The use of the industry's largest size of the drive shaft bridge and 5-ton loader's drive shaft, such a combination greatly increases the torque better explosion, climbing and high-speed safety. Product Parameters

Model Specifications	Model: TCM35
Model Characteristics	Integrated, movable design, self-assembly, feeding, mixing, and conveying
Functions	Capable of handling concrete, sand, and chemical ingredients, either wet or dry, mixing and conveying the materials to designated locations automatically
Production Rate	Each batch <15 minutes, producing 4 batches per hour (14 m³/h)
Driving Model	4x4
Steering Model	Front-wheel steering
Engine	Yunnei 4102, rated at 2400 RPM, output 76 kW, water-cooled turbocharged
Travel Speed	High speed 40 km/h Low speed 7.5 km/h
Gear position	Four in forward, four in reverse
Tires	70-16 23.5 (steel-wire radial tires)
Mixing Drum	Geometric volume: 5 m³, optimal mixing: 3.0-3.5 m³
Drum Helix Blades	Double helix mixing, equipped with guide spirals for more even mixing. Left-spiral intake, right-spiral discharge
270° Drum Discharge	Drum rotates horizontally up to 270°, allowing for discharge around the vehicle with no blind spots
Chute	Equipped with two detachable auxiliary chutes to extend discharge length
Drum Tilt Angle	16°/16°
Bucket	Capacity: 0.6 m³

*Please contact us if you need more detailed parameters. Packaging & Shipping
*Before delivery, we will arrange our staff to take photos and videos of your machine. *Ropes and triangle blocks will be used for fixing forklifts. *We will also give your heavy-duty forklift waterproof curtain packaging, to prevent the corrosion of rain and sunlight. *Product certificates and nameplates are provided. *A tutorial CD, toolbox and extra paint are included as free gifts.
Certifications
Company Profile
Founded in 2003, TDER Group is an international large-scale machinery manufacturing company, engaged in the invention and sales of various machinery products, including forklifts, loaders, warehouse equipment and port equipment. The TDER Group has established 3 factories. All 25 categories of products have passed the SGC, TUV, BV, INTERTEK and other authoritative international institutions certification. Today, our products have been exported to Brazil, Russia, Australia, Canada, Turkey and other 158 countries and regions, with 56 agents.
Customer Feedback
Professional Service
TDER offers customized services. You can freely change the color, engine, LOGO and more. "TDER makes every mechanical gear customizable."
FAQ
1.What's the Certificate do you have?
TDER workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate.
2.Can you customize and design as the clients' requirement?
TDER will try its best to meet all kinds of clients' special requirements. However, All the customizing
and refit should be implemented safely and scientifically. The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the TDER warranty
policy for each model.
4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5.What's the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.
6.What logistics ways we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is
30 days.
