Plastic Rectangular Trays Thermoforming Machine

Plastic Rectangular Trays Thermoforming Machine

US$80,000.00-120,000.00 1 set (MOQ)

Basic Info.

Certification
ISO
Column number
Four Column
Molding Method
Thermoforming
Automatic Grade
Automatic
Suitable Material
PP/PS/Pet/PVC/HIPS/PLA/HDPE/PE
Production Speed
20-30 Cycles/Min
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
Container
Specification
Forming size: 710*600mm
Trademark
BOXU
Origin
Jiangsu, China
HS Code
84774090

Product Description

Product Description

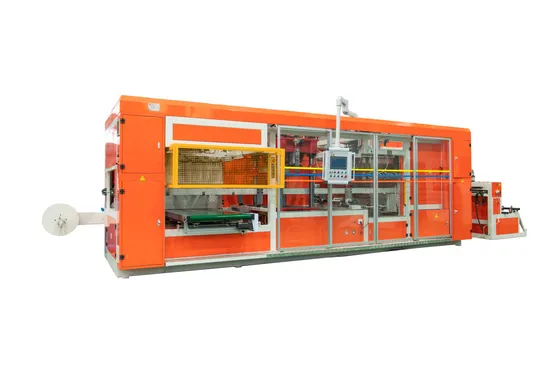

High Speed Plastic Box thermoforming Machine BOXU-7160
1- Max. Forming Area 710× 600mm
2- Max. Down Forming Stroke 150mm
3- Max. Up Forming Stroke 150mm
4- Sheet Thickness 0.20-2.5mm
5- Max. Forming Height 120mm
6- Max. Roller Diameter Φ 1200mm
7- Air Pressure 0.6-0.80mpa
8- Air Consumption 3000L/min
9- Max.Speed 35Cycles/min
10- Power (Three Phase Four Wire) 380V/440V 50/60HZ
11- Heating Power 120kw
12- Main Motor Power 16kw
13- Feeding Motor Power 4.5kw
14- Scrap Rewinding Motor Power 0.55kw
15- Machine Weight 11000kgs
16- Dimension 9000× 3650× 3500mm

Applicantion:
BOXU-7160 Plastic forming Machine is suitable for high quality PP,PET,HDPE,CPLA,PS and other thermoplastic sheets to produce various high-grade thermoforming products.

Company Profile
NANTONG BOXU TECHNOLOGY CO.,LTD. has been specializing in manufacturing thermoforming machines for 15 years. As one of the China largest thermoforming machine factory we have a footprint that touches nearly every pharmaceutical packaging industry,food packaging industry,electronic industry,automobile industry and home appliance.

Cooperating with many famous suppliers, my machines are popular with China domestic market and South-East of Asia, East Europe, Latin America.

Detailed Photos

Packaging & Shipping

FAQ
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your factory mainly in?
A: We are mainly produce Thermoforming Machine for over 15 years.
3. Q: How's your strength of your factory?
A: We have a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.
4.Q: If your company has passed some certificates?
A: Yes, we have passed ISO.
