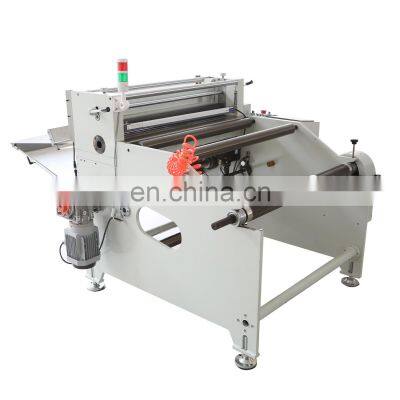

Automatic HDPE Plastic Roll To Sheet Cutting Machine

Product Description

Product Description
PVC PET Plastic Film Roll to Sheet Cutting Machine Automatic HDPE Plastic Roll To Sheet Cutting Machine Functional Characteristics:1.DELTA servo motor pull the material,high precision.2.MITSUBISHI PLC with touch screen to set any length,quantity,speed. 3.3 inch inflatable shaft for unwinding.4.20mm thickness steel wall make machine run stable.5.Pulling roller coat thick PU rubber and won't scratch the material.6.Polished and anodized aluminum guiding roller,very smooth and never harm the material.7.Long service life of the SKD11 cutting blade and cut the sheet edge smoothly. 8.The unwind shaft can be made as take off.9.Electrical static eliminator to remove static electricity.10.Other standard machine:360mm,500mm,600mm,1000mm,1400mm. Purpose:This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,aluminum foil etc. Technical Data: ModelDP-1000 Automatic HDPE Plastic Roll To Sheet Cutting MachineMax Feeding Width ( mm )1000Max unwind roll diameter(mm )800Max unwind roll weight(kg)50-60Unwind shaft diameter3 inch or 6 inchCut 600mm speed ( times/minute )50-80 Total Power3kwPLCMITSUBISHIServo Motor Servo Driver DELTA Precision ( mm )±0.10 Voltage380V 50HZ Electrical listing:Touch ScreenKUNLUNTONGTAIMade in ChinaProgrammable ControllerMITSUBISHIMade in JapanServo DriverDeltaMade in TaiwanServo MotorDeltaMade in TaiwanMotor of cutting knifeSHENLIMade in ChinaAC ContactorCHNTMade in ChinaSolid State Relay 20AGOLD ELECTRICAL CONTROL Made in China
