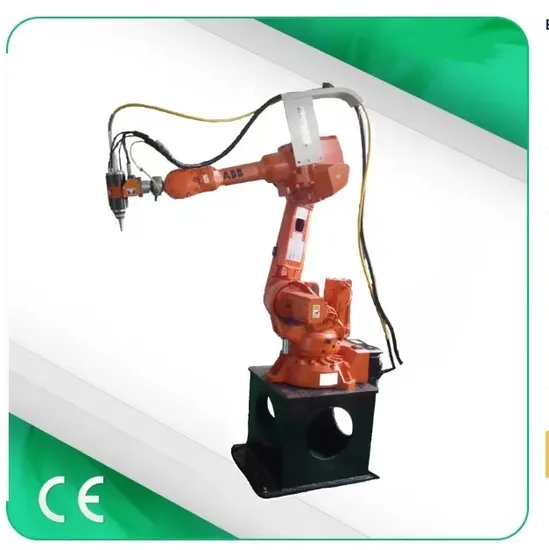

6 Axis Automatic Robot Arm Laser Welding Machine

6 Axis Automatic Robot Arm Laser Welding Machine

US$11,500.00
1-9 Pieces
US$8,800.00
10+ Pieces

Basic Info.

Model NO.
DPX-C2000
Application
Electronic Industry, Automotive Industry, Manufacturing Industry
Technical Class
Continuous Wave Laser
Control
Manual
Power Density
Heat Conduct Welding
Laser Classification
Optical Fiber Laser
Type
Portable Welding Machine
Transport Package
Wooden Case
Specification
1160x630x1140mm 200kg
Trademark
Horizon laser
Origin
China
HS Code
8515809090
Production Capacity
1000PCS/Year

Product Description

Product Description
Robot Welding Workstation 1. The manipulator does not need a laser signal module, and the direct IO signal communicates with the welding machine handshake;
2. There are 64 sets of welding process waveforms, which are stored and recalled for welding requirements of different parts of the product;
3. The welding machine integrates functions such as laser control, swing welding head, wire feeding, and air pressure detection;
4. Realize offline multi-document welding processing to avoid incorrect welding caused by computer card machine;
5. Multi-signal closed-loop transmission of laser, laser control unit and manipulator, safe and reliable
Detailed Photos
Appication

Product Parameters

Laser Continuous Fiber Laser
Laser power 1000-6000W
manipulator 6 axis (multi-brand optional)
Welding head Conventional welding head, galvanometer type swing welding head (weld seam 0.2 ~ 5 mm )
Process waveform 64 groups ( IO port call)
Waveform function Laser power, pulse width, start and end arc control, swing length, swing type, wire feed
Load-bearing load 8-20kg (specification optional)
Processing radius 500-2000mm (Specifications are optional)
Targeting Red light indication + CCD vision

Our Advantages

Certifications
After Sales Service
1. 7*24 hour
2. Response time<12 hours
3.Online support
4.Product replacement
5. Customer field service
6. Backup products during repairing for long time cooperators
* International warranty ONLY valid if products are purchased directly from Horizon Laser or authorized local distributors/agents.
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have after sales support?
A: Yes,we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
I am not sure if this machine suitable for my work? A: Don't worry,just tell me your welding materia and welding thickness,then i will recommend you the most suitable machine for you.
