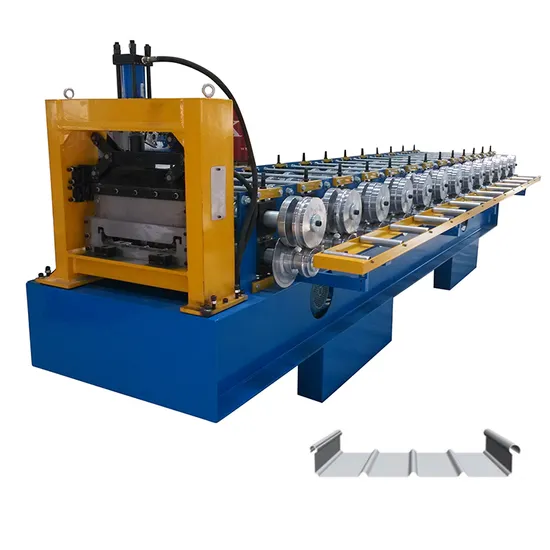

Standing Seam Galvalume Roof Machine

Standing Seam Galvalume Roof Machine

US$20,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YX65-300-400
Tile Type
Colored Steel
Certification
SGS
Condition
New
Customized
Customized
Size
5800*1800*1700mm
Weight
7000kgs
Motor Power
5.5kw*2 Sets
Delivery Time
Delivery Immediately After The Machine Is Assemble
Roller Material
45#Steel
Shaft Material
40cr
Clipper Material
12crmov
Thickness for Steel
0.5-0.8mm
Thickness for Aluminum
0.7-1.0mm Or0.9-1.2mm
Transport Package
Standard Package for Export
Specification
YX65-300-400
Trademark
XHH
Origin
Xiamen of China
HS Code
84552290
Production Capacity
10-15 Sets/Month

Product Description

Focus on roll forming machine for more than 19 year
1. Factory Lifetime Service:offer technical support for the entire life of our machines.
2. Customized Profile:can design the profile according to customer request.
3. One-Year Guarantee Period:supply the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.

Technical Advantages of Using XHH Standing Seam Forming Machine:
1. Straight and Tapered Profile in one machine2. Smart body,available to fix in 20GP container,easy transport to the site3. Can be customized to only straight profile or only tapered profile in one machine4. Easy operation,low maintain cost

1.Roll Forming Machine (1) Material Thickness:0.3mm-0.8mm PPGI and GI (2) No.of Roller Stations:14 to 18 steps
(3) Materal for Rollers: high grade 45#steel polished and plated hard chrome
(4) Material for Shaft:40Cr
2.Cut-Off Device

(1) Material for Cut-off Modular:Cr12mov after treatment (2) Hardness for Heat Treatment:HRC60-62°
(3) Cut-off Type:Hydraulic Cut-off
(4) Motor for Hydraulic Stand:2.2KW
3.PLC Control Box
Type:PLC Frequency Control System with touch screen
4.Profile Drawing for YX65-300-400-425standing seam roofing300/400/425/500mm 65mm
5.Main Technical Data:
Size
YX65-400-425
Dimension
5800*1600*1500mm
Motor Power
7.5KW*2
Hydraulic Power
2.2KW
Forming Steps
13Steps
Forming Speed
8-15m/min
Voltage
380V/50HZ/3PH
Effective Width
400mm,425mm
Material Width
575mm,600mm
Height of Roofing
65mm
Aluminum Thickness
0.7-1.0mm
Steel Thickness
0.5-0.8mm
Control System
PLC Control


Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.
