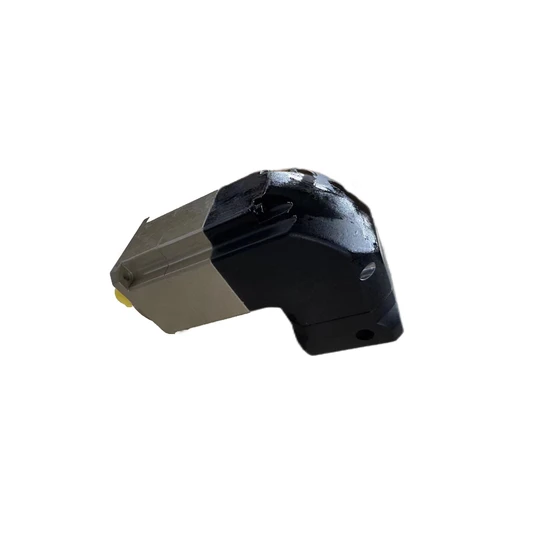

Efficient Durable High Precision Planetary Speed Reducer Gearbox

Efficient Durable High Precision Planetary Speed Reducer Gearbox

US$50.00-1,000.00 1 Piece (MOQ)

Basic Info.

Installation
Horizontal Type
Gear Shape
Bevel Gear
Step
Four-Step
Type
Gear Reducer
Color
Blue Silver Red and So on
Efficiency
95%~96% (Depends on The Transmission Stage)
Housing Hardness
Hbs190-240
Transport Package
Box Good
Trademark
GUGE
Origin
China

Product Description

Product Description
Experience the pinnacle of engineering excellence with our ingeniously crafted Efficient Durable High Precision Planetary Speed Reducer Gearbox. Boasting a streamlined, compact design, this powerhouse delivers unparalleled power and efficiency. The High-Performance Silver Durable Planetary Gearbox encapsulates a lightweight structure that excels in torque without any compromise. Revel in its superior performance that guarantees a stable, whisper-quiet operation, underscored by remarkable durability. Seamlessly installable in an array of configurations, it harmoniously integrates with various motor types, making it an ideal choice for numerous applications, including sewage treatment, the chemical industry, and pharmaceuticals. Unveil a plethora of motor combinations with our Efficient Durable High Precision Planetary Speed Reducer Gearbox. Revel in its versatile installation forms and pioneering structural innovations. Our transmission ratios are meticulously categorized and refined to precisely cater to diverse operational needs, ensuring unmatched performance tailored to each unique requirement. This gearbox embodies adaptability and precision for unparalleled results.Craftsmanship and durability define our Efficient Durable High Precision Planetary Speed Reducer Gearbox. Its housing, forged from reinforced high-rigid cast iron, is a testament to longevity. The gears, crafted from premium-grade alloy steel, undergo a meticulous process of carburizing, quenching, and hardening, followed by precision grinding, resulting in stable transmission, reduced noise, and outstanding load-bearing capacity. The design prioritizes a low temperature rise and an extended service life, making it a perfect fit for metallurgy. Noteworthy features include a minimal output offset, a compact structure optimized for maximum box space utilization, integral casting for enhanced stiffness, increased shaft strength, and prolonged bearing life.
Detailed Photos
Product Parameters
Rated output torque 18.5Nm ~ 13800Nm
Primary reduction ratio 3,4,5,7,10
Secondary reduction ratio 9,12,15,16,20,25,28,30,35,40,50,70,100
Three-step reduction ratio 9,12,15,16,20,25,28,30,35,40,50,70,100
Return clearance 5arcminute ~ 20arcminute
PLX series technical parameters
product model unit velocity ratio serie PLX60 PLX90 PLX120 PLX142 PLX190 PLX242 PLX285 PLX340
Rated output torque Nm 3 level1 135 245 490 1320 1820 4230 8200
4 46.32 162 320 650 1650 2420 5620 9800
5 46.32 162 320 650 1650 2420 5620 9800
7 38.9 130 232 520 1250 1830 3520 9800
10 18.5 72 165 320 820 1150 1820 5000
9 level2 115 245 490 1320 1820 4230 3500
12 27.8 162 245 490 1320 1820 4230 8200
15 27.8 162 245 650 1650 2420 5620 8200
16 27.8 162 245 650 1650 2420 5620 9800
20 46.32 162 320 650 1650 2420 5620 9800
25 46.32 162 320 650 1650 2420 5620 9800
28 46.32 162 320 650 1650 2420 5620 9800
30 135 245 490 1320 1820 4230 8200
35 46.32 162 320 650 1650 2420 5620 9800
40 46.32 162 320 650 1650 2420 5620 9800
50 46.32 162 320 650 1650 2420 5620 9800
70 38.9 130 232 520 1320 1830 3520 5000
100 18.5 72 165 320 1650 1150 1820 2500
64 level3 46.32 162 320 650 1650 2420 5620 9800
80 46.32 162 320 650 1650 2420 5620 9800
100 46.32 162 320 650 1650 2420 5620 9800
150 46.32 162 320 650 1650 2420 5620 9800
200 46.32 162 320 650 1650 2420 5620 9800
250 46.32 162 320 650 1650 2420 5620 9800
350 46.32 162 320 650 1650 2420 5620 9800
400 46.32 162 320 650 1650 2420 5620 9800
500 46.32 162 320 650 1650 2420 5620 9800
700 38.9 130 232 520 1320 1830 3520 5000
1000 18.5 72 165 320 820 1150 1820 3500
Maximum rated torque Nm 2 times rated output torque
Maximum radial force N 1550 3250 6700 9400 14500 50000 60000 70000
Maximum axial force N 775 1625 3350 4700 7250 25000 30000 95000

Installation Instructions
Company Profile
Changzhou Changyulong Reducer Co., Ltd is a prestigious leader in the realm of cycloidal gear reducers, renowned for our extensive production expertise and a robust infrastructure of enterprise and technical management. Our products are crafted to strictly adhere to the JB298281 ministry standards and are validated by the International Provincial Bureau of standards. We proudly present state-of-the-art cycloidal gear solutions that meet the rigorous demands of modern engineering, ensuring unparalleled performance and reliability.
Our groundbreaking cycloidal pinwheel reducers embody the sophisticated planetary transmission principle enhanced with cycloidal pinwheel tooth meshing. This innovative design is a trusted solution across a myriad of industries, including textile printing, dyeing, light food production, metallurgy, mining, petrochemicals, lifting, transportation, and construction machinery. It serves as a vital component for drive and speed regulation, ensuring optimal efficiency and performance.
Our factory's cycloidal reducers are synonymous with peerless quality, steadfast performance, an extensive spectrum of specifications, and highly competitive pricing. Upholding our core philosophy of 'sincerity and credibility,' we prioritize excellence and customer satisfaction above all. The substantial technical and economic advantages of our products have garnered widespread acclaim across various sectors, ensuring they deliver reliable and efficient operation every time.
Certifications
Packaging & Shipping
FAQ
Q: What're your main products?A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.Q: How to select a suitable motor?A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.Q: Do you have a customized service for your standard motors?A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.Q: Do you have an individual design service for motors?A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge. Q: What's your lead time?A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
