Mt-1h Automatic Hydraulic Specimen Precision Metallographic Mounting Equipment Professional Lab-Grade Sample Preparation Machines for Microscopy Analysis

Mt-1h Automatic Hydraulic Specimen Precision Metallographic Mounting Equipment Professional Lab-Grade Sample Preparation Machines for Microscopy Analysis

US$5,410.00
1-2 Pieces
US$4,330.00
3+ Pieces

Basic Info.

Model NO.
MT-1H
Environment
Normal Pressure and Temperature
Display
Digital Display
Performance
Automatic
Power Supply
220V
Weight
0-50kg
Certification
CE
Customized
Customized
Heating Power
2.0kw
Heating Range
100-200
Pressure Range
0 - 500bar
Dimension
400*509*537mm
Transport Package
Wooden Case
Specification
48kg
Trademark
Trojan
Origin
China
HS Code
8474809090
Production Capacity
300PCS/Year

Product Description

Model MT-1H
Power supply220V, 1P, 2.5 Kw, 15A
Heating power2.0KW
Heating controlPower can be set (10-100%)
Sample sizeΦ30mm( Standard), Φ25.4, Φ32, Φ40, Φ50mm(Optional)
Heating range100-200˚C
Holding time0 ~ 99min
Pressure range0 - 500Bar ( Depends on cylinder size )
Heating partSurrounded
Cooling methodAutomatic mode: by time/temperature; manual mode
Cooling rateHigh, medium and low cooling rate
Control panel7-inch touch screen
Water inletOD=Φ8mm connecter,pressure<0.3MPa
Water outletOD=Φ12mm connecter
Ambient temperature-20˚C - 60˚C
Ambient humidity0-95%RH
Dimension (WxDxH)400*509*537mm
Weight48kg

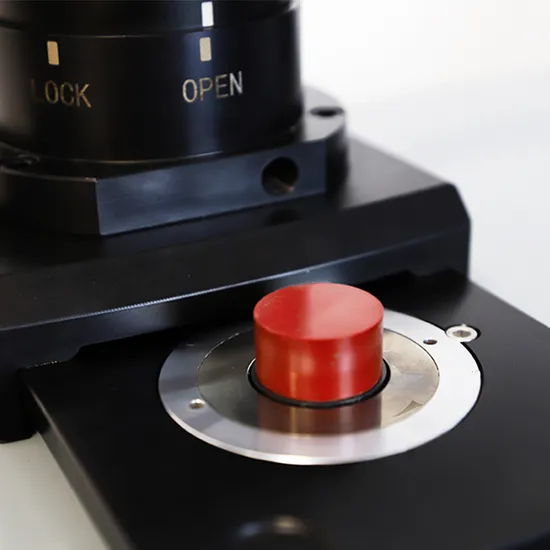

MT-1H Mounting Press
MT-1H is a single-sleeve semi-automatic hot mounting machine with a 7-inch touch screen and an easy-to-operate interface. It adopts hydraulic pressurization method and is suitable for thermoforming of different materials, such as epoxy resin, bakelite powder, acrylic powder, etc. It has the characteristics of strong applicability, high efficiency and good quality.
Features:
7-inch touch screen, simple and easy to understand operation interface;
15 groups of commonly used programs can be saved, heating power can be set, real-time display of change curve in temperature and pressure;
The cooling temperature or cooling time can be used as the end condition;
The bottom is equipped with a collection tank;
Horizontal push-pull sliding cover makes locking easier and more convenient;
Heating overload protection against overheating;
Quickly replaceable sleeves for more flexible use. More Related Products
Scope of application
Recommend for you
Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
Q: I didn't use this kind of machine before, is it easy for me to operate?A: We will send you how-to tutorials and guide video in English which can teach you how to operate the machine. We can also assistyou by E-mail, phone call, online group chat and any other ways if you still have trouble handling it.Q: If the machine has problem in my place, how could I do?A: We could send free parts to you in warranty period if machines have any problem under normal use.Q: What is the price and payment terms?A: EXW, CIF, FOB we all can accept payment: TT/Paypal /LC/Western Union.etc
