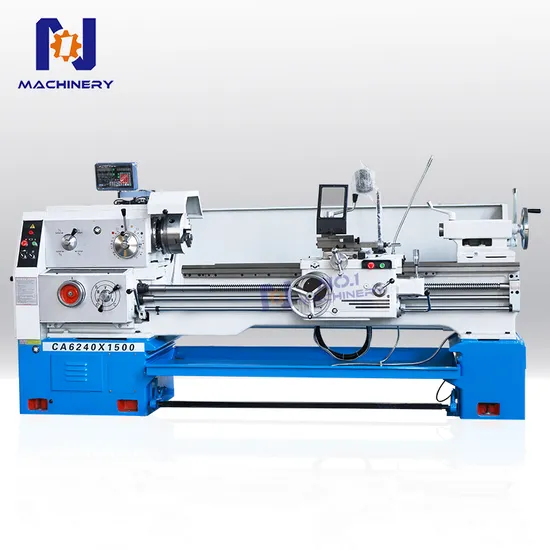

Conventional Gap Bed Lathe Ca6140 Ca6240 Manual Horizontal Turning Lathe 210 Lathe Machine

Conventional Gap Bed Lathe Ca6140 Ca6240 Manual Horizontal Turning Lathe 210 Lathe Machine

US$6,500.00
1-4 Pieces
US$6,000.00
5+ Pieces

Basic Info.

Model NO.
CA6240
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001, EAC
Condition
New
Max. Swing Over Bed
400mm
Max. Swing Over Carriage
210mm
Max. Swing in Gap
630mm
Effective Gap Length
210mm
Max. Length of Work Piece(mm)
750 or 1000 or 1500 or 2000 or 3000
Hole Though Spindle(mm)
52/80/105
Main Motor Power
7.5kw
Width of Bed
400mm
Spindle Bore/Spindle Bore Front Taper
52/Mt6[80]
Weight of Lathe
2200kg
Transport Package
Wooden Box Packaging for Sea Transportation
Specification
3168*1000*1267mm
Trademark
ZaozhuangNo. 1
Origin
China
HS Code
8458190000
Production Capacity
5000000

Product Description

Product Description
CA series lathes are capable of turning various materials' end faces, inner and outer cylinders, conical surfaces, and other rotating surfaces. It can accurately process various metric, inch, module, and diametral pitch threads. In addition, tasks such as drilling, reaming, and pulling oil grooves can also be easily completed.
Key Features:
High-speed dynamically balanced spindle with advanced machine tool technology.
Solid cast iron structure ensures rigidity in the bed, headstock, and saddle.
Stress-relieved bed and induction-hardened guideways for enhanced rigidity and longevity.
Precision-ground slideways guarantee high accuracy across the machine.
Extra heavy ribbed bed and hardened, ground gears for durability.
Large spindle bore (105mm) accommodates larger workpieces.
Supports diametric, inch, module, and metric threads.
Joystick control for X and Z feed, mounted on the support for ease of use.
Product Parameters
PARAMETER ITEM
UNIT
CA6140A
CA6240A
CA6150A
CA6250A
Max. swing over bed
mm
400
400
500
500
Rotation diaeter on tool post
mm
210
210
300
300
Swing diameter in saddle x effective length
mm
-
630x210
-
720x210
Maximum workpiece length / Maximum turning length
mm
750/650 1000/900 1500/1400 2000/1900
Distance from spindle center to bed plane guide
mm
205
205
250
250
Spindle Bore/Spindle Bore Front Taper

Φ52/MT6[80]
Spindle speed series forward/reverse

24/12
Spindle speed range forward
r/min
50Hz:1-1600 60Hz:12-1680
Reverse
r/min
50Hz:14-1580 60Hz:16.8-1896
Vertical feed/Standard feed
mm/r
0.08-1.59
Minimum feed
mm/r
0.028-0.054
Maximum feed
mm/r
0.86-3.16
Rapid moving speed of tool holder
m/min
portrait4 horizontal2
Max stroke of upper/lower turret
mm
140/320
140/320
140/320
140/420
Rotation angle of tool rest turntable
.
±90
Distance from spindle centerline to tool support surface
mm
26
Tool holder section size
mm
25x25
Lead screw pitch
mm
12
Main motor power
kw
7.5
weight of lathe (750mm)
kg
1990
1990
2060
2060
weight of lathe (1000mm)
kg
2070
2070
2140
2140
weight of lathe (1500mm)
kg
2220
2220
2290
2290
weight of lathe (2000mm)
kg
2570
2570
2640
2640
Lathe outline size(750mm)
mm
2418x1000x1267
2418x1000x1267
2418x1037x1312
2418x1037x1312
Lathe outline size(1000mm)
mm
2668x1000x1267
2668x1000x1267
2668x1037x1312
2668x1037x1312
Lathe outline size(1500mm)
mm
3168x1000x1267
3168x1000x1267
3168x1037x1312
3168x1037x1312
Lathe outline size(2000mm)
mm
3668x1000x1267
3668x1000x1267
3668x1037x1312
3668x1037x1312

Detailed Photos
MANUAL CHUCK
The standard version is equipped with a 3-jaw or 4-jaw manual chuck. Customers can choose chucks of different sizes according to their requirements. A hydraulic chuck
FOUR-STATION TOOL HOLDER
Four-station tool holder,fast-moving mechanism,can be operated with one hand, and tool holder pro-tection is optional.
QUENCHED TAILSTOCK
The tailstock sleeve is treated with high-frequency quenching and carefully ground to prevent wear and tear.
HIGH PRECISION SCREW
It has good wear resistance and accuracy retention,ensuring that the machine can be used for a long time and has a long life.
2 AXIS DRO
2 axis digital readout,need extra cost.
