Underground Shotcrete Machine Concrete Spraying Machines Mining Concrete Sprayer
| US$150,000.00-160,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
UPS-15JT
Type
Shotcrete
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
15 Cubic Meters/H
Feeding Height
1400mm
Vibrating Amplitude
None
Certification
ISO9001: 2000
Condition
New
Color
Orange
Transport Package
Bulk
Specification
5680x1850x1980mm
Trademark
Jarlo
Origin
China
HS Code
870590000
Production Capacity
1000 Sets/Year
Product Description

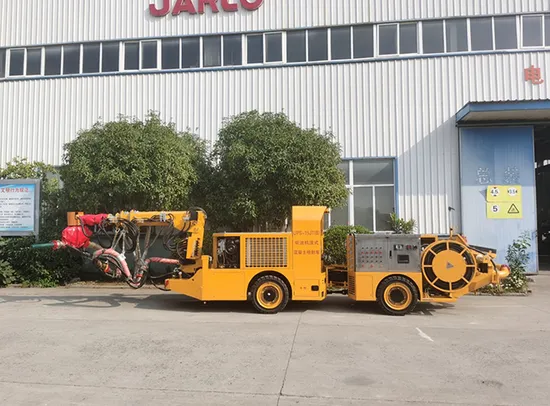

UPS-15JT Diesel Wet Concrete Spraying MachineAppearance
Dimensions
Turning Radius
Spraying Scope
Main configuration and technical parameters
| Items | Parameters and configuration | Remarks | ||
| Parameters | UPS-15JT(A) | |||
| Total Weight(kg) | 8000 | |||
| Dimension(L×W×H,mm) | 5680×1850×1980(±50) | |||
| Actual concrete spraying capacity | 15m³/h | |||
| Power mode (dual power) | Driving: Diesel engine (retractable boom, pumping and cleaning equipment) Working: External 380V AC | |||
| Total power (engine/motor, kw) | Engine:48 kw Motor:30+30(Total Power 60kw) | |||
| Maximum concrete spraying pressure (MPa) | 7 | |||
| Configuration | ||||
| Chassis | Manufacturer | Anhui Jarlo Construction Machinery Co., Ltd. | ||
| Engine | Type | Four-cylinder water-cooled turbo | ||
| Manufacturer | Yuchai | |||
| Rated power(kw/rpm) | 48/2200 | |||
| Exhaust emission standard | National 4 | |||
| Driving and steering | 4-Wheel drive, articulated steering | |||
| Front axle/rear axle manufacturer | Fenyi | |||
| Articulate Steering Angle(°) | 40 | |||
| Brake system | Driving: hydraulic wet type Parking: spring brake, hydraulic release | |||
| Gradeability | 20° | |||
| Turning radius | 2500/4390 | |||
| Driving speed | Max. 10km/h | |||
| Min. Ground Clearance(mm) | 220 | |||
| FOPS & ROPS | Satisfied | |||
| Items | Parameters and configuration Model:UPS-15JT(A) | Remarks | ||||
| Concrete jet pump | Manufacturer | Anhui Jarlo Construction Machinery Co., Ltd. | ||||
| Type | Piston pumping system | |||||
| Capacity(m3/h) | 15 | |||||
| Concrete specification | slump | 12~18(cm) | ||||
| Max.Aggregate size | 15mm | |||||
| Shotcrete aggregate particle size | Max. 15mm | |||||
| Concrete delivery valve type | S Pipe valve | |||||
| Concrete pumping pressure | 7(MPa) | |||||
| Concrete bore size × stroke | φ140×550mm | |||||
| Main cylinder diameter | 80mm | |||||
| Hopper volume | 0.4(m3) | |||||
| Hopper loading height | 1m | |||||
| Vibrator | Electric vibrator and stirrer, bottom opening discharge gate | |||||
| Boom of concrete spraying machine | Manufacturer | Anhui Jarlo | ||||
| Structure type | Main arm rotation, spray arm pitch + telescopic | |||||
| Maximum effective spray range | Upward | 7m | ||||
| Forward | 6m | |||||
| Downward | 2m | |||||
| Width | 12m | |||||
| Boom rotation angle | 360° | |||||
| Boom pitch range | (Upward 64° / Downward 40° ) | |||||
| Axial rotation range of nozzle sea | 360(°) | |||||
| Axial swing range of nozzle seat | 240(°) | |||||
| Nozzle swaying angle+movement | 8°*360° Rotation | |||||
| Operation | Dual control: 100 meters wireless remote control + 16 meters wired | |||||
| Remote control system | JARLO | |||||
| Boom balance valve | Italian OLEOWEB | |||||
| Conveying pipeline(mm) | Steel pipe:100-63 Hose:63 | |||||
| Conveying pipeline cleaning | Water+Air Washing | |||||
| Hydraulic system | Main oil pump | Type and manufacturer | Electric proportional piston pump PUSH | |||
| Rated pressure | 28(MPa) | |||||
| Flow | 88(L/min) | |||||
| Main pump valve | Taiwan Yongzhen | |||||
| Items | Parameters and configuration Model:UPS-15JT(A) | Remarks | ||
| Swing cylinder valve | Taiwan | |||
| Auxiliary oil pump | Type | Piston pump | ||
| Rated pressure | 28(MPa) | |||
| Flow | 41(L/min) | |||
| Air compressor | Nominal volume flow | 6 m3/min | ||
| Motor nominal power | 30 kw | |||
| Exhaust pressure(Mpa) | Rated pressure 0.55MPa | |||
| Accelerator automatic batching system | Manufacturer | JARLO | ||
| Type | Hose pump | |||
| Flow | 0~800(L/h) | |||
| Delivery pressure | 10(bar) | |||
| Accelerator tank volume | 120 L | |||
| High Pressure washing pump | Max. Output pressure (MPa) | 15 | ||
| Output flow(L/min) | 15 | |||
| Water tank volume(L) | 80 | |||
| Electrical System | Motor protection level | IP55 | ||
| Safety protection | Leakage protection, safety grounding | |||
| Controller form and manufacturer | Special controller, Germany IFM | |||
| Motor brand | Wannan motor | |||
| Low voltage control electrical appliance brand | Schneider | |||
| Cable | Cable drum drive method | Hydraulic drive | ||
| Cable specifications | 3×35+1×16 | |||
| Cable length | 50 | |||
| External power requirements | AC 380V,150KVA | |||
| Other configurations | working lamp | LED | ||
| Hydraulic legs | Available | |||
| DOC+CDPF | Available | |||
