Fire Fighting Fire Alarm Smoke Detector for safety Alarm System

Product Description

Introduction

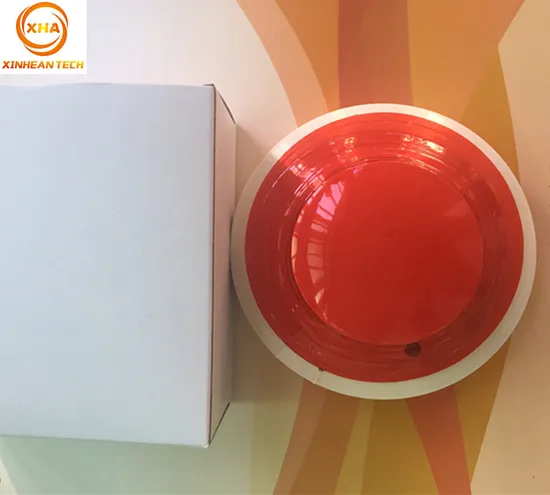

CA9001K photoelectric smoke fire detector adopts non-polar signal two-bus communication mode, which can be used for smoke detection in the control box of fire shutter door/fire rolling shutters, and can also be connected to the circuit of various fire alarm controllers produced by our company to realize smoke detection and early alarm monitoring functions.
Parameters

Product Name	2 Wire Smoke Detector	Loop Bus wired	Non-polarity 2 wired.
Nominal Votage	DC 24V	Work Voltage	DC12V~DC24V
Monitor Current	≤350uA	Alarm Current	≤2mA
Led Indicator	Monitor Status: Red led flash slowly. Alarm Status: Red led always light on	Operating Environment	Temperature -10°C~+50°C Humidity ≤95%.
Dimensions	φ100mm×52mm	Product standard	CCCF/CE

Product Range
4-wire smoke detectors with relay output.
2 wire smoke and heat detectors for switch fire sensor
Standalone smoke detectors and combustible gas detector
Explosion-proof product for fire alarm system
Addressable fire alarm system
Wireless alarm system
Electrical fire monitor system
Extinguishing control system
Fire door monitor system
Fire extinguishing Water cannon System
Service
1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.
