Handheld Laser Welding Machine with Wire Feeder 3000W

Product Description

Product Description

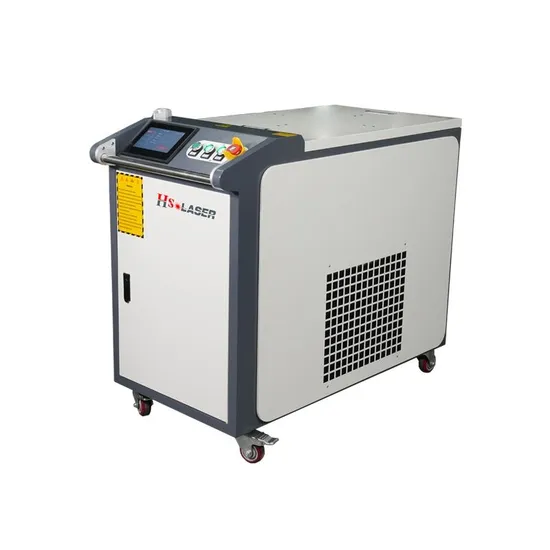

3000W Manual Handheld Laser Welding Machine with Wire Feeder
00:
00:38



Handheld Fiber Laser Welding Machine
Handheld laser welder is quite fast and easier than traditional MIG & TIG Welding
Experienced MIG and TIG users benefit from the more rapid and flexible processing capabilities of fiber handheld laser welder
Up to 4X faster than TIG
Easy to learn and operate with highest process consistency
High quality welding of thick, thin and reflective metals without distortion, deformation, undercut or burn-through
Welding of dissimilar metal parts of different thicknesses
Dramatically low heat input and minimized heat affected zone
Minimal part setup and post-processing grinding or polishing
Increased productivity with no need for machining or straightening deformed parts.

Double wobble weld head technology
It can perfectly replace some traditional argon arc welding and electric welding in the welding of thin stainless steel plate,
iron plate, aluminum plate and other metal materials;
Light weight, small size, ergonomic design and comfortable grip;
The operation is easy to get started, and the requirements for operators are extremely low;
Beautiful welding seam, fast speed, no welding marks, no discoloration, no need for later polishing;
Strong anti-interference.
Double pendulum laser welding head can weld aluminum materials

Control system
The control system come with a few kinds of mode,CW model, PWM model Arc model.The control screen directly digitally sets the
parameters of the wire feeder;
The system monitors the operating status in real time, monitors and collects the operating status of the laser, chiller, and
control board;
Support Chinese, English, Korean, Japanese, Russian, French, Spanish, Israeli language systems

Wire Feeder.
1000W and 1500W support 0.8mm 1.0mm 1.2mm wire, 2000W support 0.8mm to 1.6mm.
Wire send and back speed adjust through touch panel.
If two weld metal gap more than 0.2mm that need filler wire

Weld method
Flat position weld
Horizontal position weld
Vertical position weld
Overhead position weld

Water cooled system
The water cooling system cooled laser source and laser head, normal we adjusted water chiller temperature well before ship to customers. So normal customer received the machine no need adjust the water cooling system. Just fill up distilled or pure water to the water tank.

Specification

Machine model	HS-HW1000 / HS-HW1500 / HS-HW2000 / HS-HW3000
Brand Name	HS LASER
Laser power	1000W 1500W / 2000W 3000W
Power supply	AC 220V-240V Single phase 50/60HZ / 380V 3 phase 50/60Hz
Laser source	Fiber Laser source
Laser wavelength	1064nm
Fiber cable length	Standard 10m (Customized 15m 20m 25m)
Control system	PLC control system
Water quality require	distilled water or purified water
Warranty	Laser source 2 years warranty, other parts 12 months
Wire feeder	Support 1.0mm 1.2mm 1.6mm
Language	English, Chinese, Spanish, French, Polish, Russian, Korean
Package Weight	240KG
Package Size	1200x800x1480mm

Company Profile
About Us HS LASER manufactures product quality, service, after-sales and integrated services. Creating actual value for customers is the basic meaning of our existence, HS LASER is committed to the fields of laser welding machines, laser cleaning machines, and laser cutting machines.
Since 2013, HS LASER has been focusing on laser welding, laser cleaning machines, laser cutting machines, as well as sheet metal technology processing equipment, such as bending machines, shearing machines, routers, etc. From semiconductor lasers, YAG lasers to the current fiber laser welding technology, it has always been a leader in laser welding. From pulse laser cleaning machine, continuous laser cleaning machine, pulse and continuous compound laser cleaning machine are our main production equipment. The application fields of laser equipment include aerospace, hardware processing, gold and silver jewelry manufacturing plants, high-speed train infrastructure, viaducts, natural gas pipelines, automobile manufacturing, large ship manufacturing, etc. are our main customer groups. We uphold our commitment to customers to bring customers better service, quality, after-sales, respond to requests, and give immediate feedback to create more value for customers.

Certifications




Manufacturing Workshop
Packaging and Delivery
The laser cleaning machine and laser welding machine order less 10 sets that lead time is 10 to 15 working days
The laser cutting machine lead time at least over more 25 working day.
If the weight of the laser equipment is less than 100kg, usually our customers will choose DHL FedEx or air freight for delivery. Such as laser handheld welding machine, laser automatic welding machine, laser cutting machine and other heavy equipment will choose the trade terms and shipping methods of DDP or CIF FAC by sea.
