US$1,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Name
Aluminum Window Four Head Corner Crimping Machine
Function
Window Corner Combination
Cutter Specification
Dia 5,8mm
Operation Air Pressure
0.6~0.8MPa
Transport Package
Wood Package
Specification
880x700x1600mm
Product Description
Product Description
Specification:

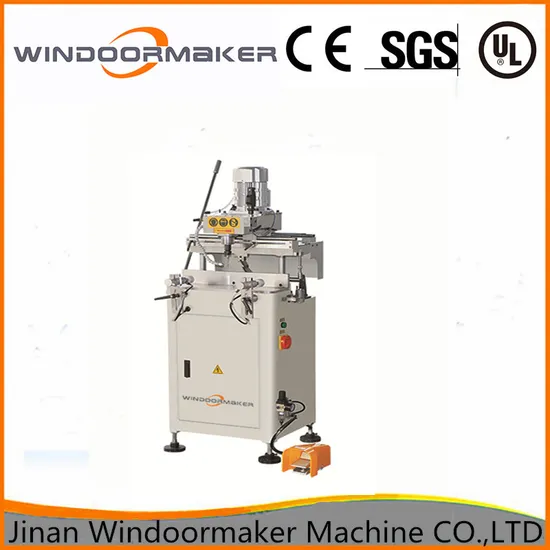

Used for milling production of all kinds of holes and slot in aluminum window and door. Guiding device for machine head vertical moving enhanced the milling distance and accurate position Linear bearing used in the level moving ensured the accurate position for hole/slot shape milling. High steel body with enhance design to ensure the stable working. Technical Parameter:
Power supply | Made to order |
Operation air pressure | 0.5~0.8Mpa |
Motor power | 1.1KW |
Air consumption | 30L/min |
Milling cutter rotary speed | 12000r/min |
Milling cutter specification | φ5×60,φ8×80 |
Drill template specification | 100mm×235mm(WxL) |
Z axis vertical stroke | 120mm |
Dimension | 880×700×1600mm(L*W*H) |
Weight | 220kg |
Certifications
Company Profile
Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.
Machine at old customer
Packaging & Shipping
