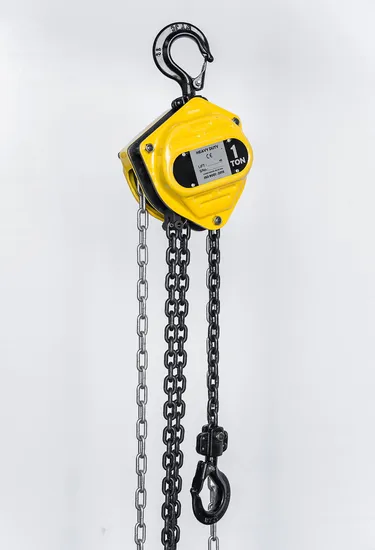

HS-J Type 1t 3m Hand Chain Pulley Block with High Quality

Product Description

Features:
1) 360° swivel hook with cast steel safety latch
2) Rolled edge design to ensure smooth moving of hand chain
3) Durable steel frame with heat treated load bearing components
4) Roller bearings or caged ball bearings on load sprocket & side plate maximize efficiency and serviceability
5) Automatic double-pawl braking system, safety and reliability
6) Simple assembly & low-maintenance features
7) Tested to 150% of rated capacity, safety coefficient at least 4:1
8) Meets or exceeds EN13157 and other pertinent world standards
9) Optional overload protection system and grade 100 load chain
Advantages:
1) Long history and famous brand: Established in 1972, with the famous brand of Shuang Ge, Peace Bird, Wuyi.
2) OEM experience
3) Scale of production: More than 400 employees and covers a total area of about 200,000 square meters.
4) Honor and Certification: CE, GS certification by TUV. Two-time national gold award, this is issued by the government of China.
5) Equipment: 22 sets Original Wafios device.
6) Team: More than 100 professional technical team, and more than 50 salesman with the World-wide sales network.
7) Market occupancy: Almost 90% Southeast Asian market are SHUANG GE brand.

Model		HS-J0.5	HS-J1	HS-J1.5	HS-J2	HS-J3	HS-J5	HS-J10
Capacity	tons	0.5	1	1.5	2	3	5	10
Standard lift	m	2.5	2.5	2.5	2.5	3	3	3
Running Test Load	Kn	0.75	1.5	2.25	3	4.5	6.25	12.5
Effort required to lift rated load	N	221	304	343	314	343	382	392
Strands of load chain		1	1	1	2	2	2	4
Load chain diameter	mm	6	6	8	6	8	10	10
Dimensions(mm)	A	138	164	198	164	195	228	367
	B	114	124	142	124	142	167	167
	C	21.5	27	30	30	37	46	54
	D	145	182	219	182	219	252	252
Min.Diatance between both hooks	mm	271	400	453	420	620	704	720
Net weight	kg	8	10	16	14	24	36	72
Gross weight	kg	10	13	20	17	28	45	87
Package size(L*W*H)	cm3	28×21×17	30×24×18	38×33×20	33×28×19	38×33×20	45×39×24	55×51×29
Extra weight per meter of extra lift	kg	1.7	1.7	2.3	2.5	3.7	5.3	9.7

FAQ
Q1:Why Choose Wuyi Lifting?
A:Wuyi established in 1952,more than 70 years experience in the chain hoist field with professional technical team.
Q2 :Can I have samples to test?
A: Yes, Sample can be sent for testing.
Q3. Q:Guarantee
A: One year
Q4: Q:OEM service
A: OEM service is available.
Q5. What's the lead time for regular order?
A: The normal delivery time is 30-45 days.
Q6. What is your payment terms?
A: 30% T/T in advance, 70% balance before shipment or L/C.
Q7. What is your terms of packing?
A: Cartons with Pallet or wooden case
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
