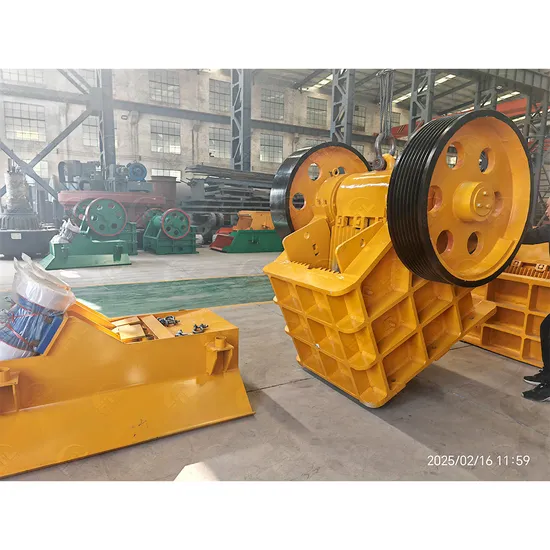

1-5tph Mini Diesel Mobile Rock Crushing Machine/Small Portable Stone Jaw Crusher Price PE 150X250 for Sale

1-5tph Mini Diesel Mobile Rock Crushing Machine/Small Portable Stone Jaw Crusher Price PE 150X250 for Sale

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
PE 150X250
Cutter Material
Jaw Plates
Drive
Electric
Feed Size
300mm-500mm
Jaw Plate Material
High Manganese Steel
Object
Basalt, Copper Ore, Gold Ore, Granite, Iron Ore, Limestone, Quartz
Engineering Solutions
Free
Technical Repair
Free
Design Schemes
Free
Maintenance Support
Free
Technical Support
Free
Consultation
Free
Planning
Free
Equipment Training
Free
Technical Inspections
Free
Delivery Services
Have
Consultation Services
Free
Software Updates and Maintenance Service
Free
Transport Package
Nude Packing
Specification
PE600*900 Weight: 17 tons
Trademark
FTL
Origin
China
HS Code
8474209000

Product Description

Product Description The motor drives the belt and pulley, making the movable jaw move up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, thus pushing the movable jaw plate closer to the fixed jaw plate, and at the same time, the material is squeezed. To achieve the purpose of crushing, when the movable jaw moves downward, the angle between the toggle plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and spring. At this time, the crushed material is discharged from the lower opening of the crushing cavity. As the motor rotates, the crusher's movable jaw makes periodic movements to crush and discharge materials, realizing mass production.
Introduction of Jaw Crusher Jaw Crusher has been widely used in the fields of mining, metallurgical, construction, road and railway building, hydropower and chemistry etc. It is mainly applied in the primary crushing in which the compressive strength of original material is under 320Mpa. Main Features and Benefits 1. Simple structure and easy maintenance. 2. Stable performance and low operating cost 3. Flexible discharge opening setting 4. High resistance to friction, abrasion and compression with longer operating life span. Packaging & Shipping

Operating Principle This jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening. Detailed Photos
Product Parameters
Specifications
Model Size of Feed
Opening(mm)
Max Feed
Size (mm)
Discharge Range
Opening (mm)
Capacity
(t/h )
Motor Power
(kw)
PE-150X250 150X250 125 10-40 1-3 5.5
PE-250×400 250×400 210 20-60 5-20 15
PE-400×600 400×600 340 40-100 15-60 30
PE-500×750 500×750 425 50-100 40-100 55
PE-600×900 600×900 500 65-180 60-140 75
PE-750×1060 750×1060 630 80-180 90-230 90
PE-900×1200 900×1200 780 95-225 150-350 110
PE-1000×1200 1000×1200 850 195-280 180-400 132
PE-1200×1500 1200×1500 1020 150-300 400-800 160
PEX-150×750 150×750 120 18-48 5-16 15
PEX-250×750 250×750 210 25-60 10-40 22
PEX-250×1000 250×1000 210 25-60 15-50 37
PEX-250×1200 250×1200 210 25-60 20-60 45
PEX-300×1300 300×1300 250 20-90 25-95 55
Company Profile
Henan Fantianliang Machinery & Equipment Co., Ltd. is engaged in scientific research, production, and marketing as one of the shareholder enterprises specializing in the production of mining equipment. Currently, the company operates three large-scale production bases. With a standardized plant area of 5,000 square meters and over 600 units of various models of equipment, such as metalworking machinery, welding equipment, and assembly equipment, more than 1,000 workers are employed. Adhering to the core value of "customer first," the equipment ensures high quality and high performance.
