4000b/H 500ml Plastic Injection Blow Molding Machine

4000b/H 500ml Plastic Injection Blow Molding Machine

US$45,000.00-55,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SD-2000-4
Making Method of Parison
Injection Blowing
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Cap Type
Plastic Screw Cap
Product Capacity
4000b/H 500ml
Bottle Size
100-2000ml(Customized)
Cavity
4 Cavities
Clamping Stroke
100mm
Bottom Mold Stroke
30mm
Bottle Separation Distance
114.3mm
Main Machine Material
Stainless Steel 304
Control Type
PLC Automatic Control
Warranty
One Year
Transport Package
Wooden Case
Specification
CE
Trademark
SDEWATER
Origin
Guangdong, China(Mainland)
HS Code
8477309000
Production Capacity
150sets/Month

Product Description

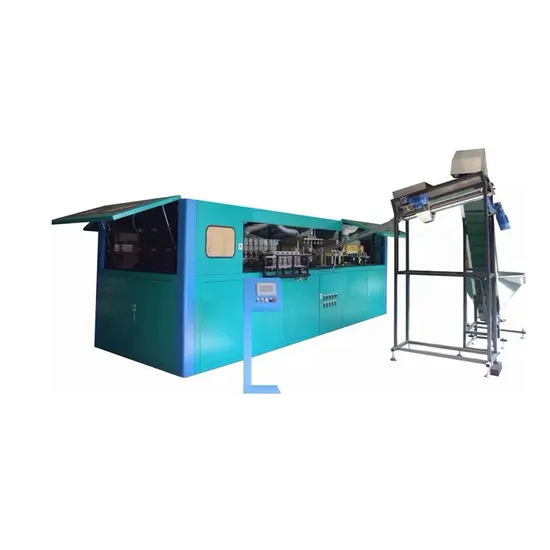

4000b/h 500ml plastic injection blow molding machine
Product Description Application:
Suitable for producing PET plastic containers and bottles from 100-2000ml. It is widely used to produce the carbonated drink bottle, drinking water bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.
Features:
1) Food-grade stainless steel 304 for the parts in contact with product, meet the food industry standard.
2) PLC automatic control with world famous brands like Mitsubishi, Siemens, Omron, etc., good stability.
3) Easy machine operation by using the touch screen like Weinview or Siemens.
4) Standard machine parts, easy to do maintenance work, greatly reduce the maintenance costs and improve work efficiency.
5) Adopting rigid construction sealing, which is not easy to damage and with good leakproofness.
6) Emergency stop and other safety features provide unparallel operator safety.
7) All parts and service plans available.
Machine specifications are as below:
Bottle specification
Max volume of bottle
2000(ml)
Product material
PET
Body diameter
Φ68(mm)
Height
<240(mm)
Mouth diameter
Φ18 ~ Φ38(mm)
Max height of preform
≤115(mm)
Main machine power
Power supply
220V/380V
Rated power
68(kw)
Real power
25(kw)
Size
L*W*H
4500×1920×2100(mm)
Weight
4500(kg)
Production capacity
Depend on bottle design
4000b/h(500ml)

Machine components:
System Name
Part Name
Origin
Remark
Pneumatic part
Valve
USA
PARKER brand
Cylinder
Germany
FEOSTO brand
Electric part
PLC
Japan
Mitsubishi brand
Operating system
France
Schneider brand
Relay
Japan
Omron brand
All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product.
