HLH OEM ODM Manufacturer Wholesale ISO9001 CE&RoHS Weighing Miniature Load Cell Sensors

Product Description

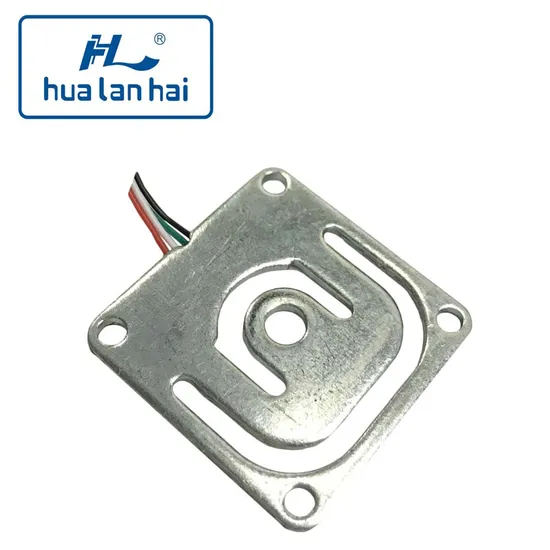

Micro Load Cell (CZL928DA)
Type: single point load cell
Material: aluminum alloy
Surface: anodized treatment
Protection: IP65
Suggested Platform Size:
200 ×200 mm
Application: balances, kitchen scales

1. Rated Load	CZL928DA:50(Kg) CZL928DAD: 10,30,50 (Kg)
2. Rated Output	0.8±0.15mV/V(half bridge), 1.6±0.2mV/V(30, 50kg full bridge ), 1.0±0.2mV/V(10kg full bridge)
3. Zero Balance	±0.3mV/V
4. Input Resistance	1000±10Ω
5. Output Resistance	1000±10Ω
6. Excitation Voltage	9-12VDC
7. Nonlinearity	0.05%F.S
8. Hysteresis	0.05%F.S
9. Repeatability	0.05%F.S
10.Creep(30min)	0.05%F.S
11.Operating Temperature	-10ºC To +50ºC
12.Temperature Effect on Zero	0.05%F.S/10ºC
13.Temperature Effect on Span	0.05%F.S/10ºC
14.Insulation Resistance	2000MΩ(50VDC)
15. Safe Overload	150%F.S
16.Ultimate Overload	200%FS
17. Cable	200mm(flat 4-wires)

Size: Company information:
Guangdong South China Sea Electronic Measuring Technology Co Ltd is specializing in producing resistance strain gauge, load cells, micro load cells, pressure sensors, portable dynamic axle weighing scales and other electrical measurement products.
The company has the formidable scientific research strength, improve the strict quality assurance system and excellent production equipment. The main products of strain gauge, load cell are certificated by RoHS, OIML(issued by EU.) CE etc. , the company subordinate products all technical supervision department issued by the national metrology license. In 2004 and 2005 respectively awarded by "Guangdong province private S&T enterprises " and " the Guangdong Hi-tech enterprise" title, in 2007 Dongguan intellectual property office granted "the patent pilot enterprise".
Our load cells, strain gauges, pressure transducers and portable axle weigh scales have been exported to the world for a long time and achieved a certain market share. We have representative in US, Canada, Germany, British, Russia, India, Australia, etc. By this, we push our high quality products to the world!


Packaging & Shipping Carton Size: 38x30x30cm 400PCS/CTN

FAQ
About samples:
We have stock for samples.
About guarantee:
Three months for free replacement and one year for free repair.
About factory:
We are original manufacturer with 700 employees in Dongguan.
About certificates:
OIML, CE, ROHS, ISO9001
