Wholesale Good Quality Cu/Al//XLPE/Swa/PVC Copper Aluminium Conductor Steel Wire Armoured Low Voltage Yjv32 Yjlv32 Electrical Wire Power Cable

Product Description

Product Description

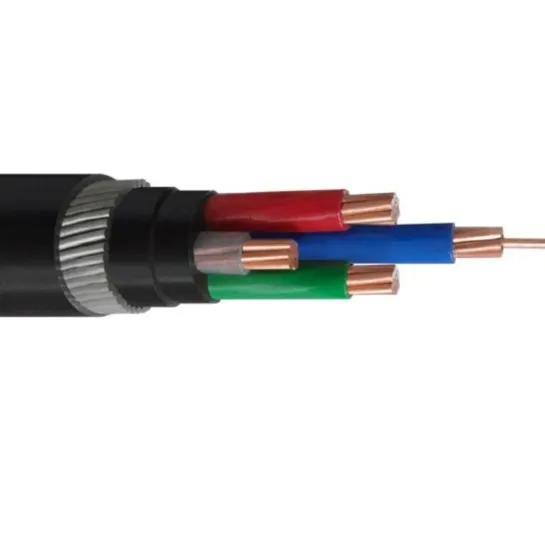

Structure
1. Conductor - Plain annealed class 2 stranded (compacted) copper
2. Insulation - Cross linked polyethylene (XLPE)
3. Filler - Non-hygroscopic material
4. Binder tape - Non-hygroscopic material tape
5. Inner sheath - Polyvinyl chloride compound (PVC)
6. Armor - Galvanized steel wires
7. Binder tape - Non-hygroscopic material tape
8. Outer sheath - Polyvinyl chloride compound (PVC)
Application
To be used for main power supply such as in low voltage distribution power networks, indoor and outdoor areas. It can be installed in ducts, in dry or wet locations, recommended for direct burial where require higher electrical and mechanical protection.
Temperature characteristics
Conductor operating temperature: -15ºC~90ºC
Min. temperatrue laying condition: 0ºC
Conductor emergency operating temperature: 105ºC
Conductor short-circuit operating temperature (5s): 250ºC
Electrical Characteristics
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min
Color
Insulation: According to customer requirements
Outer sheath: Black or according to customer requirements
Standard
Cable design: IEC 60502-1 or AS/ZNS 5000.1
Conductor: IEC 60228 or AS/ZNS 1125
Detailed Photos
Product Parameters

Nom. Cross-Sectional Area of Conductor mm2	Insulation Thickness mm	Inner Sheath Thickness mm	Steel Wire Diameter mm	Outer Sheath Thickness mm	Overall Diameter mm	Approx. Weight kg/km	Max. D.C. Resistance of Conductor@20°C /km
2×1.5	0.7	1.0	0.9	1.8	15.0	330	12.1
2×2.5	0.7	1.0	0.9	1.8	16.0	376	7.41
2×4	0.7	1.0	0.9	1.8	17.0	554	4.61
2×6	0.7	1.0	0.9	1.8	18.2	633	3.08
2×10	0.7	1.0	1.3	1.8	21.0	797	1.83
2×16	0.7	1.0	1.6	1.8	23.5	1124	1.15
2×25	0.9	1.0	1.6	1.8	26.0	1417	0.727
2×35	0.9	1.0	1.6	1.8	30.5	1694	0.524
2×50	1.0	1.0	1.6	1.8	27.0	1787	0.387
2×70	1.1	1.0	1.6	2.0	30.0	2181	0.268
2×95	1.1	1.2	1.6	2.1	34.0	2768	0.193
2×120	1.2	1.2	2.0	2.2	36.5	3500	0.153
2×150	1.4	1.2	2.0	2.4	42.0	4233	0.124
2×185	1.6	1.2	2.0	2.5	45.0	4979	0.0991
2×240	1.7	1.4	2.5	2.8	61.0	8623	0.0754
2×300	1.8	1.5	2.5	2.9	66.0	10229	0.0601
2×400	2.0	1.7	2.5	3.2	73.8	12641	0.047

Nom. Cross-Sectional Area of Conductor mm2	Insulation Thickness mm	Inner Sheath Thickness mm	Steel Wire Diameter mm	Outer Sheath Thickness mm	Overall Diameter mm	Approx. Weight kg/km	Max. D.C. Resistance of Conductor@20°C Ω/km
3×1.5	0.7	1.0	0.9	1.8	15.8	359	12.1
3×2.5	0.7	1.0	0.9	1.8	16.8	378	7.41
3×4	0.7	1.0	0.9	1.8	18.0	454	4.61
3×6	0.7	1.0	0.9	1.8	19.0	545	3.08
3×10	0.7	1.0	1.3	1.8	22.0	721	1.83
3×16	0.7	1.0	1.6	1.8	24.5	951	1.15
3×25	0.9	1.0	1.6	1.8	29.2	1655	0.727
3×35	0.9	1.0	1.6	1.8	32.5	2033	0.524
3×50	1.0	1.0	1.6	1.9	33.0	2577	0.387
3×70	1.1	1.0	1.6	2.0	37.0	3688	0.268
3×95	1.1	1.2	1.6	2.1	43.0	4641	0.193
3×120	1.2	1.2	2.0	2.3	45.0	5561	0.153
3×150	1.4	1.4	2.0	2.4	51.0	7172	0.124
3×185	1.6	1.4	2.0	2.6	56.0	8619	0.0991
3×240	1.7	1.4	2.5	2.8	62.0	10711	0.0754
3×300	1.8	1.6	2.5	3.0	67.0	12862	0.0601
3×400	2.0	1.6	2.5	3.2	76.0	16879	0.047

Nom. Cross-Sectional Area of Conductor mm2	Insulation Thickness mm	Inner Sheath Thickness mm	Steel Wire Diameter mm	Outer Sheath Thickness mm	Overall Diameter mm	Approx. Weight kg/km	Max. D.C. Resistance of Conductor@20°C Ω/km
4×4	0.7	1.0	0.9	1.8	18.0	522	4.61
4×6	0.7	1.0	1.3	1.8	19.0	638	3.08
4×10	0.7	1.0	1.3	1.8	22.0	859	1.83
4×16	0.7	1.0	1.6	1.8	24.5	1458	1.15
4×25	0.9	1.0	1.6	1.8	29.2	1989	0.727
4×35	0.9	1.0	2.0	1.9	32.5	2487	0.524
4×50	1.0	1.0	2.0	2.0	33.0	3407	0.387
4×70	1.1	1.0	2.0	2.1	37.0	4533	0.268
4×95	1.1	1.2	2.0	2.3	43.0	5768	0.193
4×120	1.2	1.2	2.5	2.4	45.0	7438	0.153
4×150	1.4	1.4	2.5	2.5	51.0	8884	0.124
4×185	1.6	1.4	2.5	2.7	56.0	10794	0.0991
4×240	1.7	1.4	2.5	3.0	62.0	13437	0.0754
4×300	1.8	1.6	2.5	3.2	67.0	16224	0.0601
4×400	2.0	1.6	3.2	3.5	74.0	21291	0.047
3×4+1×2.5	0.7	1.0	0.9	1.8	18.7	624	4.61
3×6+1×4	0.7	1.0	0.9	1.8	20.0	752	3.08
3×10+1×6	0.7	1.0	1.3	1.8	23.3	1154	1.83
3×16+1×10	0.7	1.0	1.3	1.8	25.8	1456	1.15
3×25+1×16	0.9	1.0	1.6	1.8	30.0	1905	0.727
3×35+1×16	0.9	1.0	1.6	1.8	33.0	2259	0.524
3×50+1×25	1.0	1.0	1.6	1.9	35.5	2705	0.387
3×70+1×35	1.1	1.2	2.0	2.0	41.0	3729	0.268
3×95+1×50	1.1	1.2	2.0	2.1	46.0	4732	0.193
3×120+1×70	1.2	1.4	2.0	2.3	51.0	6071	0.153
3×150+1×70	1.4	1.4	2.5	2.4	56.5	7198	0.124
3×185+1×95	1.6	1.4	2.5	2.6	62.0	8558	0.0991
3×240+1×120	1.7	1.6	2.5	2.8	68.0	10580	0.0754
3×300+1×150	1.8	1.6	2.5	3.0	75.0	12742	0.0601

Nom. Cross-Sectional Area of Conductor mm2	Insulation Thickness mm	Inner Sheath Thickness mm	Steel Wire Diameter mm	Outer Sheath Thickness mm	Overall Diameter mm	Approx. Weight kg/km	Max. D.C. Resistance of Conductor@20°C Ω/km
5×4	0.7	1.0	1.3	1.8	17.4	597	4.61
5×6	0.7	1.0	1.3	1.8	18.7	734	3.08
5×10	0.7	1.0	1.6	1.8	23.0	1292	1.83
5×16	0.7	1.0	1.6	1.8	25.7	1688	1.15
5×25	0.9	1.0	1.6	1.8	30.2	2343	0.727
5×35	0.9	1.0	1.6	1.9	33.1	2941	0.524
5×50	1.0	1.2	2.0	2.1	38.5	4095	0.387
5×70	1.1	1.2	2.0	2.3	44.2	5407	0.268
5×95	1.1	1.4	2.5	2.5	50.3	7413	0.193
5×120	1.2	1.4	2.5	2.6	54.9	8904	0.153
5×150	1.4	1.4	2.5	2.8	60.8	10784	0.124
5×185	1.6	1.6	2.5	3.0	66.9	13030	0.0991
5×240	1.7	1.6	3.2	3.3	74.1	16291	0.0754
5×300	1.8	1.8	3.2	3.6	86.8	21197	0.0601
5×400	2.0	2.0	3.2	3.9	96.7	26275	0.047
3×4+2×2.5	0.7	1.0	0.9	3.2	18.7	735	4.61
3×6+2×4	0.7	1.0	1.3	1.8	21.0	879	3.08
3×10+2×6	0.7	1.0	1.3	1.8	24.2	1263	1.83
3×16+2×10	0.7	1.0	1.6	1.8	27.5	1616	1.15
3×25+2×16	0.9	1.0	1.6	1.8	32.5	2142	0.727
3×35+2×16	0.9	1.0	1.6	1.8	35.5	2492	0.524
3×50+2×25	1.0	1.0	2.0	1.9	40.0	3408	0.387
3×70+2×35	1.1	1.0	2.0	2.2	45.6	4338	0.268
3×95+2×50	1.1	1.2	2.0	2.4	50.0	5374	0.193
3×120+2×70	1.2	1.2	2.5	2.6	56.9	7145	0.153
3×150+2×70	1.4	1.4	2.5	2.7	62.4	8076	0.124
3×185+2×95	1.6	1.4	2.5	3.0	67.6	9779	0.0991
3×240+2×120	1.7	1.4	2.5	3.2	73.8	12024	0.0754
3×300+2×150	1.8	1.6	3.2	3.4	83.0	14366	0.0601
4×4+1×2.5	0.7	1.0	0.9	1.8	20.0	752	4.61
4×6+1×4	0.7	1.0	1.3	1.8	21.5	913	3.08
4×10+1×6	0.7	1.0	1.3	1.8	25.0	1323	1.83
4×16+1×10	0.7	1.0	1.6	1.8	28.6	1691	1.15
4×25+1×16	0.9	1.0	1.6	1.8	33.5	2256	0.727
4×35+1×16	0.9	1.0	1.6	1.9	36.0	2957	0.524
4×50+1×25	1.0	1.0	2.0	2.2	42.0	3643	0.387
4×70+1×35	1.1	1.2	2.0	2.4	47.0	4614	0.268
4×95+1×50	1.1	1.2	2.0	2.6	51.2	6140	0.193
4×120+1×70	1.2	1.4	2.5	2.8	59.0	7544	0.153
4×150+1×70	1.4	1.4	2.5	3.0	64.0	8733	0.124
4×185+1×95	1.6	1.4	2.5	3.1	71.0	10597	0.0991
4×240+1×120	1.7	1.6	2.5	3.3	78.0	13029	0.0754
4×300+1×150	1.8	1.6	3.2	3.5	88.0	17172	0.0601
*The information in this datasheet is for reference only and is subject to change without notice or liability.

Related Type

Type	Description	No. of cores	Nominal Cross Section of Conductor
YJV32	Copper conductor XLPE insulation Steel Wire Armoured PVC outer sheath Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm²
YJV33	Copper conductor XLPE insulation Steel Wire Armoured PE outer sheath Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm²
ZA-YJV32 ZB-YJV32 ZC-YJV32	Copper conductor XLPE insulation Steel Wire Armoured flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm²
WDZA-YJY33 WDZB-YJY33 WDZC-YJY33	Copper conductor XLPE insulation Steel Wire Armoured Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm²
NH-YJV32	Copper conductor XLPE insulation Steel Wire Armoured fire-resistant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm²
