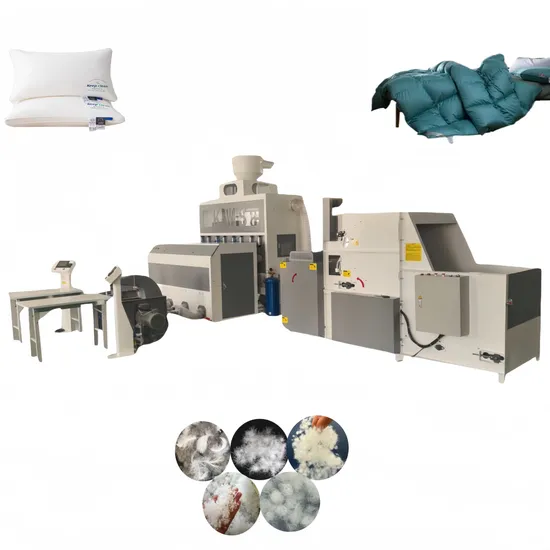

Good Price Pillow Filling Production Line Feather Filling Machine

Product Description

Product Description Automatic cotton-feeding and fiber opening all-in-one machine:The opening roller and working roller are covered with self-locking card clothing, which has a long service life, which is more than 4 times that of ordinary grooved card clothing. Curl and smoothness, the filled product is fluffy, resilient and soft to the touch. Automatic frequency conversion cotton feeding motor, which can be automatically adjusted according to the needs of the cotton filling amount, and the cotton filling machine automatically frequency conversion and speed regulation to ensure that the filled product is flat and uniform.
Pillow filling machine:This machine is equipped with a dual-purpose filling port, which can meet various styles Large grammage filling requirements. One set of clamp type filling port φ90mm *L25cm, mainly used to fill the pillow, pillow, sofa pillow, etc Products. The other set is a direct filling nozzle, φ61mm * L70cm Filling duvets, sleeping bags and other products (size can be customized). Adopt high-precision sensors, the accuracy value is adjustable within 1 gram; adopt super large hopper, the single weighing range is about 100-1200 grams, which solves the problem that filling large grams of products in the home textile industry has been unable to accurately quantify. Oversized storage box can store 50KG materials at one time, saving the feeding time. Optional unmanned feeding system,automatically feed when there is no material in the storage box, and automatically stop when there is material. It solves the problem of multi-purpose of a single machine, and can be compatible with filling 3D-17D high fiber cotton, down and feather pieces (10-80MM in length), flexible latex particles, high elastic sponge scraps, wormwood, as well as the mixture involved, fully improving the cost performance of the equipment. Modular configuration of filling nozzle: θ 61mm, θ 80mm, θ 90mm, θ 110mm, can be replaced without any tools according to the product size. This machine can be linked with streamline equipment such as bale-opener, cotton-opener, mixing machine, and can realize production automation. Adopt PLC programmable controller and high-precision weighing module, achieving more accurate and efficient production capacity. One person can operate two filling mouths at the same time, reducing labor and saving costs.

Product Name	Automatic Pillow Core Filling Production Line
Voltage	380V50HZ 3P
Power	20KW
Weight	2220KG
Dimension	10800*1180*2200mm
Productivity	500g pillow :6-10pcs/min
Air Pressure	0.6-0.8Mpa
Accuracy class	Down±5g /Fiber ±10

Product name	Automatic cotton-feeding and fiber opening all-in-one machine
Voltage	Voltage:380V 50HZ 3P
Dimension	3015*1180*2050mm
Weight	1000KG
Power	7.75kw
Capacity	200-350kg/h

Model	KWS6901-2	Filling nozzels	2
Main Body Size	2400x950x2950x1 set	Overall Dimension	5700*2600*2950mm
Filling Fan	800x600x1100x2sets	Weighing Box	2200x950x1400x1pcs
Independent Table	400x400x1200x2sets	Filling Port	Two Heads (4 Scales)
Feeding Fan	550x550x900x1set	Area Covered	5000x3000 15m*m
Net Weight	1305kg	Gross Weight	1650kg
Filling Range	100-2000g	Cycle Number	2 times
Storage Capacity	30-50kg	USB Data Import Function	Yes
Accuracy Class	Down±5g /Fiber ±10g	Heavy Duty Allocation Deduction	Yes
Auto Feeding System	Optional	Filling Speed	500g pillow:6-10pcs/min
Air Pressure	0.6-0.8Mpa	Voltage/Power	380V50HZ/10.5KW

Company Profile
Customer Visit
Certifications
Application
Customer Feedback
Packaging & Shipping
FAQ Q1.Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.

Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
1)We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our coustomers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will solve the problems in the selling for our coustomers.
Q4.When can I get a price?
We usually quote within 24hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.
