Pet Fruit Juice Drink Bottle Making Machine

Product Description

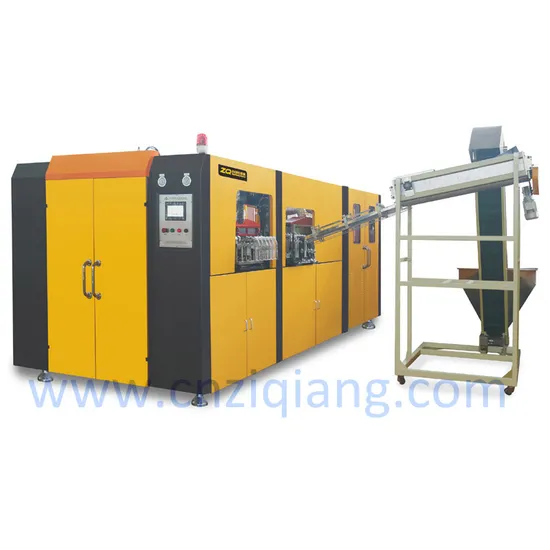

Pet Fruit Juice Drink Bottle Making Machine
ZQ-B600-6 model(6-cavity), 7000-8000PCS/h, it's special design for small volume bottles which below 600ml. High productivity but lower energy consumption and price, which is about half the price of rotary model.
ZQ-B series is the most stable two-step fully automatic high-speed linear stretch-blow moulding machines. The capacity of the products is from 0.25L to 2.0L. It can blow pet bottles for different use: Carbonated, mineral water, milk, beer, oil, hot filling tea, and other drink packing containers, which is made of plastic of crystalline type, such as PET, PP etc.
Pet Fruit Juice Drink Bottle Making Machine,advantages
1). High Automatization
2). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3). High Quanlity: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4). High Speed: 8000BPH(6-cavity).
5). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6). Low Cost: Low consumption of electricity, air and water.
7). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
Pet Fruit Juice Drink Bottle Making Machine,equipment information.

TYPE	ITEM	ZQ-B600-4	ZQ-B600-6
CONTAINER	Number of cavity	4 cavities	6 cavities
	Output	5500-6000 pcs/hr	7000-8000 pcs/hr
	Max.container volume	0.6L	0.6L
	Max.neck diameter	38mm	28-30mm
	Max.container diameter	65mm	60mm
	Max.container height	230mm	260mm
ELECTRICAL SYSTEM	Number of lamp	35pcs	56pcs
	Max.heating power	32kw	34kw
	Installation power	32kw	48kw
	Actual power consumption	22kw	24kw
AIR SYSTEM	Operatating pressure	7-9kg/cm²	7-8kg/cm²
	Low pressure consuming	1600Ltr/min	1600Ltr/min
	Blowing pressure	25-35kg/cm²	25-35kg/cm²
	High pressure consuming	2200-2500 Ltr/min	2000-2200 Ltr/min
CHILLER WATER	Operating pressure	5-6 kg/cm²	5-6 kg/cm²
	Temperatuer	10ºC	10ºC
	Consuming	5600kcal/hr	8000kcal/hr
	Flow rater	30Ltr/min	88Ltr/min
MACHINE	Machine dimension	3.7x1.95x2.1(m)	5.0x2.1x2.1(m)
	Machine weight	3.7ton	5.0ton

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
