Window Door Making Machine for CNC Double Mitre Saw Machine

Product Description

Jinan SETH Intelligent Equipment Co.,Ltd.
Jinan SETH Intelligent Equipment Co., Ltd. is specialized in industrial aluminum profiles, doors and Windows curtain wall processing equipment research and development, manufacturing, and sales of the company. The company has two national invention patents, more than ten utility model patents, and has passed the ISO9001 international quality management system certification, SGS China manufacturing certification, EU CE certification, 22 years won the national high-tech enterprise certificate, science and technology small and medium-sized enterprises. The company is guided by mechanical processing, advanced production equipment, exquisite technology, investment in the introduction of a series of advanced precision machining equipment, equipment processing precision and automation degree is high, processing range is wide, to ensure the processing accuracy and efficiency of products, fundamentally ensure the reliability and stability of equipment.
The company has been engaged in the technical work of the door and window industry for many years, bringing together a number of industry training and several years engaged in the industry marketing services of the business specialist co-founded. It is the common intention of "to become the most professional manufacturing supplier in the aluminum processing intelligent equipment industry and better serve the industry", condensing the common knowledge, experience, talent and wisdom, and striving to create excellent equipment quality to ensure user production capacity and use experience.
The company has strong research and development force, perfect product system, adhere to independent innovation, brand management, and strive to create professional, high-quality, safe and standardized products. Not only to meet the needs of customers for scale, quality, efficiency, but also to meet the personalized design and manufacturing needs of customers. The company has always adhered to the corporate philosophy of "integrity-based * Pioneering and innovation * Excellent in R & D * proficient in intelligent manufacturing", constantly pursuing excellence, constantly surpassing ourselves, striving to achieve leapfrog development, and creating world-class professional manufacturing suppliers.

"The pursuit of excellence * strive for perfection * Dedication to serve you" is the service purpose of the enterprise!

Product Description

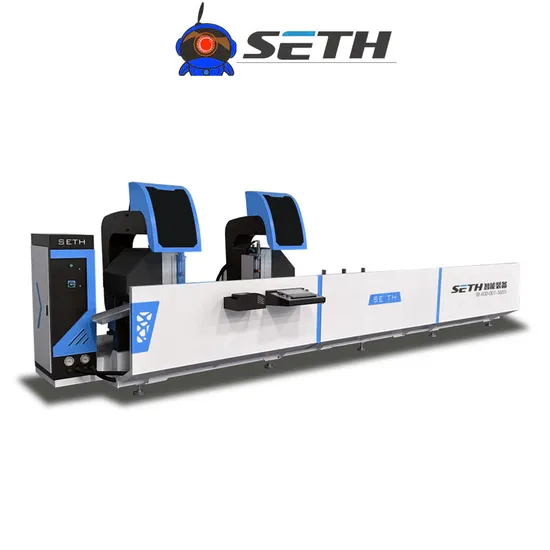

Product name: window and door making machine aluminum cnc double mitre saw
Model:LJZ2-CNC-500*4300 LJZ2-CNC-550*4300 LJZ2-CNC-600*4300
This model for the system door and window intelligent connection model, support ERP MES management software door and window software docking, to achieve the integration of production and marketing control to improve production efficiency.

New appearance level and unique mechanical design structure, making the product more stable cutting profiles easier cutting surface more smooth.
Foolproof operation without skilled workers, to solve the factory recruitment difficulties, label printing function, error prevention function: profile error beyond the range of no cutting.
High precision, integrated casting table, integrated spindle direct connected motor, integrated gas-liquid damping cylinder, T1, T2 heads are located on the integrated guide rail.
Support a variety of data import methods: Internet, LAN, U disk, manual input, etc. It can realize the data docking of common optimization software in the market, Xinger, Changfeng, Chuangying
Environmental protection function, unique chip removal, dust suction design, dust suction rate of 70%, clean site, reduce cleaning frequency, improve work efficiency.
Equipped with patented rotary lifting bracket to avoid cutting errors caused by middle droop, and equipped with movable profile bracket.

Power	380V 50HZ
Saw head motor	2×3KW/ 2840r/min
Working pressure	0.6 ~ 0.8mpa
Air consumption	60L/min
Saw length	Max4300mm MIN290mm
Saw width	Max 175mm
Maximum cutting slope	45°175×245mm 90°175×280mm
Sawing Angle	90°, 45°
Feed speed	stepless speed regulation 0-3m/min
Saw blade specifications	ø550 × ø30 × 4.4× Z120
Dimensions	5800×1800×1500 mm
Weight	1900 kg
Repeat constant length accuracy	≤ 0.05mm
Profile cutting Angle tolerance	±3 '
Cutting plane flatness	≤ 0.1m
Roughness of cutting surface	Ra12.5μm

Detailed Photos
Packaging & Shipping
Certifications
Our Advantages
FAQ
Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL window machine company in china.
Q: SETH's main products?
A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine,
CNC milling machine, aluminum punching machine, end milling machine, copy router and c
orner connector saw, etc; Wood window machines: wood saw, wood window frame machine,
vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making machine, etc. Q: SETH's after-service?
A: 1option:
we have engineers to install the machines and train your workers.
Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching, subsidy USD70 per day.
2 option:
On-line Service and All documents and videos for Installation and train operation for free.(For Optional)
