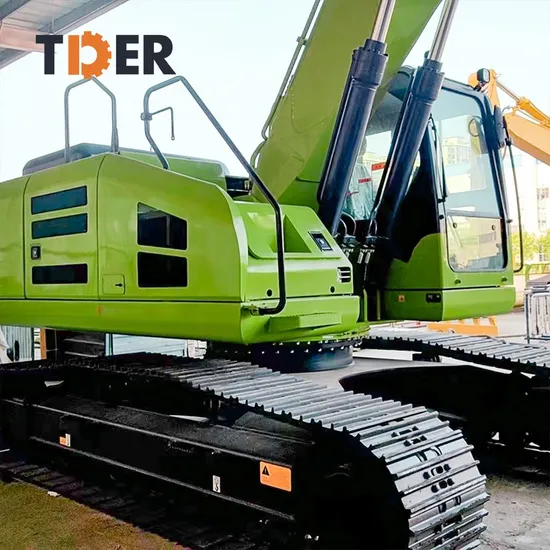

Tder 2024 Earthmoving Equipment Electric Digger Lithium Battery CE Excavator

Product Description

Product Parameters

Specification		TCE210EV
Total Weight	T	21.5
Bucket capacity	M³	0.9-1.2
Motor Model		YE3-250M-4
Rated power	Kw/r/min	55/1480
Rated Voltage	V	380
Rated stored energy	KWh	/
Max displacement	L/min	210*2
Working pressure	Mpa	34.3
Hydraulic pump mode		APVO125
Hydraulic tank volume	L	230
Walking speed (high/low)	km/h	4.5/2.5
Swing speed	r/min	8.7
Climbing ability	°	35
Bucket excavation force	KN	147.9
Arm digging force	KN	107.3
Ground specific voltage	KPa	50.8
Traction force	KN	223
Maximum excavation length	mm	9270
Maximum unloading heigh	mm	6600
Maximum excavation depth	mm	6525
Maximum verticalarm mining depth	mm	5670
The distance when digging 2.5 horizontal plane	mm	6327
Maximum excavation distance	mm	9820

*Please contact us if you need more detailed parameters.

Product Description
1. Full imported hydraulic system ensure the stable quality.

2. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency

3. Oil bath air filter and air filter element double layer air filtration, even in the dust flying mine environment, can still ensure 99.9% filtration efficiency, while the pre-oil bath air filter can extend the service life of the second stage air filter.
4. Equipped with double fuel filter to guarantee fuel purity to protect engine.
5. Extend hydraulic line for various attachments.
6. Full sealed cabin with A/C and comfort seat make operator easy to work.

7. Intelligent control electric system.

8. Open covering parts makes the maintenance easy to proceed.
9.Double-tooth track plate, fully protected chain stopper, and enhanced X structure make the chassis better able to cope with the complex mine environment.
10.There are many parts of the vehicle that are difficult to fill butter, the use of centralized lubrication can be timed and quantitative filling butter, saving labor at the same time, but also standardize the butter filling time and filling amount, to avoid the early wear of structural parts caused by not filling in time.

Packaging & Shipping
*All products will be strictly tested before shipping.

*Before delivery, we will arrange our staff to take photos and videos of your machine.
*The extra security packing will be carried out for the nude cargo.
*Ropes and triangle blocks will be used for fixing machines.
*We will also give your heavy-duty machines waterproof cover packaging, to prevent the corrosion of rain and sunlight.
*Product certificates and nameplates are provided.
*A tutorial CD, toolbox and extra paint are included as free gifts.
Certifications
Company Profile
Founded in 2003, TDER Group is an international large-scale machinery manufacturing company, engaged in the invention and sales of various machinery products, including forklifts, loaders, warehouse equipment and port equipment. The TDER Group has established 3 factories. All 25 categories of products have passed the SGC, TUV, BV, INTERTEK and other authoritative international institutions certification. Today, our products have been exported to Brazil, Russia, Australia, Canada, Turkey and other 158 countries and regions, with 56 agents.
Customer Feedback
You can send an email or message to explain your needs, and we will recommend a suitable machine for you according to the model and configuration requirements provided.
Attachments
SPARE PARTS
Professional Service
TDER offers customized services.
You can freely change the color, engine, LOGO and more.
"TDER makes every mechanical gear customizable."
FAQ
1. Why choose us? As a manufacturer, TDER industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services. 2. What is the product range of our factory ? TDER industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements. 3. What payment terms can we accept? Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted. 4. What Certificates do we have? All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed. 5. How about our delivery time? Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order. 6. Can we provide OEM service? TDER industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
