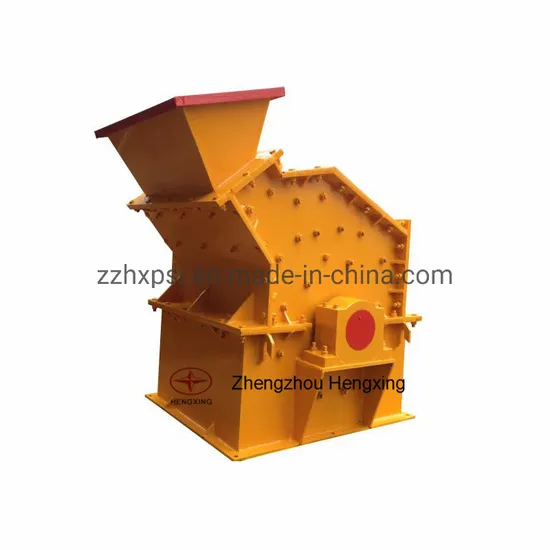

Pcx High-Efficiency Fine Crusher for Quarry Plant
| US$6,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
PCX800*400, pcx800*600, pcx800*800, pcx1000*1000
Drive
Hydraulic
Crushing Style
Grinding & Impact
Compressive Strength (For Crushing)
250-300MPA
Crushing Degree
Sand 0-5mm
Finished Surface
Thread Process
Certification
CE, ISO
Condition
New
Color
Yellow
Installation
Under Our Technician′s Installation
Certificate
ISO9001: 2008
Model Number
Pcx Series
Capacity(T/H)
20-180t/H
Mining Object
Metallic and Non-Metallic Ore Excavator
Delivery
by Sea
Maintenance
We Dispatch Engineer
Place of Origin
China
Name
High Efficiency Fine Crusher
Transport Package
Standard Container
Specification
National standard
Trademark
Hengxing
Origin
Henan, China
HS Code
84742090
Production Capacity
20-180t/H
Product Description
PCX High-Efficiency Fine Crusher For Quarry PlantPCX highly effective impact fine crusher (the third generation sand making machine) is a new type sand making equipment developed by combining the domestic and overseas technology with the working conditions of related industries.
Highly effective impact fine crusher is used for fine crushing medium hard materials in concrete industry, such as limestone, plaster, clinker, mixed material, calcium phosphide, dolomite, and pearl ore, etc.
It is also applicable to building material, fertilizer, mine and fireproofing material industries.
Features of Highly Effective Impact Fine Crusher:
Highly effective impact fine crusher is a kind of efficient and energy-saving crushing machine.
It has the characteristics of simple structure, stable performance, high productivity, low energy consumption, and easy maintenance, etc.
The discharging materials are of small and equal size.
Its hammer has long service life.
By using our efficient highly effective impact fine crusher, tertiary crushing can be changed to secondary crushing.
Hammer
Fine crusher main technical parameters:
| Model | Feeding size(mm) | Discharging size(mm) | Capacity(t/h) | Power(kw) | Weight(t) |
| PCX800×300 | ≤60 | ≤5(96%) | 20-25 | 37 | 2.5 |
| PCX800×600 | ≤60 | ≤5(94%) | 35-50 | 45 | 4.7 |
| PCX800×800 | ≤70 | ≤5(92%) | 40-60 | 75 | 6.5 |
| PCX1000×1000 | ≤80 | ≤5(91%) | 60-90 | 90 | 8.8 |
| PCX1000×1200 | ≤90 | ≤5(88%) | 75-110 | 110 | 13.6 |
| PCX1300×1200 | ≤100 | ≤5(86%) | 120-145 | 160 | 19.5 |
| PCX1300×1400 | ≤120 | ≤5(85%) | 145-180 | 180 | 26 |
Fine crusherinworkshop:
