IR Lab Dyeing Machine Textile Dyeing Machines Lab Automatic-Dripping-Machine

IR Lab Dyeing Machine Textile Dyeing Machines Lab Automatic-Dripping-Machine

US$20,000.00 1 Set (MOQ)

Basic Info.

Material
Fabric
Voltage
220V
Load Capacity
2-5kg
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
One Year Warranty
Specifications and Models
S M L
Number of Dye Bottles
100 120 140
Dye Bottle Capacity
1000ml
Number of Stainless Steel Needles
100 120 140
Stainless Steel Needle Capacity
25ml
Balance Quantity
2
Transport Package
Sea Shipping Packaging
Specification
1000*1800*1650mm
Trademark
ZYTT
Origin
China
HS Code
8451400000

Product Description

Product Description

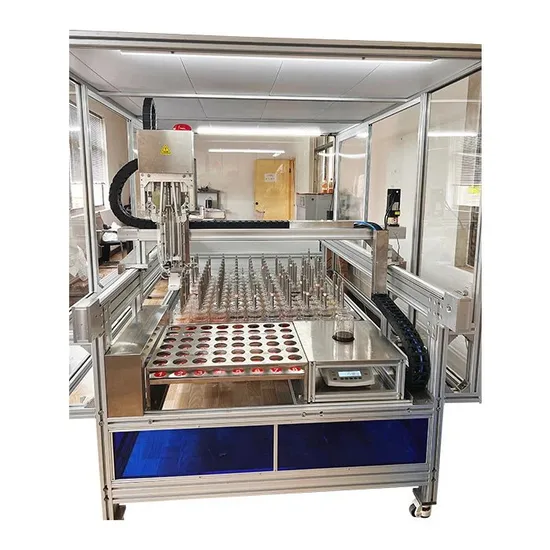

Laboratory automatic dripping machine is a device used in laboratory operations to accurately control and automatically perform the dripping process. It usually consists of a controller and a dripping device.
Product Parameter
Specifications and Models:S M L
Number of dye bottles:100 120 140
Dye bottle capacity:1000ML
Number of stainless steel needles:100 120 140
Stainless steel needle capacity:25ML
Balance quantity: 2
Balance accuracy: 0.01G
Dilution position number:1
Titration cup number:48
Title:2G
The accuracy of the needle:±0.01G
Voltage: 220V
Power:1.6KW
Drip machine:Chemical machine
Unique cup position design: 48 dye cup drops
Product parameters
1. It is suitable for dispensing liquid drops in laboratories. The automatic dripping is fast and accurate, with high reproducibility, ensuring the best production efficiency and avoiding high re-dying costs due to operational errors.
2. Features and technical parameters:
1. Unique automatic dilution function reduces human errors.
2. Servo control, precise and fast positioning.
3. The stirring direction of the mother liquor can be set, and the stirring speed can be adjusted to prevent dye from adhering to the needle tube.
4. No pipeline, stainless steel syringe pipetting, no color bleed.
5. A single concentration dye solution uses an independent stainless steel 316L syringe to avoid cross-contamination, corrosion resistance and durability.
6. Multi-needle system, the needle tubes do not need to be cleaned, and the efficiency is high.
7. No conveying device is needed to transport cups and plates, reducing mechanical failures.
8. Number of titration cup positions: 48, can be customized.
9. The 5th generation operating system is easy to learn and user-friendly.
10. The consumption of diluted dye solution is recorded at all times, and the validity period of newly diluted dye is automatically updated.
11. Titration accuracy ±0.01 g.
12. The brand of electronic scale is Sartorius.
13. The outer frame protection protects the mechanical operation and operator safety, and is dust-proof.
14. Modular design, good expansibility, can expand the automatic liquid soaking system and automatic proofing system.
15. Bare metal size of dripping machine: L2700*W1800*H1950mm (S, M, L sizes are the same)
16. Bare metal size of the chemical machine: L530*W650*H1000 (with a 6-cup mixer)
Feature
The advantage of Laboratory automatic dripping machine is that it can improve the accuracy and efficiency of experiments. By precisely controlling dripping parameters, human error can be avoided and the volume and speed of each drip can be ensured to be consistent. In addition, the automatic dripping machine can perform dripping operations continuously, saving experimental personnel's time and energy.
Automatic drip machines are widely used in various laboratory operations, such as chemical analysis, biological experiments, drug research and development, etc. They provide a reliable and efficient drop solution, making laboratory work more convenient and reliable.
