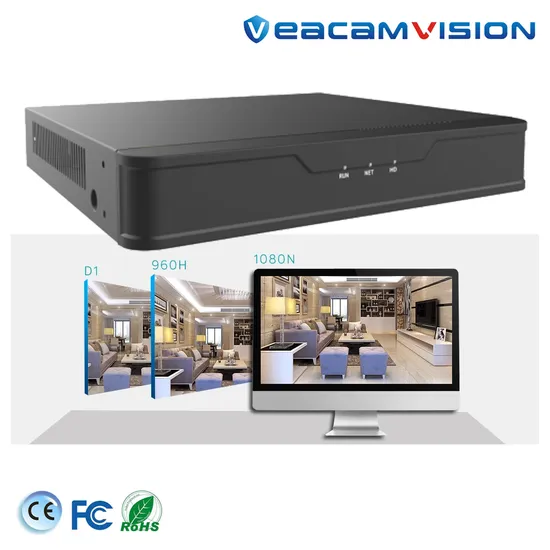

Onvif CCTV DVR Hybrid Recorder for Analog and IP Cameras Grand Stage/Architecture/Engineering/Cinema CCTV Security

Onvif CCTV DVR Hybrid Recorder for Analog and IP Cameras Grand Stage/Architecture/Engineering/Cinema CCTV Security

US$29.00-31.00 1 Piece (MOQ)

Basic Info.

Model NO.
VCXVR-804UA1S
Compressed Format
H.265
Operating System
Windows
Application
CCTV Recorder
Interface Type
BNC/VGA/HDIM
Video Input/Output
4 Channel
Audio Input/Output
4 Channel
Remote Control
Without Remote Control
SATA
1
Analog Input
4
IP Input
6
Audio in/out
1
Megapixel
8mn
Transport Package
Carton Box
Specification
1000g
Trademark
N/A
Origin
China
Production Capacity
50000PCS

Packaging & Delivery

Package Size
32.50cm * 28.00cm * 26.00cm
Package Gross Weight
1.000kg

Product Description

Product Description
Exciting and Spirited Product Description
Introducing the 8MN 4CH XVR Onvif CCTV DVR Hybrid Recorder! Are you ready to take your surveillance game to the next level? Look no further than our cutting-edge Onvif CCTV DVR Hybrid Recorder for Analog and IP Cameras! With its incredible features and top-notch performance, this recorder is a game-changer in the world of security systems.
Key Features:
Supports both H.265 and H.264 video formats, ensuring high-quality recordings that capture every detail.
Experience audio like never before with our innovative audio over coaxial cable technology.
Enjoy seamless integration with a wide range of cameras, including TVI, AHD, CVI, CVBS, and IP cameras.
Equipped with 4-channel BNC input, allowing you to connect multiple cameras for comprehensive surveillance.
Experience crystal-clear visuals with 1-ch HDMI output and 1-ch VGA output at up to 1920*1080 resolution.
Transmit video signals over long distances using coaxial cables, ensuring reliable and efficient surveillance.
Don't settle for mediocre security systems when you can have the best. Our Onvif CCTV DVR Hybrid Recorder is designed and manufactured by Veacam Electronics Co., Ltd, a trusted name in the industry. With our recorder, you can have peace of mind knowing that your property is protected by cutting-edge technology.
Upgrade your surveillance system today with our Hybrid CCTV Recorder for Analog and IP Cameras. It's the perfect choice for anyone looking for a versatile, high-performance recorder that delivers exceptional results. Don't miss out on this opportunity to enhance your security setup!
Product Parameters
Model VCXVR-804UA1S
Video/Audio Input
Analog Video Input 4-ch, BNC
IP Video Input 2-ch(only IP up to 6ch), each channel up to 4K
Supported Analog Camera Types Support AHD input:
8MP@15fps(channel1)
5MP@20fps
4MP@30fps
3MP@30fps(channel1)
1080P@30fps
720P@60fps
Support TVI input:
8MP@15fps(channel1)
5MP@20fps
4MP@30fps
3MP@20fps (channel1)
1080P@30fps
720P@60fps
Support CVI input:
8MP@15fps(channel1)
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input
Audio Input 1-ch, RCA
Two-way Audio 1-ch, RCA
Network
Incoming Bandwidth 48Mbps
Outgoing Bandwidth 60Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
CVBS Output 1-ch, BNC
VGA Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output 1-ch, RCA
Synchronous Playback 4-ch
Encoding
Recording Resolution 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF
Recording
Frame Rate
Main stream:
8MP Lite@8fps(channel1)
5MP Lite@12fps
4MP Lite@15fps
3MP@15fps(channel1)
2MP@15fps
720P@30fps
Sub stream:
D1@30fps(Max)
Hard Disk
SATA 1 SATA interface
Capacity Up to 6TB for each HDD
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 2 x USB2.0
Serial Interface 1 x RS485
General
Power Supply 12V DC
Power Consumption: ≤ 8 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H) 260mm ×240mm× 46mm (10.2" × 9.4"×1.8")
Weight ( without HDD ) ≤1.1 Kg ( 4.19lb )
