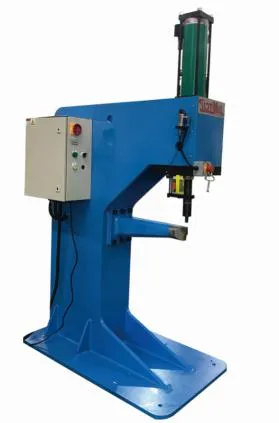

Clinching Machine for HVAC Air Duct Joint

Clinching Machine for HVAC Air Duct Joint

US$4,800.00-5,500.00 1 Set (MOQ)

Basic Info.

Model NO.
TCEU08-01
Warranty
1 Year
Certification
CE, ISO
Model
Cec08-01
Throat Depth
500mm
Power Stroke
12mm
Weight
500kg
Throat Height
425mm
Max.Clinching Thickness
2mm+2mm
Application
HVAC,Sheet Metal Industry,Automobile
Transport Package
Exporting Plywood Box
Specification
970mm*650mm*2105mm
Trademark
SIMITCH Brand
Origin
Jiangsu, China
HS Code
8463900090
Production Capacity
600sets/Per Year

Product Description

Clinching machine for HVAC air duct joint
Technical parameter
Impact pressure 8.0T
Power source Hydropneumatic
Voltage 220V,50Hz
Total travel 100mm
Compressed air source need 3bar-8 bar
Weight 500KG
Max. thickness of clinching 2mm+2mm

Workshop
Test Equipment
Laser Marking Machine Tension Force Test Machine Three-coordinate Measuring System Deflection Instrument
CE Certificate
Warehouse
Characteristics:
1. Joint point are firm and credibility
2. Rivetless, low cost.
3. Match the pre-pressure device,overcoming distort badly.
4. Riveting time, pressure, speed are all can be adjusted.
5. National patent technology, number shows can accuracy to 0.1 second
6. Press gently , the molding tool loss is small
7. Can transform into round or square
8. The riveting area has no stress
9. Can not break the plating or painting in surface
10. To the metals material request not high, the copper ,aluminums, steel, zinc are all unlimited
11. Riveting process has no vibration, low noise, low consumption
12. Unnecessary to processing in before or after riveting joint, allow to have the mezzanine and multi-layer conjunction
13. Advanced counter and time shows window
14. The electricity control system's operating are convenience and safety
15. Can riveting different shapes after replaced the different die
Why choose Simitch:
-1. 14 years of manufacturing experience history.
-2. faster lead time, the fastest delivery is about 7-15 working days.
-3. CE & SGS certificate approval factory.
-4. Quality control for every step while production.
-5. Professional engineers have working experience in maximator.
