Angle Steel Fabrication Machine  CNC Angle Punching, Shearing and Marking Machine

Angle Steel Fabrication Machine CNC Angle Punching, Shearing and Marking Machine

US$61,000.00-65,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
APM0908
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.3-0.5mm
Performance Classification
Mid-Range CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Angle Size (mm)
40X40X3~90X90X8(Q345)
Max. Workpiece Length (M)
12
Max. Punching Capacity(Dxt mm)
Φ25.5mm X8mm
Nominal Punching Force (Kn)
350
Nominal Marking Force (Kn)
1030
Nominal Cutting Force (Kn)
1000
No. of Character Group (Piece)
4
Machine Weight (Kg)
Approx. 15000
Transport Package
Container
Specification
25m*7m*2.2m
Trademark
FIN CNC Machine
Origin
Shandong
HS Code
8462411900
Production Capacity
100 Units

Product Description

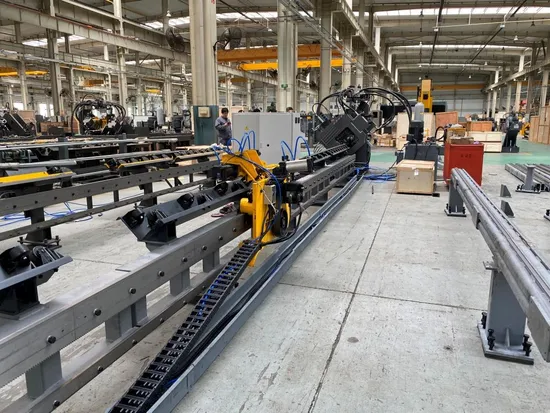

APM0908 CNC Angle Punching, Shearing and Marking Machine
The machine is the automatic special equipment used for angle steel marking, punching, and shearing mainly in the field of angle steel tower industry.
Technical specification of APM0908
Model APM0908
Angle Size (mm) 40x40x3~90x90x8(Q345)
Max. workpiece length (m) 12
Max. punching capacity(DxT mm) Φ25.5mm x8mm
Nominal punching force (kN) 350
Nominal marking force (kN) 1030
Nominal cutting force (kN) 1000
No. of character group (piece) 4
No. of character in each character group (piece) 18
Character size (mm) 14x10x19
Range of stadia (mm) 20~170 (stepless)
No. of punch on each side (piece) 3
Max. feeding speed (m/min) 40
No. of CNC axes (piece) 3
Overall size (m) 25x7x2.2
Total power (kW) 31.4
Machine weight (kg) Approx. 15000

Angle feeding Speed: 40m/min, the effiency is about 1000 holes/hour
The finished angle conveyor is rotated to one side by pneumatic power. The max. Length of finished angle is 8 m.
There are four transverse conveyors which can infeed automatically.
Type of programming: Keyboard input, USB interface input, floppy disc input.
Working environment:
Working temperature: 0~ 40 degree
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ± 10%
Frequency: 50 Hz
Main outsourcing components list of APM0908:
No Name Brand Manufacture
1 AC servo motor Delta Taiwan China
2 PLC Delta Taiwan China
3 Electromagnetic valve Atos/Yuken Italy/Tawan
4 Relief valve Atos/Yuken Italy/Tawan
5 Double vane pump Albert USA
6 Air valve SMC/Airtac Japan/Taiwan China
7 cylinder SMC Japan

Machine feature:
1.There are two sets of punching units on each side which can install three kinds of drills with different siameters.three set of puching die-station can move altogether controled by CNC to change the punching stadia.
2.single-blade cuuting ensures smooth and saves material.
3.Marking unit adopt close frame with stronger rigitity. Marking stadia can be set at will .
4.CNC feeding trolly is drive by AC servo motor .The photoelectric encorder feeds back information.Closed loop controlto ensure high positioning precision.
5.Hydraulic system mainly is use to compele punching cutting marking press material and replace the character boxes.
6.The control system consists of a host computer ,CNC system,servo motor,PLC and detection switch etc. .Only to input the drawing workpeice, the processing program is automatically generated.It has a set temperature detection system for hydralic station,The cooling or heating mode can be decided according to the oil temperature.
Our service :
Our company:
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
FAQ
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
