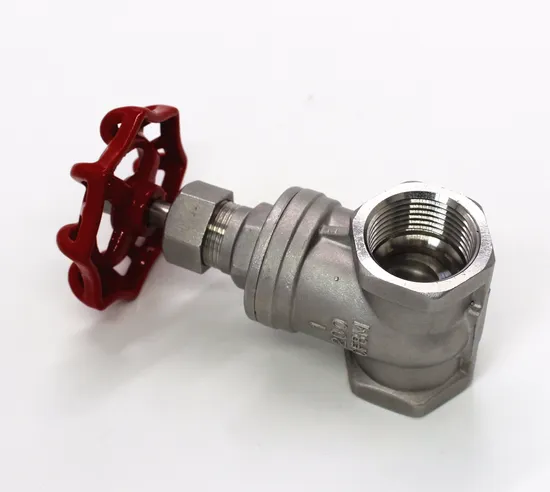

Stainless Steel Manual Gate Valve CF8m Gate Valve

Stainless Steel Manual Gate Valve CF8m Gate Valve

US$15.00
1-499 Sets
US$14.80
500-999 Sets
US$14.60
1,000+ Sets

Basic Info.

Connection Form
Thread
Pressure
Ordinary Pressure
Actuator
Manual
Seal Surface
Wedge Gate Valve
Thread Position of Valve Rod
Inside Gate Valve
Usage
Regulation
Standard
DIN
Application
Industrial Usage, Water Industrial Usage, Household Usage
Place of Origin
Zhejiang Pr,China
Connection
Thread
Certification
CE,ISO
Size
1/2"--4"
Design
Full Port
Material of Construction
Investment Casting
Working Pressure
200wog
End Connection
Bsp/BSPT/NPT/DIN2999/DIN259 Threaded
Transport Package
Standard Export Package
Specification
1/2"--4"
Trademark
SJFM/WOD/OEM
Origin
Wenzhou, Zhejiang Province
HS Code
8481804090
Production Capacity
100, 000 Set/Month

Packaging & Delivery

Package Size
30.00cm * 40.00cm * 50.00cm
Package Gross Weight
1.000kg

Product Description

Manual Gate Valve

Name
Manual Gate Valve
Design full port
Material of construction investment casting
Material SS304/SS316/SS201/WCB
Working pressure 200wog
Size range 1/2"--4"
End Connection BSP/BSPT/NPT/DIN2999/DIN259 Threaded
Mode of operation Manual
Specification
Nominal pressure PN1.6,2.5,4.0,6.4M.pa
Strength testing pressure PT:2.4,3.8,6.0,9.6M.pa
Seat testing pressure(hight pressure) 1.8,2.8,4.4,7.1Mpa
Applicable media Z15w-2C water oil gas /Z15w-2P Nitric acid /Z15w-2R Acetic acid
Applicable temperature -40ºCto210ºC
Product standard ASME B16.34
Wall thickness standard ASME B16.34 GB12224
Thread standard ANSI B 1.20.1,BS 21/2779,DIN259/2999,ISO228 BSPT BSPP NPT
Inspection standard API598 EN12266
Product certification PED 97/23/EC(CE2138) ISO900

Material of product's parts
NO DESCRIPTION MATERIAL
1 BODY CF8M CF8 WCB
2 BONNET CF8M CF8 WCB
3 DISC CF8M CF8 WCB
4 STEM CF8M CF8
5 SEALRING PTFE/RPTFE
6 PACKING PTFE/RPTFE
1,quality is superiorand price is reasonable
2,well done !perfect after service
3, monthly output: 400, 000.00 set/month
4, Payment term: L/C or T/T
5, Delivery time: 30-45 days after received the deposit.
6, Package detail: Inner CTN, ourside ply-wooden case
choose me
1, We are according to the requirements of customer to print logo
2, our products are well received both at home and abroad
3,Please be assured the quality is passed the CE certification
4,If you need we will meet all the demands
5. We are manufacturer
6,We will be answer within 24 hours, glad to contact with us if you have any problems, We are looking forward to cooperating with you.
Company Show
Zhejiang WOD Valve Co., Ltd. Was founded in 2008. WOD company is a diversified manufacturer of valves. It deals with research, design, manufacture, sales, import and export autonomy, self customs clearance
It is located in China Valve City---Wenzhou Economic and Technological Development Zone, Zhejiang Province, it is about 5 minutes away from Wenzhou International Airport, and half an hour from Wenzhou Train Station. Ningbo Port and Shanghai Port are also very close to our factory.
WOD Company mainly produces medium and low pressure valves, Such as 1PC ball valve, 2PC ball valve, 3PC ball valve, flange ball valve, gate valve, globe valve, check valve, Y strainer. etc. The material has ASTM 304, 316, WCB, etc. Valves' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. WOD series valves are widely used in oil, gas, chemical, electric power, metallurgy, lifting, water supply, auto ship manufacturing oil-water road heating system control, food, pharmaceutical, daily chemical industry, municipal construction, mechanical equipment, etc.
WOD company has obtained C E, I S O 9 0 0 1 certifications, also been inspected and approved by S G S, T U V As "Pursuing Survival with Quality, Winning Market with Price". WOD valves have been exported to all over the world, especially in North American, South American, Europe, Middle East and so on.
Why do you choose us?
Your satisfaction is our pursue. We know that price is important, but it should not be the whole parts. We are certain to offer you the most reasonable price. You do not need to worry about our sevice, because we want to earn your satisfied smile. Our company improves every day, your recognition and expectation are the driving force of our advance.
