Wecoil-SLM250-12B--CNC spring end grinding machine

Wecoil-SLM250-12B--CNC spring end grinding machine

US$1,000.00-1,100.00 1 Piece (MOQ)

Basic Info.

Model NO.
SLM250-12
Type
Surface Grinding Machine
Processing Object
spring
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
End Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Specificaion of grinding wheel
660mm*100mm*50mm
Diameter of feeding plate
740mm
Wire diameter of grinding spring
3-12mm
Outside diameter of grinding spring
20-130mm
Height of grinding spring
20-250mm
Total power
33.71kw
Weight
5500kg
Transport Package
Wooden Case
Specification
L2215*W2265*H2400
Trademark
Wecoil
Origin
China
HS Code
8501109101
Production Capacity
100

Product Description

Machine Description:

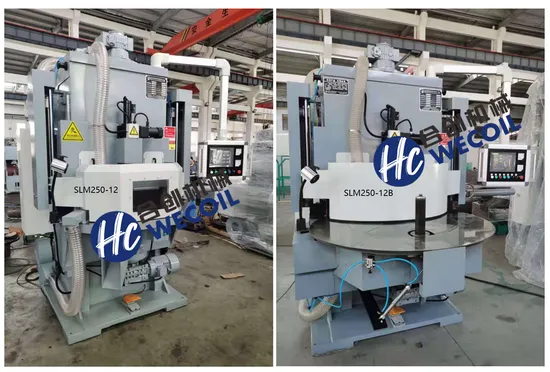

SLM Series of CNC spring end grinding machine is mainly used in synchronized spring of double surface of compression spring,including cylindric spring,conical spring and double conical spring.
The machine adopts two vertical grinding wheels to grind springs put on feeding plate which pass through two grinding wheels. Feeding speed of upper grinding wheel can be adjusted. Through manual feeding mode or automatic feeding mode spring can get the preset height,you can obtain the greatest capacity of grinding according to the pressure. The machine has automatic compensation,automatic reset,giving alarm function,through man-machine dialogue manner and programmed on the computer screen,convenient operation and high production efficiency,it is ideal equipment for mass springs double surface grinding.
WECOIL Purchasing Process
Wecoil High Quality professional pre-sale, sale and after-sale service. 1. Remote free technical support by e-mail or telephone, or the supplier can assign the technicians to the customers' factory for the technical support if necessary. Machine Pictures and sample testing video will be sent for confirmation before packaging and delivery.2. WECOIL team will always provide professional and patient consulting service to help clients find the suitable solution.3. Quick and safe shipment as per your requirement,such as the booking ,container loading, and shipping documents etc...4. WECOIL will provide technical support by email and phone,technicians will be available at your side if necessary.5. One-year guarantee period exclude the easy torn parts. Any Consultations and Inquiries are welcome!
We strive to create a more powerful tomorrow for customers!
