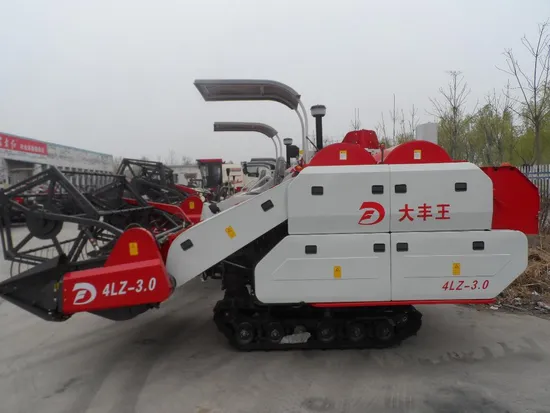

Silon Wheat/Soy Bean/Rice/Corn Harvester (4LZ-3.0)
| US$15,500.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
4LZ-3.0
Application
Cotton, Rice, Corn, Fruit, Wheat, Soybean, Tubers, Straw
Power Source
Diesel
Harvest method
Cutting
Drive Type
Hydraulic Pump and Motor
Transmission
Soft Shaft
Portable Harvester Type
Side Hanging Type
Certification
QS, GMP, ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Warranty
1 Year
Model
4lz-3.0
Driving
Self-Propelled Full Feeding
Overall Dimensions (L x W x H)
4750*2350*2360 mm
Weight
2620kg
Working Efficiency
0.2~0.47 Hm2/H
Cutting Width
2000mm
Feeding Capacity
3kg/S
Discharging
1.0 Cbm Auto Type with Discharger Auger
Grain Tank
1.0 Cbm (500-550 Kg)
Rubber Track
400/450/500*90*48mm
Transport Package
Nude
Specification
CE/CCC/ISO/GHOST/SGS
Trademark
Silon
Origin
Luoyang, China
HS Code
84335100
Production Capacity
500 Units/Month
Product Description
Features:
1) 2 meters cutting width, Big Hydraulic LQ75 gear box with 37cc HST, high efficiency.
2) 75/88HP Turbo-charged Diesel Engine with stronger power and low fuel consumption.
3) Double axial flow threshing cylinders and adjustable front & rear sieving plates ensure the grain more clean, less breakage and less loss
4)Big width conveyer groove with innovated cutter bar lifting system can provide a more efficient feeding and a higher lifting level, convenient for working in paddy field and maintenance, and lower noise and vibration.
5) Extremely strong Chassis; Excellent waterproof suspension wheel system; Easier turning & control with friction disc brake and special heavy-duty gearbox for hydraulic steering combine harvester.
6) Down-forward straw-discharging outlet for straws with shredding mechanism to get straw pieces back to fields. Convenient for gathering by baler machine.
7) Higher ground clearance and Lower ground pressure, better for passing in paddy field.
8) New design of tension frame, Reinforce belt structure, avoiding belt being broken and track slip. And New design of all shields for easy open and maintenance.
9) Sided small grain tank of 0.3CBM and Big grain tank of 1.0CBM at Option.
Technical Parameters:
| Model | 4LZ-3.0 | |||
| Brand Name | Silon | |||
| Type | Self-Propelled Full Feeding | |||
| Fit harvesting crop |
| |||
| Working Efficiency | 0.2~0.47 hm2/h | |||
| Overall Dimensions (L x W x H) | 4750×2350×2360 mm | |||
| Weight | 2620 kg | |||
| Engine | Turbo-charged Diesel Engine | |||
| Model | A498BZT / A498BZT88/24 | |||
| Type | In-line, water cool, 4-stroke,Direct injection | |||
| Rated Power | 75HP (55KW) / 88HP (65KW) / 2400 rpm | |||
| Fuel tank | 80L | |||
| Fuel consumption per hectare | ≤30 Kg/Ha. | |||
| Chassis | ||||
| Rubber Track | 400/450/500*90*48mm | |||
| Transmission | HST F:3 / R:3 | |||
| Ground Pressure | ≤18 Kpa | |||
| Min. Ground Clearance | 310 mm | |||
| Header | ||||
| Cutting Width | 2000 mm | |||
| Feeding capacity | 3Kg/S | |||
| Type of Lifting | Hydraulic | |||
| Lifting of Reel | Hydraulic | |||
| Steering | Hydraulic | |||
| Conveyor | Chain rack tooth type | |||
| Threshing Cylinder | Tangential Flow + Axial Flow, Dual Spike-tooth type | |||
| Cleaning | Fan (front blowing + rear suction)+Sieving+re-thresher | |||
| Discharging | 0.3CBM | Manual type & bag | ||
| 1.0CBM | Auto type with discharger auger | |||
| Grain Tank | 1.0 CBM (500-550 kg) / 0.3CBM (150-200 Kg) | |||
| Total Loss | ||||
| Rice | ≤1.5% | |||
| Wheat | ≤1.2% | |||
| Breakage | ≤1.5% | |||
| Impurity | ≤1.0% | |||
