Full Automatic Meat Process Machine Salami/Ham Making Machine /Sausage Stuffer Filling Machine/ Sausage Making Line/Sausage Making Machine

Full Automatic Meat Process Machine Salami/Ham Making Machine /Sausage Stuffer Filling Machine/ Sausage Making Line/Sausage Making Machine

US$10,000.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
QX-5
Power Source
Electric
Process
Mild Processing
Automatic Grade
Semi-Automatic
Type
Mix Filling Machines
Voltage
380V
Customized
Customized
Name
Sausage Making Machine
Capacity
500-5000kg/H
Raw Materials
Frozen Meat
Guarantty Time
12 Month
Delivery Time
30 Days
Transport Package
Wooden Case (Plywood)
Specification
CE certificate
Trademark
Astar
Origin
China
HS Code
8438500000
Production Capacity
50sets/ Month

Product Description

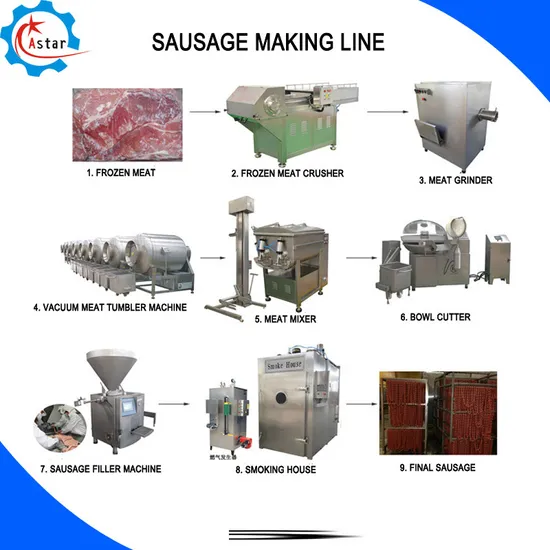

Full Automatic Meat Process Machine Salami/Ham Making Machine /Sausage Stuffer Filling Machine/ Sausage Making Line/Sausage Making Machine /Meat Machine For Sale Flow Chart :
Full Automatic Meat Process Machine Salami/Ham Making Machine /Sausage Stuffer Filling Machine/ Sausage Making Line/Sausage Making Machine For Sale For Reference :
Name Specification Description Photo
Frozen meat grinder
1.model :JR-100
2.capacity(kg/h):500-1000
3.power(Kw): 3.0
4.voltage(V;HZ):380
5. screw speed(r/min):249
6. cutter hole model(mm):Q3-Q30
7.weight (kg):180
8. dimension(mm):980*580*940
It can directly cut the unthawed meat pieces into different sizes of meat, without damaging the muscle fiber tissue, and the temperature rise of the meat material is small, which is good for product preservation and prolongs the shelf life. Prepare for the bowl cutting or mixing. Can process -18 °C frozen meat, without damaging the muscle fiber structure. No need to thaw, reduce the loss of nutrients and protein of the meat, and also can grind the fresh meat.
Vacuum Tumbler Machine Model: HGGR-1000 Roller Volume: (L)1000 Load capacity:(kg)500 Roll speed:(n/min)6 5.Roller drum Diameter:(mm)1122
6. roller drum deepth(mm)1100
7. Total power: (kg)3.7
8. Dimension:(L*W*H)mm
1305*1865*1715 Total weight: (kg):660
Vacuum tumbler. Under vacuum, let the meat pieces or meat stuffing up and down in the drum, collide with each other, beat, and roll the machine to achieve massage and pickling. The kneading machine pickling liquid is fully absorbed by the meat, enhancing the bonding strength and elasticity of the meat, improving the mouthfeel and cross-section effect of the product; enhancing the water retention and increasing the yield.
Bowl cutting machine Model: ZB-125(double speed) Capacity(pot):90kg Power :20.67kw Cutter qty: (pcs):6
Cutter speed(r/min): double speed : 1800/3000
Chop pan speed:14/20
Dimension :1430*1610*1635
Total weight (kg):1000
The chopping machine is the key equipment in the production process of meat products. The high-speed rotating chopping knives can mix the raw meat chop into a fine clam-like shape, and at the same time can mix other auxiliary materials evenly. It is indispensable for meat processing plants and other units. Meat processing machinery.
Double shaft mixer machine
Model :JB-300 double shaft Capacity(kg/h):250-300 Power(Kw):4.2 Voltage(V;HZ)380V /50HZ Mixer tooth speed (rpm):42 Material turning method:Automatic turning Dimension(mm)1200*800*1200
Mixing machine is the necessary equipment for mixing raw materials , high efficiency and easy to operate. It is the first choice for making air-dried sausage products, granular mud-like mixed sausage products and pellet products. High efficiency, fast mixing speed, simple operation,, automatic discharge, lower labor intensity, unique rotary tooth row form to make material mixing more uniform,loading raw materials capacity is high.
Pneumatic quantitative kink filling machine
1.model :QG-II
2.working pressure:0.5-0.7MPa
3.Minimum filling :20grams
4.Max filling :1000grams
5.Filling capacity:100-500Kg/h
6.Dimension (L×W×H):500×730×1400mm
7.Weight:120Kg
This machine is a meat and small meat filling equipment produced by our factory. It is an ideal equipment for small meat processing enterprises to produce round ham. The equipment is beautiful in appearance, small and exquisite, and the food contact part and outer packaging are all made of stainless steel. The quantitative can be adjusted freely between 50-500g, the error is only about 2g.
luminum wire automatic punch 1.Max speed :60 times /min
2.Casing folding size:35-120(mm)
3. Aluminum wire diameter:φ2.1-φ2.9
4. air compressor:0.6MPa(min).
5. power :~220V 50HZ
6. height of work center:850mm
7.dimension:630×630×1500mm
8.weight:290kg
The machine adopts advanced pneumatic, photoelectric control principle, equipped with microcomputer control, sealing tight, filling full degree adjustable, beautiful buckle shape, reliable quality, reasonable structure, reliable performance, simple operation, easy maintenance, is the ideal equipment for meat processing.
High pressure sterilization machine Pot body drum diameter :900mm
Drum length :1800mm
Materials : whole set by SUS304
Effective volume:1.14m3
Capacity : about 350Kg/batch
Rise temperature time : 25 minutes
Replacement water speed: 3min/ pot
Design pressure :0.35Mpa
Test pressure :0.43Mpa
Max working pressure :0.32Mpa
Max working temperature :145ºC
The high-pressure sterilization pot adopts the principle of high temperature and high-pressure hot water, and is used for high temperature and rapid sterilization of various foods. The food continuously rotates slowly in the device, which makes the heat conduction more rapid and uniform, shortens the sterilization time, and thus achieves high temperature and short-time sterilization effect. , to stabilize product quality, widely used in food, beverages, high temperature sausages, etc.;
Vacuum packing machine Model :DZ-600/2S Seal size:600*8/2s Seal center distance:500mm Efficiency times:90-360time/ hour Vacuum chamber size:720*610*140mm Dimension:1425*725*920mm
The 600 model double-chamber vacuum packaging machine can automatically extract the air in the packaging bag, complete the sealing process after reaching the predetermined vacuum degree, and form a vacuum in the bag, so that the packaged articles can achieve oxygen barrier, fresh-keeping, moisture-proof, mildew-proof, rust-proof, Anti-corrosion, anti-insect, anti-pollution and other purposes, effectively extend the shelf life, preservation period, easy to store and transport. It has the advantages of waterproof, moisture-proof, low failure rate and long service life. These advantages make the device easy to clean.

Stainless steel work plateform Dimension: 1400*900*780mm Materials :SUS304 stainless steel Stainless steel make, for food processing, clean and meet with food grade requirements
Stainless steel small car 1.dimension :680*680*650mm
2.materials :SUS304 stainless steel
Use for load raw materials

Any more information you need Full Automatic Meat Process Machine Salami/Ham Making Machine /Sausage Stuffer Filling Machine/ Sausage Making Line/Sausage Making Machine For Sale, please feel free to contact with us.

Mrs Winni
Chongqing Qiaoxing Machinery & Equipment Company
Add: 4-6-88, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China
