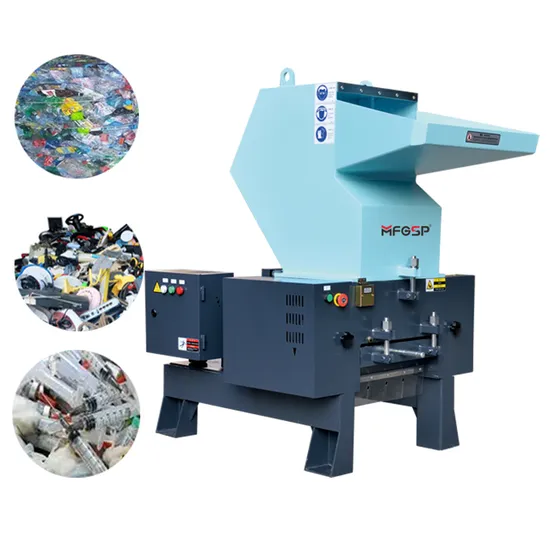

Pulverizing all kinds of plastics Crush Capacity 150-200kg/H Strong Crusher
| US$1,900.00-2,300.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SG-300F
Type
Hard Plastic Crusher
Raw Material
PP,PE,ABS,PVC etc.
Structure
Top Feed
Knife Classification
Claw Knife Crusher
Knife Roll
Solid Knife Roller
Computerized
Non-Computerized
Certification
CE, ISO9001:2008
Chamber Calibre
200x300mm
Crush Capacity
150-200kg/H
Rotating Blade
3x3pcs
Fixed Blade
2x1
Motor
5.5kw
Weight
400kg
Transport Package
Standard Export Packaging
Specification
950x740x1190mm
Trademark
MFGSP
Origin
China
HS Code
8479820090
Production Capacity
5000sets/Year
Packaging & Delivery
Package Size
96.00cm * 84.00cm * 129.00cm
Package Gross Weight
410.000kg
Product Description
Strong Crusher
Performance characteristic:
The device is applicable to centralized pulverizing of all kinds of plastics,including the waste of injection moulding,blow molding and extrusion forming.
The structure of Crusher is compact for convenient operation,easy cleaning and maintenance which enhances the working efficiency.
| Specifications: | |||||||
| Model | Chamber Calibre (mm) | Crush Capacity (kg/H) | Rotating Blade (Pcs) | Fixed Blade (Pcs) | Motor (Kw) | External Dimension LxWxH (mm) | Weight (kg) |
| SG-230F | 200x230 | 100-150 | 3x2 | 2x1 | 4 | 920x610x1050 | 250 |
| SG-300F | 200x300 | 150-200 | 3x3 | 2x1 | 5.5 | 950x740x1190 | 400 |
| SG-400F | 235x400 | 200-250 | 3x4 | 2x1 | 7.5 | 980x840x1300 | 500 |
| SG-500F | 290x500 | 300-350 | 3x5 | 2x2 | 11 | 1100x1020x1530 | 950 |
| SG-600F | 320x600 | 350-450 | 3x6 | 2x2 | 15 | 1200x1110x1690 | 1300 |
| SG-800F | 540x810 | 450-600 | 3x4 | 2x2 | 22 | 2200x1500x2300 | 2100 |
| SG-1000F | 660x1000 | 600-1000 | 3x5 | 2x3 | 30 | 2300x1750x2650 | 2500 |
| SG-1200F | 800x1200 | 800-1200 | 3x6 | 2x3 | 45 | 2700x2100x3100 | 3500 |
| Note:The crushing capacity depends on the diameter of screen mesh. | |||||||
