Servo Medium Speed Cutting Efficiency Wire CNC EDM Machine Lk400s

Servo Medium Speed Cutting Efficiency Wire CNC EDM Machine Lk400s

US$12,500.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Lk400s
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, RoHS, ISO 9001
Condition
New
Transport Package
Wooden Box Packing
Specification
1960*1620*2160
Origin
Suzhou, China
HS Code
8456301090
Production Capacity
1000/Year

Product Description


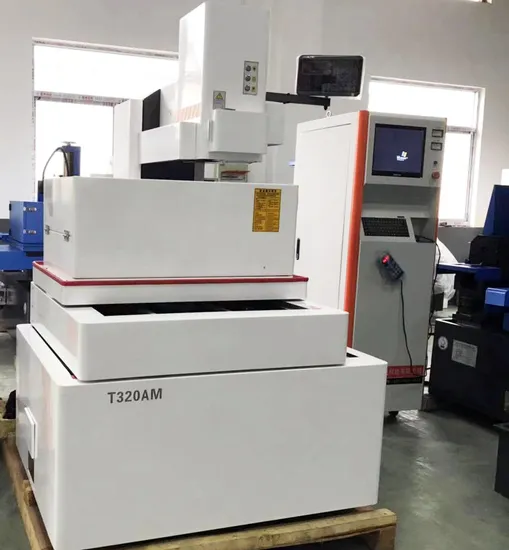

Servo motor Factory supply CNC EDM wire cutting machine LK400S

Performance of the whole
Equipment type unit LK-400S

Fuselage
Host Size (Length * Width * Height) mm 1700*1300*2160
Total weight kg 1500
Workbench Workbench size (width x length) mm 740*460

trav
el
X-axis travel mm 320
Y-axis travel mm 400
Z-axis travel mm 300

CNC Power Supply
pulse width us 1-250
Silk speed 0-3
Cutting number time 1-7
Mini Mechanical Driving Equivalent um 1
Pulse Resolution um 0.4

Processing capacity
Spindle stroke (electrically adjustable) mm 250
Max.cutting slope/workpiece thickness 6°~30°/80mm
Max. Bearing Capacity of Workbench kg 300

Machining accuracy
Location accuracy X/Y mm ≤0.01
Repeated positioning accuracy X/Y mm ≤0.005

Multi-tool Cutting Accuracy

mm
≤0.005( 40mm,Cut one and repair
two.
MaterialSKD11orCr12,HRC58)
Optimum Surface Roughness um Ra≤1.0(MaterialSKD11 or Cr12,HRC58)
Maximum cutting efficiency mm2/min ≥220
Common cutting efficiency mm2/min ≥140
Max. Processing Current A ≥6-8
machine Processing
efficiency
No-load Voltage of Machining Power Supply V 100
Power consumption KW ≤2.3
Wire traveling system Electrode wire diameter mm ∮0.12-∮0.2
Wire barrel traveling speed frequency control
Tightening method Two-way automatic tightening
Wire travelling speed m/s 3-12

working groove
Filtration accuracy um <10
Filtration mode Slow-Walking Filtration
Working fluid Special cutting fluid

Environment and electricity
electric power 380V±10% / 50/60Hz / 2kVA
temperature T15-30ºC / humidity40-80%
pressure kpa 86-106kpa


Servo motor Factory supply CNC EDM wire cutting machine LK400S
2, Characteristics and functions of the equipment
The X and Y axes are with imported high precision linear guides and imported high precision ball screw that can directly driven by Panasonic AC servo motor from Japan , thus determining the long-term high accuracy of machine tools and avoid transmission errors when moving.
The guide nozzle adopts the design of slow-moving wire. The UV axis is fixed and the guide nozzle can rise and fall automatically, so that it can be as close as possible to the workpiece's machined surface, prevent the molybdenum wire from shaking again, avoid the line marks on the cutting surface, and greatly improve the accuracy and roughness of the machined surface.
The tightening system uses two-way automatic tightening device to tighten molybdenum wire in real time. Then the unevenness and accuracy of the processing plane caused by the inappropriate tightness of molybdenum wire in the process of processing are thoroughly solved.
The guide wheel adopts a special gem guide wheel to locate the sprinkler plate. Replacement can automatically return to the origin, greatly reducing the difficulty of replacing vulnerable parts, and facilitating the use of customers.
The imported linear guide rail and the imported switch are used for the barrel guide rail and the commutation switch to ensure the stability, high precision and long-term reliability of the barrel at high and low speeds.
"Slow Wire Structure" Filtration Water Tank

Oil lubrication system:
One-stop automatic centralized oil supply device can lubricate X, Y guideways, screw rods, barrel guides and screw rods, and ensure the service life of the machine.
The machine has an oil recovery system, which can recover the excess oil and ensure the environmental hygiene around the machine.
High accuracy and uniform surface roughness:
In order to ensure the accuracy of each machine, Longkai uses Renishaw laserinterferometer from UK to check the positioning accuracy and repetitive positioning accuracy of the equipment. The high-configuration guide wheel and guide nozzle are adopted in the silk hauling system. The reasonable layout completely solves the problem of single side loosening and makes the machined surface achieve uniform roughness.
AutoCut WEDM system (hereinafter referred to as AutoCut system) is a WEDM system based on Windows XP platform. AutoCut system is composed of system software (CAD software and control software) running under Windows, 4-axis motion control card based on PCI bus, high reliability, energy-saving AC servo motor drive motherboard and 0.5 microsecond high. Frequency main vibration board and sampling board are composed. Users use CAD software to draw processing graphics according to processing drawings, and to cut CAD graphics by wire. Processing, generating two-dimensional or three-dimensional data of WEDM and carrying out parts Processing; In the process of processing, the system can intelligently control the processing speed and parameters, and complete the processing control for different processing requirements. This graphical processing method is an organic combination of CAD and CAM systems in the field of WEDM.
The system has convenient operation functions such as adaptive control of cutting speed,
real-time display of cutting process and preview of processing. At the same time, it provides perfect protection for all kinds of faults (power failure, machine crash, etc.) to prevent the scrapping of workpieces.
AutoCut system is a complete solution of WEDM. AutoCut system is composed of AutoCut system software, motion control card based on PCI bus, high reliability, servo drive control motherboard, AC high frequency discharge board and sampling circuit.
