Factory Price Chicken Meat Corned Beef Luncheon Meat Tin Can Processing Machine Canned Food Production Line Machinery Canned Filling Machine

Product Description

Product Description
Canned Meat Production Line
Shanghai LWT provides could offer you tour best canned production line, we could analysis according to your application occasion , then design the whole process, and work out the best solution according to your requirment . we could offer our best post-service such as the techinique training. and besides, you could enjoy a good business future for manufacturing the canned food for the customer in the market, for the canned food, we have the production line for the Meat, Fish, Vegetables, Fruits, Beans, Mushrooms, Canned Pets for the finished canned food.

Product Name	Fully Automatic Project Canned Meat Production Packing Line
Application	Lunch meat, chicken, mutton, braised meat, pork, fish and other canned food
Operation mode	Fully automatic / semi-automatic (customized)
Capacity	1400-6000bph(It can be customized according to the capacity)
Support bottle type	Glass Bottle,Iron Cans,Plastic Jar

Product Show
Recommended Products

Name	Funtion&Specifications
Meat pre-processing line
1. Bubble cleaning machine	Bubble(dry bean 0.5T--1T/H)
2. Precooker	With cooling 5min (85ºC-90ºC) L=10m W=1100mm
3. Soak	With lifting
4.Frozen meat cutting machine
5. Lifting conveyor	moveing to tank of filling machine
6.Frozen Meat grinder
7. Vacuum double axis mixer
8. Movable Meat lifter
9. Luncheon meat can portioning-type filler	use measuring working way
10.Liquid mixing tank
11. Cans Sealing Machine	Sealing Can(500g)
Packing Line
12. filled cans washing and drying machine	Clean the residue on the can
14. Lid loading machine+Capping machine	Seal the jar
15. high pressure sterilization machine	Sterilize cans
16. drying system
17.case packer	Load the product into cartons
18.palletizer(can and carton)	Stack products together
17. Wet glue labeling machine	Labeling cans
18. date ink-jet printer	Date printing of cans
19. rotated turntable include motor driving conveyor	Used for conveying products
20. manually base box packing paltform
21. automatic wrapping machine	Wrap the packaged products together

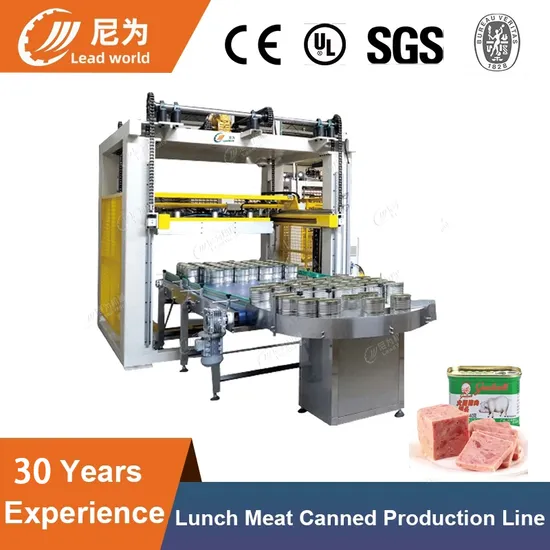

Empty Cans De-palletizer
Empty cans De-palletizer is mainly composed of lifting mechanism, moving mechanism, magnetic suction mechanism, conveyor and electrical controlling system. The working way adopts magnetic suction and moving type. It can match with magnetic lifting conveying system, can transport product in the air and can transport product among different height of floor.
Magnetic Cans Washing Machine
The machine is used for tinplate can,ring-pull can continued cleaning,adopt steam heating way,temperature is adjustable,it adopt
high pressure standard nozzle. It has good cleaning efficiency,reasonable structure,stable work performance,high efficiency,it is
ideal equipment of canned food beverage production line.


Filling Machine
The device is used for automatic weighing of all kinds of solid raw materials, filling in glass bottles, tin cans and other containers within the device. To complete the automatic measurement of solid raw materials, feeding, canning, finished product delivery of all the packaging process.
Cans Sealing Machine
Automatic vacuum sealing equipment, specifically for the tinplate, aluminum round cans (cans) a variety of sizes can be used for sealing the shape.

Load And Unload Baskets Machine
It is mainly applied to all kinds of cans of drinks, tin cans of drink, canned meat, canned vegetables and secondary sterilization plastic bottle beverage etc process loading automatically before sterilization,unloading after sterilization,replace the artificial working,save manpower, greatly improve production efficiency.


Sterilization machine
The Machine is suitable for high temperature and high pressure sterilization of canned meat,beans,mushrooms,fish etc



Company Profile
FAQ
Q1: What is your company's main products?
Filling Machine,Palletizer/De-palletizer, Conveyors, Case Packer, Carton Erector,Carton Sealer,Capping Machines, Packing Machines and Labeling Machines. Q2: What is delivery date of your products?
Delivery date is 30 working days usually most of the machines. Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine. Q4:Are you manufacturer or trading company?
We are manufacture and we have our own design team. Q5:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient. Q6:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly. 2.Our different worker is responsible for different working process, their work is confirmed,and will always perate this process,so very experienced. 3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc. 4.We will do strict test running after the machine is finished. 5.Our machines are certified by CE. Q7:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technical drawing, but also can he new machine according to your requirements. Q8:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your worker if needed.
