Fully Automatic 4/6/8 Cavity Pet Bottle Blowing Machine

Fully Automatic 4/6/8 Cavity Pet Bottle Blowing Machine

US$72,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FG-B4
Raw Material
PET
Making Method of Parison
Injection Blowing
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
with After Sale Service
Name
Mineral Water Pet Bottle Blowing Machine
Mold
Customized by Pet Bottle Blowing Machine
Body Diameter
≤100mm
Volume
250ml to 2L
Control
PLC Control, Mitsubishi
OEM
Yes
Cavity Number
4 Cavities
Work
Can Be Connected with Filling Machine
Touch Screen
Siemens
Transport Package
Wooden Packaging
Specification
CE, ISO9001
Trademark
Faygo Union
Origin
Jiangsu Zhangjiagang
HS Code
84773090
Production Capacity
Capacity

Product Description

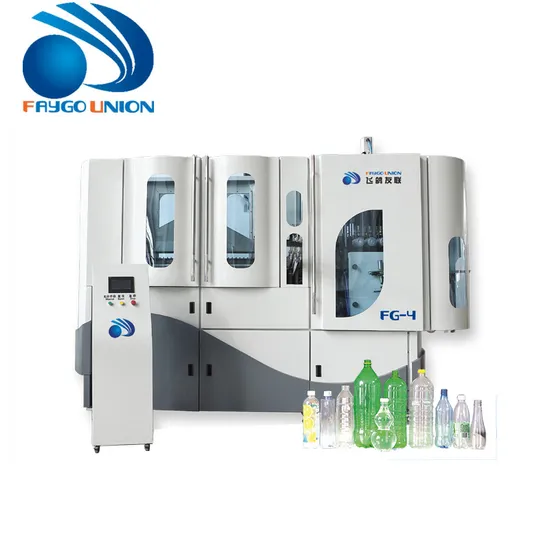

Fully Automatic Pet Bottle Blowing/Moulding Machine Trc-1L-4
FG4 Pet bottle blowing machine


1.FG 4 PET Bottle Blowing Machine Description:
FG4 PET bottle blowing machine fills the gaps in the domestic high-speed linear blowing machine. Currently, domestic single-mold speed of linear blowing machine still stay 1200-1500BPH, while international max single mold speed has reached 1800BPH. High-speed linear blowing machines rely on imports. In view of this situation, Faygo Union Machinery developed China first high speed linear blowing machine: FG4. The single mold speed can reach 1800 BPH. FG4 has 4 cavities, production capacity is 6800-7200BPH. FG4 linear blowing machine is developed completely independently, has our own intellectual property rights, and has obtained more than 10 national patents.

FG4 pet bottle blowing machine is composed of three modules: prefrom elevator, perform unscrambler and host machine. It is equipped with automatic perform loading and unloading system. The machine is applicable for all shapes of drinking water bottles, carbonated bottles and hot filling bottles.

This FG4 pet bottle machine has reasonable structure design, featured by its high speed, small space occupation, low power and HP consumption, less noise and excellent stability, and conforms to national beverage sanitary standards. It symbolizes the highest level of national linear blowing machine, It is the ideal bottle making equipment for beverage enterprises.

Why Choose Us ?
2.FG Series PET Bottle Blowing Machine Advantages:
1) Servo driving and cam linking blowing section:
The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement, equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.
2)Small performs distance heating system
Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption.

Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.
3)Efficient and soft perform inlet system
By rotary and soft preform inlet system, the speed of prefom feeding is ensured meanwhile, the preform neck is well protected.

4)Modularized design conception
Adopting modularized design concept, to make it convenient and cost-saving for the maintenance and changing spare parts.
3.Samples photos(preform and PET bottles):
Configuration of pet bottle blowing machine:
4.FG4 Optional items:
1) Exploded bottles ejection unit
During the blowing process, if the bottle burst, bad bottles can be automatically removed. This prevents the bad bottles from entering the filling machine.
2) HP air recovery system
After the bottle blowing, high-pressure air can be recycled and used again for the pre-blowing and machine physical movement.
3) Oven and preform temperature detection system
Detection system detects temperature of oven and the temperature of performs. When the preform temperature does not reach the set blowing temperature, blowing workstation will alarm, not blown.
5.Technical Parameter:

Type
FG4
FG6
FG8
Mark
Specifications of bottle
Mould number(piece)
4
6
8

maxi volume (mL)
2000
2000
2000

maxi height (mm)
328
328
328

maxi diameter (mm)
105
105
105

Square bottle for max diagonal length (mm)
115
115
115

preform Specifications
Suitable inner bottle neck (mm)
20-25
20-25
20-25

preform max length (mm)
150
150
150

Capacity (bottles / hour) at 17 g 500mL
7200
9600
12000

Electricity
Install power (kw)
51
74
97

Heating oven total power (kw)
46
69
92

Heating oven actual power consumption (kw)
26
40
50

Voltage / frequency (V / Hz)
380v,50hz
380v,50hz
380v,50hz

Allowed voltage fluctuation
±10%
±10%
±10%

HP Air
Pressure(bar)
30
30
30

Capacity(m³/min)
4
5.5
7

Cooling Water
Mold water
pressure(bar)
4-6
4-6
4-6
Water chiller
6HP
Suitable temperature range (ºC)
6-13
6-13
6-13
Flow (L / min)
45
45
45
Oven water
pressure(bar)
4-6
4-6
4-6

Water chiller

3HP

Suitable temperature range (ºC)
6-13
6-13
6-13
Flow (L / min)
22
22
22
Machine Specification
host machine dimension (m) length × width × height
3.3*1*2.3
4.3*1*2.3
4.8*1*2.3

Weight (Kg)
3200
4000
4500




Note: the parameter above is based on the 17 grams of 500mL PET bottles. If the bottle conditions change, the corresponding parameter will change also. With the development and innovation of technology, the data above may be changed or improved, so it is for reference only. For precise and detailed data, please consult our technical department.

6.Letters Patent of FG4 pet bottle blowing machine:

Build an idea factory for you !
Our Services
After sales service 1> Find our products through http://faygounion.en.made-in-china.com.
2>After one year , we can help you to maintain the machine and the accessories are provided only one the cost price.
3>Every 3 year , we can help to overhaul the machine freely(labor).
4>Free production technology and process configuration.
5> We can help you to design the product line , workshop and provide turn-key project.
6>Installation: Experts' team to buyer's country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $80/day during the engineer's journey.
7>Warranty: One year from the date from the date of Installation or acceptance of the Plant whichever comes first.
Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part .
Company Information
Fully Automatic Pet Bottle Blowing/Moulding Machine Trc-1L-4
FAQ:
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q:All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
Welcome to visit our factory !
