5-6tph High Efficiency Hammer Mill for Wood Chips Grass and Straw

Product Description

High Efficiency Sawdust and Wood Biomass Hammer Mill with CE Certification Product Description

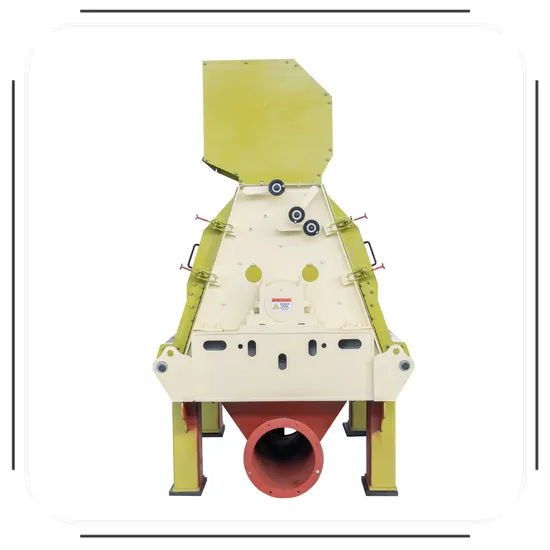

TFD series high-efficiency hammer mill is a pulverizer specially used for raw materials crushing in the biomass fuel production process. It has two series of single spindle and dual spindle, with features of high output and efficiency. It can crush wood chips, shavings, crop and plant crude fibers, roughage, etc
Advantages of our high efficiency hammer mill:
1. The shell adopts welded-steel plate construction, the main machine is embedded for seal, completely avoids dust spillover and maintains a clean work environment.
2. The motor and crusher are direct-connected driving with drum coupling and built-in rotors. Dead-zone free crushing and better uniform granularity.
3. The magnetic selector on the upper part can sort out the magnetic metal materials and reduce the machine's damage rate.
4. Forged hammers has symmetric homogeneous permutation, small vibration without blind angle, large crushing friction area. Wear-resisting material behind sieving slice has big wrapping angle. Hammer are independent designed with fasteners for easy assembly. The blades are enhanced for better wear-resistance and longer working life.
5. After balance calibration, rotors can work reversely.
6. The operating door has safety interlock equipment to make sure it can not be opened when the machine is running.
7. The blower's efficiency is maximized with faster pneumatic conveying and minimum wind resistance. Arc side door ensures easy observation and replacement of the sieve, without disturbing wind and flying dust.
Detailed Photos
Spare Parts of Hammer Mill
The sawdust making machine key spare parts such as hammers and screener are made by our CNC systems, through high technical heat treatment, standing out from other suppliers is that we could ensure the parts high precision and good quality.
Screener
The bottom diameter of screen is 6mm-12mm, thickness is greater than 4mm. Rotor Group
The motor and the hammers are directly connected by the coupling.
There is no dead angle during the crushing so the finished product is very fine.
The rotor has made the balance test and can work backward. Hammer
The corners of the hammers are welded with high hardness material like carbon tungsten alloy. The welding layer thickness is around 3mm. The lifetime is 7- 8 times by normal 65Mn overall quenching hammer.
Components of Grinding Process

Item	Function
Belt Conveyer	To transport materials into hammer mill.
High Efficiency Hammer Mill	To crush the materials into 6-10mm sawdust
Blower	To help transport the sawdust into dryer
Cyclone	To discharge the materials and collect the dust
Air-lock	To prvent the outside air from entering inside
Bag Dust Collector	To collect the dust while in the production

Product Parameters
Specifications of hammer mill

Type	Model	Power(KW)	Capacity(T/H)	Hammer QTY(PC)	Size:L*W*H(MM)	Weight(T)
Single Shaft Hammer mill	TFD65*55	37-55	1-2	48	2000*1600*1700	2.5
	TFD65*75	55-75	2-3	72	2000*1800*1700	3.2
	TFD75*100	90-110	3-5	90	2000*1800*1900	4.5
	TFD75*130	132	4-5.5	96	3000*1950*2200	5.9
	TFD75*160	160	5-6.5	120	3000*1970*2200	6.7

Raw Materials to Finished Products:
All kinds of wood, timber scraps, tree branches, wood chips, edge material, tree bark, bamboo skin and other material which can be crushed into sawdust.
Operating Principle:
Motor of Hammer crusher drives rotor to rotate in high speed in the crushing cavity. The materials are feeded into the machine through the upper feeding opening and are striked, impacted, sheared and grinded by high speed moving. Under the bottom of rotor, it is equipped with sieve plate. Among the crushed materials fractions that is less than mesh size are discharged through sieve plate, materials fractions that is bigger than mesh size are kept on the sieve plate to be striked and grinded by hammer and they are discharged out of machine finally. The main woriking parts of hammer crusher is the rotor with hammer. Rotor consists of main shaft, disc, pin roll and hammer.
Installation Instructions
Hammer Mill in Customer's Factory:
Certifications
Packaging & Shipping
Company Profile
CUSTOMER VISIT
TONY EXHIBITION
After Sales Service
CUSTOMIZED PELLET LINE:
Frequency Questions:
1.Q:Are you a manufacturer or agency?
A:We are a manufacturer with our own factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhangqiu City, Shandong Province, China.
You can fly to Jinan airport and then we will pick you up(40 minutes by car) .
All our clients are warmly welcome to visit us!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality
controlling from the very beginning to the very end. Our factory has
gained CE authentication.
