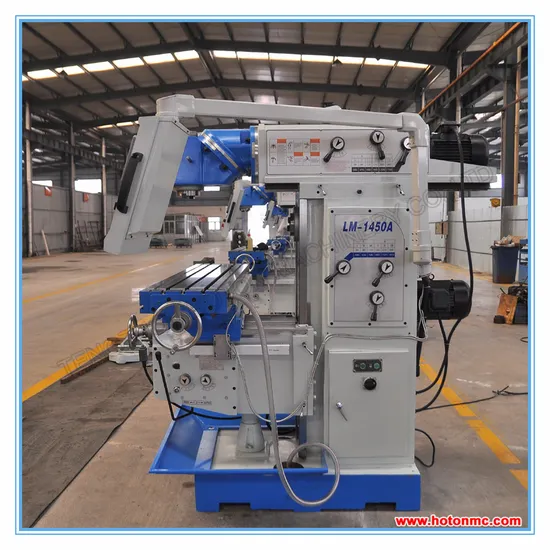

LM1450A vertical-horizontal milling machine with universal swivel head from China
| US$10,000.00-11,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LM1450A
Type
Worktable Milling Machine
Object
Metal
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Table Size
360X1600mm
Long Travel(mm)
900mm
Cross Travel(mm)
320mm
Vertical Travel(mm)
400mm
Motor
4 Kw
Transport Package
Plywood Case
Specification
2700kgs
Trademark
HOTON
Origin
Shandong, China
HS Code
8459590000
Production Capacity
10 PCS/Month
Product Description
SWIVEL HEAD UNIVERSAL MILLING MACHINE FEATURES:
1. LM-1450A universal swivel head milling machine is based on theLM1450,
2. Installation of rotary table 45 degrees,
3. Processing of a wide range, three-axes automatic feeds,
4. Large torque and strong power, 1.5KW,
5. Fast-moving 2000mm/min.
6. Spindle taper is ISO 50
SPECIFICATIONS:
| MODEL | UNIT | LM1450A |
| Table size | mm | 1600x360 |
| T slot no./width/distance | no | 5/18/80 |
| Max. load of Table | kg | 400 |
| swivel angle of table | degree | ±45º |
| table Longitudinal travel(manual/auto) | mm | 900 |
| table Cross travel (manual/auto) | mm | 320 |
| table Vertical travel(manual/auto) | mm | 400 |
| Swivel angle of milling head | 360º | |
| Spindle taper | ISO50 | |
| spindle speed /step -- Vertical | rpm | 60-1800 |
| --Horizontal | rpm | 60-1700 |
| Distance from vertical spindle axis to column surface | mm | 160-800 |
| Distance from vertical spindle nose to table surface | mm | 200-600 |
| Distance from horizontal spindle axis to table surface | mm | 0-400 |
| Distance from horizontal spindle axis to ram bottom | mm | 200 |
| ram travel | mm | 600 |
| Longitudinal/cross feed | mm / min | 30~630(X,Y) |
| Vertical feed /step | mm/min | 30~630(Z) |
| Longitudinal/cross rapid speed | mm / min | 2000 (XY) |
| Rapid Traverse vertical | mm/min | 2000 (Z) |
| main motor | kw | 4 |
| (X/Y/Z) feed motor | kw | 1.5 |
| coolant motor | kw | 90W |
| overall dimension | cm | 207x202.5x220 |
| Machine weight | kg | 2650 |
| Contact Us: |
| Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
