Taijia Digital rebound concrete test hammer HT-225Q

Product Description

Product Description

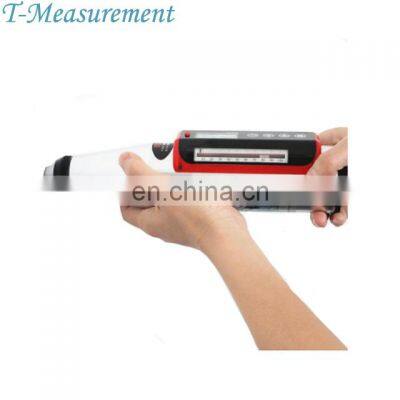

Product DescriptionHT-225Q Digital Concrete Hammer is a high-tech product, special designed for the needs of in place test for concrete compressive strength applied to non-destructive test (NDT) hardened concrete compressive strength component in construct projectsDetailed ImagesHT-225Q Digital Concrete HammerA.Submit to Technical specification of inspecting Concrete Compressive Strength by Rebound Method (JGJ/T23-2011). And ASTM C805, EN12504B.Automatic recording function improves the efficiency of measurementC.Using sensitive operation touch keys. The keys are not easy to aging.D.Integrated wireless structure of the test hammer host and the displayer part. Easy to carry and make work efficientE.The instrument is powered by a built-in rechargeable lithium battery which can operate continuously for more than 10 hoursFeaturesModelHT-225Q Digital Concrete HammerMeasuring ranges10-70MPaImpact energy2.207±0.1J (0.225Kgfm)Length of spring stretch75±0.3mmTension spring stiffness785±30N/mThe static friction of pointer slider0.65N±0.15NRadius of spherical tip25mm±1mmThe average rebound values on steel anvil80±2Data storage capacity200 standard componentsPower supply1×5#NiMH Rechargeable batteryHousing dimensionsΦ54×280mmWeight=1kgPacking & DeliveryHT-225Q Digital Concrete Hammer packing detail1.Case:Water proof case/ High Aluminum case2.Outer packing:Carton3.Mini order quantity:1 set4.Weight:Around 6 KGSRelated ProductsMulti Functional Rebar detectorMechainal Concrete test hammerCrack width gaugeContact usIf any interested on our HT-225Q Digital Concrete Hammer, welcome to send us inquiry!1. Experienced company -- 10 years experience in supplying ultrasonic measurement equipment.2. MOQ:1set3. We accept T/T. Western Union.PayPal & Secure Payment4. We offer 18 Month's Warranty on all product5.For more information please contact us by mail ndt at Or by Skype:tmeasurement04 Or by Whatsapp:+8615998577470 Or by Phone: 86-411-39685079
