Hyperfore Sanitary Receiving Station/ Receiver for Household Cleaning Agent Pipelines/Pig Launcher and Receiver

Product Description

Product Description
Hygienic (sanitary)pigging system
Hyperfore provides hygienic automatic pigging system/pigging recovery system, the main components include a launcher, pig stopper, a receiver and a pig, our pigging system is modular design, can be easily integrated into the liquid processing pipelines
Suitable for applications in food, beverage, dairy, chocolate, candy, cosmetics, shampoo, paint and coating, cleaning agent, Lithium battery and other industries
Benefits:
1. automatic control by PLC program, reducing largely humane error
2. effectively reducing your material waste
3. recover 99% plus of the residual in pipeline
4. effectively saving cost
5. enhance productivity
6. fast return on investment, normally 3-9months
7. easy to be cleaned with CIP
Product recovery system solutions include
1. Pigging system 3D design
2. Pigging system equipment supply
3. Automatic system
4. Installation service
5.On-site commssioning and user training
6.Maintenance and repair services
7.Spare parts supply

Product Parameters
The following specifications are provided:
Din11850 Series II standard:
DN40,DN50,DN65,DN80,DN100,DN125,DN150
ISO standard:
1.5",2",2.5",3",3.5",4",5",6"

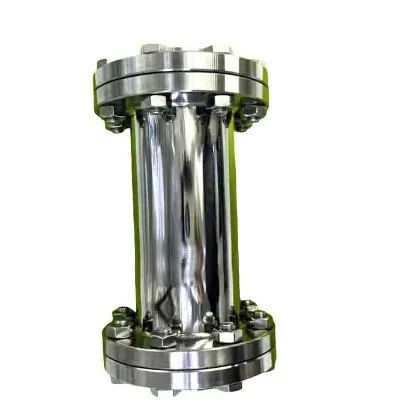

Automated receiving station (SUS316L) - Flange connection - ISO Series

Part No.	Size	A	B	C	D
DHRSFBAT025A-C1	1"	103	66	Φ25.4*1.5	73.2
DHRSFBAT032A-C1	1.25"	104	74	Φ31.8*1.5	76.2
DHRSFBAT038A-C1	1.5"	118	79	Φ38.1*1.5	76.2
DHRSFBAT051A-C1	2"	138	92	Φ50.8*1.5	86
DHRSFBAT064A-C1	2.5"	165	111	Φ63.5*2.0	92.5
DHRSFBAT076A-C1	3"	179	125	Φ76.1*2.0	98
DHRSFBAT089A-C1	3.5"	204	137	Φ88.9*2.0	105.8
DHRSFBAT102A-C1	4"	233	157	Φ101.6*2.0	113
DHRSFBAT127A-C1	5"			Φ127.0*2.0
DHRSFBAT152A-C1	6"			Φ152.4*2.0

Aseptic receiving station (SUS316L) - Flange connection - DIN 11850 second series
Company Profile
Hygienic Pigging System and Solutions -Professional SupplierHYPERFORE is an experienced manufacturer of hygienic pigging system in China. We were established in 2005. And the product recovery systems we design and manufacture are manual, automatic, sanitary and aseptic. At the same time, we also provide hygienic pigging system solutions for all kinds of industries. Hyperfore has been engaged in high-quality recovery pigging system research and development. Meanwhile, we continuously update the pigging technology. Our pigging products like pigging stations and sanitary pigs are cost-effective. And they meet customers' special requirements.Nowadays, we are so honored to provide our high-quality and economical product recovery systems and services to the global clients. Meanwhile, these clients are active in various industries. For instance, dairy products, beverage, edible oil, pharmaceutical, cosmetics, cleaning liquid, hotpot sauce, lithium battery slurry, paint and coatings, curry sauce and any liquid product that is pumped and transferred in pipeline.Hyperfore is a professional and responsible company.Because our most important goal is to raise customers' competitiveness. Certainly, the interests of our customers are what we care most.
Our Advantages
Hyperfore has extensive experience in pigging system solutions. We boast a professional technical team, excellent after-sales service, fast delivery, professional industry certificates, and numerous successful cases.
Hyperfore provide high quality, advanced pigging system(liquid product recovery system), customized pigging solutions for sanitary, hygienic process applications.
Our proven pigging solutions are widely used in hygienic and sanitary applications such as food, sauce,dairy, beverage, candy, liquid detergent, shampoo, toothpaste,chemicals, pharmaceuticals, paints and coatings and so on.
We provide both pigging projects and liquid product recovery products such as pigging system, pipeline pigs, special valves, pig detection unit, pigging system control and automation, operation training and much more.
We provide high quality spare parts with high levels of technical service and support. Packaging & Shipping

FAQ
1. What is the difference between pig launchers and pig receivers?
There are some differences between the pig launcher and pig receiver. First, the pig launcher is to used to launch the pig to the pigging pipe, while the pig receiver is to stop the pig at the destination point. Second, the pig launcher is mounted at the beginning of the pigging pipe, and the receiver is mounted at the end of the pigging pipe. Third, the pig launcher is the home base of the pig, but the receiver is just to stop the pig.Fourth, the pig can be CIP in the launching station, when the pig arrives at the pig receiver, the pig has to be sent back to the launcher.
2. Why is it called a pig launcher and a pig receiver?
The reason why it is called a pig launcher maybe because one of its functions is to launch the pig to the pigging pipeline. The pig stays inside the launching station at first, after the pigging begins, it is transmitted into the pipes by the launcher.
3.Who makes pig launches and pig receivers?
Hyperfore is a professional pigging system manufacturer. We make different kinds of pig launchers and pig receivers. Such as manual pig launchers and receivers, automatic pig launchers and receivers, sanitary pig launchers and receivers.
