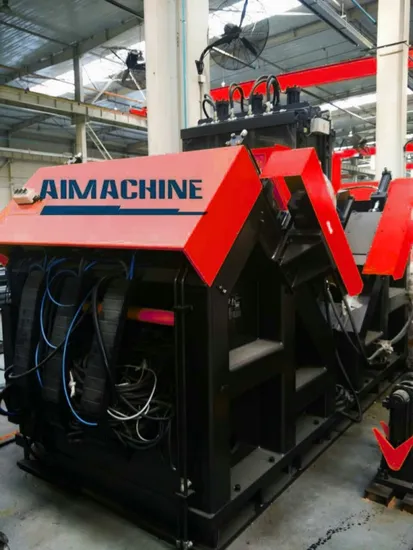

CNC Tower Angle High Speed Drilling Cutting Marking Machine

CNC Tower Angle High Speed Drilling Cutting Marking Machine

US$21,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SAD
Process Usage
Drilling Holes
Control Method
Automatic
Numerical Control
CNC/MNC
Certification
CE, ISO 9001
Condition
New
Spindle Taper
Bt40
Range of Angle Steel That Can Be Process
140*140*10~250*250*32
Maximum Speed of Drilling Spindle
6000 R/Min
Angle Steel Feed Speed
40 M/Min
Transport Package
Pallet
Trademark
AI-MACHINE
Origin
China
Production Capacity
5sets/Year

Product Description

Product Description
Applicable industry:The machine is the special equipment used for angle steel type, drilling etc. and automatic production in the field of power and telecommunication.
Product feature
1. High-efficiency processing equipment for tower manufacturing industry-Drilling, marking, CNC automatic production line for angle.
2. Mainly for drilling large and high-intensity angles
3. Precision spindle, high-speed drilling.
4. The drilling unit is equipped with six CNC drills. All the holes on the angle can be completed in one time.
5. Use high-speed carbide drills with inner cooling.
6. The machining process is numerical control and operation is very convenient. It can fulfill automation, high-precision, multi-species and high quantity production.
7. The upper computer adopts English interface which is easy to operate. It can accept certain processing program which is made from special software. And also you can program manually.
8. Marking unit adopts closed frame with good rigidity. Marking stadia can be set at will.
9. CNC infeed carriage is driven by servo motor. The photoelectric encoder feeds back the information. Closed loop control to ensure high positioning precision.
10. Key hydraulic, pneumatic and electric parts all imported.
Product Parameters
Model SAD2532 SAD3635
Angle size(mm) 140x140x10~250x250x32 140x140x10~360x360x35
Max. length of blank(m) 12/14(By users' request)
Marking force(kN) 1030
No. of character group (piece) 1
No. of character in each character side(piece) 15
Character side (mm) 14×10×19
Range of stadia(mm) 50~220(Stepless adjustment)
No. of drill on each side(piece) 3
MAX. diameter of drilling(mm) φ26 φ40
Stroke of Spindle(mm) 140
Max. Spindle rotation speed(r/min) 6000
Feeding speed of angle(m/min) 40
Max. moving speed of slipway of drilling head(m/min) 10
Max. feeding speed of drilling head(m/min) 14
CNC axes (piece) 9
Overall dimensions(m) 30×7.5×3 30×8.9×3
Gross weight of machine(kg) Approx.30000 Approx.31000

Company Profile
AI-Machine(Shandong) Industry Technology Co.,Ltd is a high-tech company known for its advanced technology and perfect after-sales service. The company is mainly engaged in CNC Machines for angle steel tower, CNC Machines for steel structure ,CNC metal coil processing complete sets of equipment, like circle blanking line, cross-shear line, slitting line for hot-rolled and cold-rolled series plate. Design and manufacture of other non-standard equipment; design and manufacture of hydraulic and electric control systems; design and manufacture of special hydraulic machinery.
We have been engaged in design and development for many years and have a technical team with rich manufacturing experience, and have advanced production equipment as the backing.
We have a complete after-sales service network, which can provide you with full support from pre-sales to after-sales, so that you can get the most satisfactory equipment, to ensure that you solve all the problems you encounter in the most convenient and timely manner during use, and get our thoughtful services. Create your future with our technology and services.
Other products
FAQ
1. The delivery time?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. After-sale service?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Installation and Training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Model choose?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
