500kg/H 1000kg/H Complete Animal Feed Pellet Machine, Pellet Cooler Packaging Machine, Cattle Pig Poultry Production Mill Line

Product Description

500kg/H 1000kg/H Complete Animal Feed Pellet Machine,Pellet Cooler Packaging Machine,Cattle Pig Poultry Production Mill Line
Product Description
The pellet production line is not only used for feed and animal husbandry industry, but also used for fertilizer and biomass energy. It can be used for pig, cow, horse, sheep, livestock etc, and chicken, duck, goose, fish, rabbit, dove small plant breeding feed factory, and animal manure, sludge, biogas residue as organic fertilizer, inorganic fertilizer, compound fertilizer and other fertilizer granules.
Simple structure, wide applicability, small floor space, low noise Powder feed, do not add water or little water granulation can be carried out. The moisture content of pellets smaller, more conducive to storage. Grain hardness, surface finish, internal curing fully, can improve digestion and absorption of nutrients. So pathogenic microorganisms and parasites can be killed, be suitable for feeding rabbit, fish, duck and experimental animals. The models has1.5~20 various diameter dies, be suitable for granulation of different materials and get the best results. Be suitable for various materials, suppression effect can be guaranteed. Product Parameters
500kg/h feed pellet plant:
Raw Material - Hammer Mill - Feed Mixer - Feed Pellet Mill - Pellet Cooler - Controller

Technical Parameters of poultry feed production line
Machine Name	Model	Power	Capacity	Q'ty
Hammer Mill	9FQ-420	7.5KW	500 kg/h	1
Feed Mixer	FH-500	3KW	500 kg/h	1
Screw conveyor	LS-200	1.5KW	500 kg/h	1
Feed Pellet Mill	PM-300B	22KW	500 kg/h	1
Controller	BK-1	/	/	1

1000kg/h feed pellet plant:
Raw Material - Hammer Mill - Feed Mixer -Screw Conveyor - Feed Pellet Mill - Pellet Cooler - Bucket Elevator - Packing Machine - Electric Cabinet

Technical Parameters of Animal feed production line
Product Name	Model	Power	Capacity	Q'ty
Hammer Crusher	9FQ500-40	22KW	800-1000kg/h	1 set
Feed Mixer	WS-1000	5.5KW*2	800-1000kg/h	1 set
Screw Conveyor	LS-160-5	4KW	/	1 set
Feed Pellet Mill	PM-400B	30KW	800-1000kg/h	1 set
Pellet Cooler	LQJ-70	5.15KW	800-1000kg/h	1 set
Bucket elevator	QB-380	2.2KW	/	1 set
Packing Machine	DCS-50A	2.24KW	800-1000kg/h	1 set
Electric Cabinet	BK-1	380V/50Hz	/	1 set

Detailed Photos

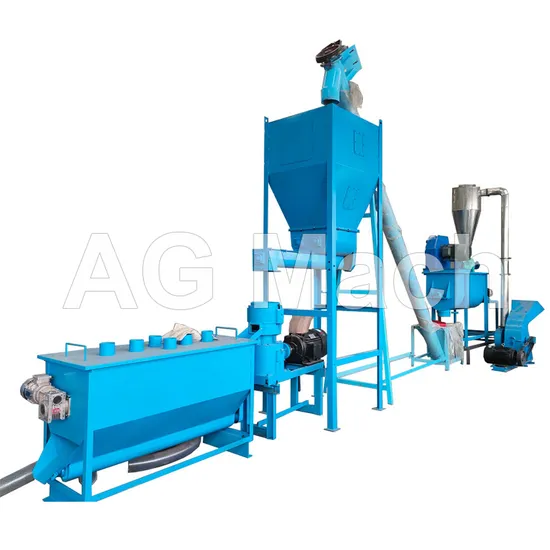

500kg/h feed pellet production line:
1000kg/h feed pellet production line:
This feed pellet machine is mainly used to make feed pellets for dog,cat ,cow,chicken,sheep,rabbit, pigeon, layer chicken, broiler, duck, goose, fish, pig and so on in feed factories, organic fertilizer factories.
A). For pig, the pellet diameter is usually ø3.5-6.5mm.B). For cattle, the pellet diameter is usually ø4.5-8mm.C). For chicken, pellet diameter is usually ø3.2mm.D). For fish, pellet diameter is usually ø2.0, ø2.5, ø3.0mm.
E). For shrimps, pellet diameter is usually ø1.0-ø3.5mm.
Feature
Main features of animal feed pellet plant:
* Simple structure, wide applicability, small floor space, low noise.
* Powder feed, do not add water or little water granulation can be carried out. The moisture content of pellets smaller, more conducive to storage.
* Grain hardness, surface finish, internal curing fully, can improve digestion and absorption of nutrients. So pathogenic
microorganisms and parasites can be killed, be suitable for feeding rabbit, fish, duck and experimental animals.
* The models has1.5~20 various diameter dies, be suitable for granulation of different materials and get the best results.
* Be suitable for various materials, suppression effect can be guaranteed.
Finished Product
Raw Material:
Final Production:
Packaging & Shipping
